Lightning protection, earthing and equipotential bonding for high-power charging
The lightning current is distributed in a controlled fashion over a large area through a low-impedance, interconnected earthing system, so that measures for the protection of people are ensured and dangerous surges can be reduced. Step and touch voltages that are dangerous to people are prevented through additional potential control in areas where people may be located.
DEHN lightning protection,
earthing and
equipotential bonding products
for high-power charging
You are ideally set up with us: We offer you a comprehensive, useful and harmonised complete range of products for lightning protection, earthing and equipotential bonding measures for high-power charging systems. For efficient planning, convenient purchasing, seamless, practical installation and ongoing maintenance.
/www.dehn.ae/store/f/50898539/HDVORSCHAU/819255.jpg)
819255
DEHNcon-H
HVI light Conductor in supporting tube. For safely maintaining separation distances.
/www.dehn.ae/store/f/53114070/HDVORSCHAU/618214.jpg)
618214

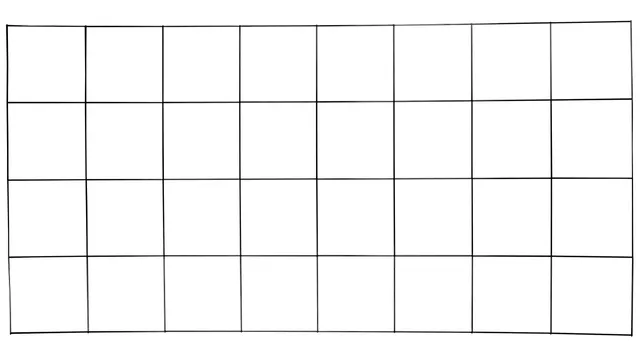

Potential control
Prevent dangerous step and touch voltages; e.g. using tested mesh mats.
/www.dehn.ae/store/f/52574291/HDVORSCHAU/620902_oben.jpg)
620902
Earth rod
Permanently corrosion-resistant due to StSt (V4A). For setting up earthing systems for down conductors or transformer stations.
/www.dehn.ae/store/f/51084811/HDVORSCHAU/610020.jpg)
610020
Connection clamps
Permanently corrosion-resistant connection clamps for the cross/parallel connection of earth rods.
/www.dehn.ae/store/f/52862089/HDVORSCHAU/556130.jpg)
556130

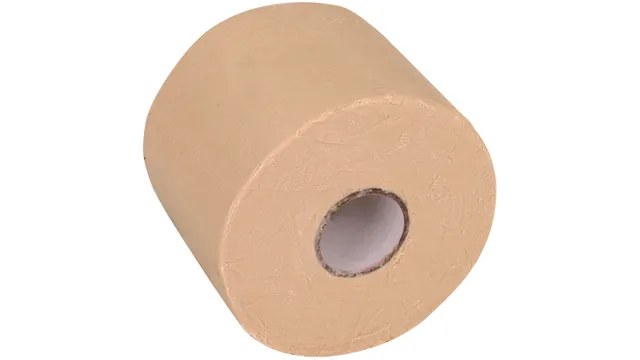

Anti-corrosion tape
For the enclosure of above/underground connections. UV-stabilised.
/www.dehn.ae/store/f/51041958/HDVORSCHAU/319209.jpg)
319209
Clamp connector
Cross unit for above-ground and underground connections of conductors in a cross and T arrangement.
/www.dehn.ae/store/f/52917570/HDVORSCHAU/860325.jpg)
860335

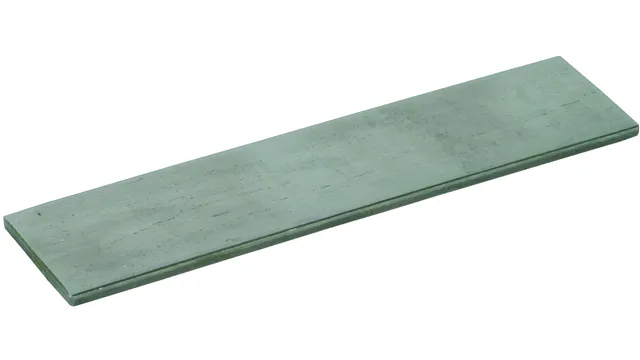

Strips
Flat bar for use in earthing systems, lightning protection systems and in ring equipotential bonding.
/www.dehn.ae/store/f/51184618/HDVORSCHAU/832320.jpg)
/www.dehn.ae/store/f/50884907/HDVORSCHAU/472227.jpg)
Downloads
If you need more information or another document format, we are ready to help you.
| Brochure | Properly protected – Safe charging | Protection concepts for the charging infrastructure of electric mobility | .pdf 2.3 MB |
| Brochure | DEHN protects intelligent power grids | Security of supply for today and tomorrow with lightning and surge protection | .pdf 3.8 MB |
| Brochure | DEHNconcept | Planning Service | .pdf 1.1 MB |
| Reference | DEHN protects. | AC coupled and scalable Li-Ion battery storage system "scalebloc" bei INTILION GmbH | .pdf 0.8 MB |
| White paper | Electromobility | Lightning and surge protection for electromobility | .pdf 3.4 MB |
| White Paper | Electromobility | Earthing and equipotential bonding measures for the charging infrastructure of electric mobility | .pdf 1.5 MB |
| White paper | Battery storage systems | Lightning and surge protection for battery storage systems | .pdf 2.4 MB |
DEHNconcept
Use DEHN engineering know-how for your projects. From a risk analysis to the planning of external lightning protection, earthing and surge protection concepts.
Help and support
We are happy to answer any questions you may have on the topic of the e-mobility.
