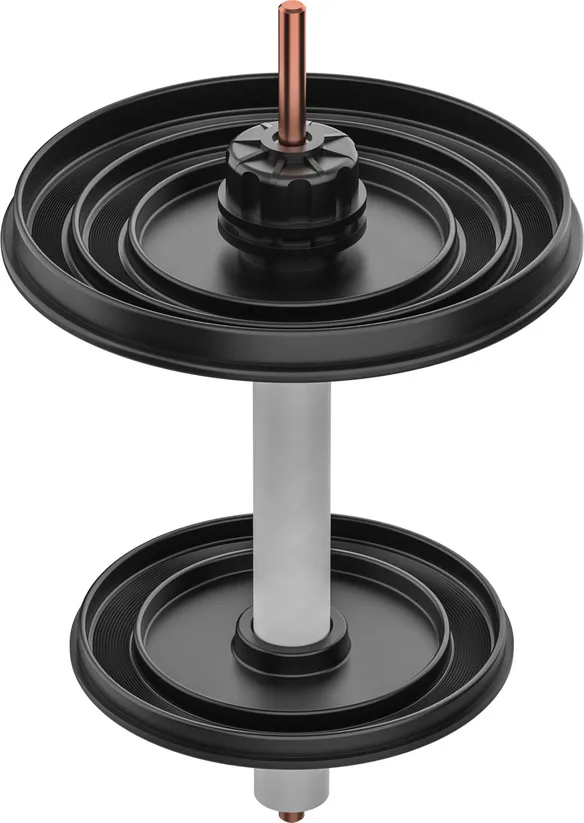

Earth Rod Seals

Earth Rod Seals create a watertight sealing of the Earth Rod installation, available in various sizes to acommodate our Earth Rod Portfolio

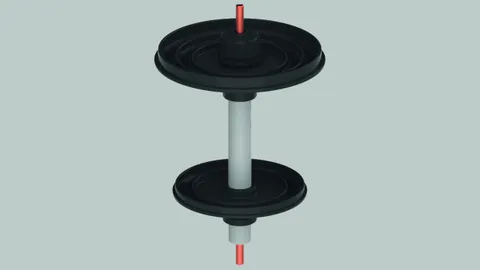

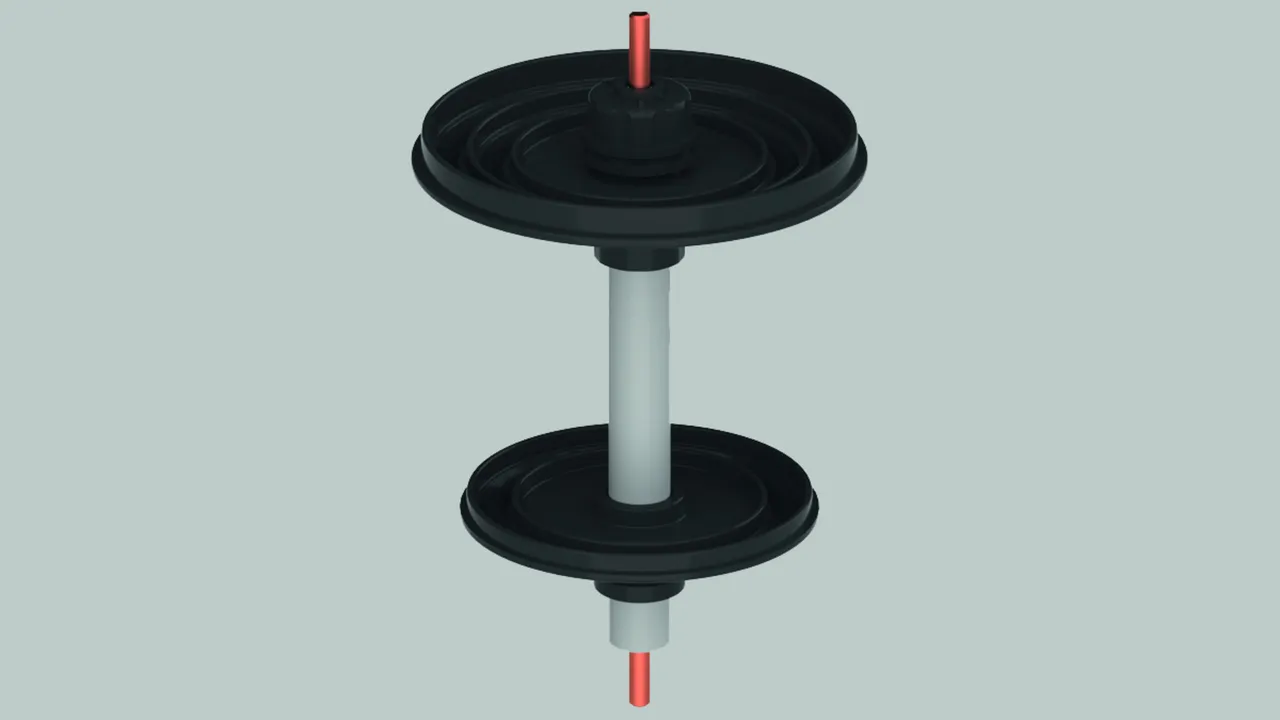

Double Flange

5 Products

Part No. 138315 ER SEAL 2FLANGE 5/8"PL

GTIN 4013364300415, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Material	High density Polyethylene
Rod Diameter	14.2 mm
Rod type	5/8" Copper Bonded Earth Rod

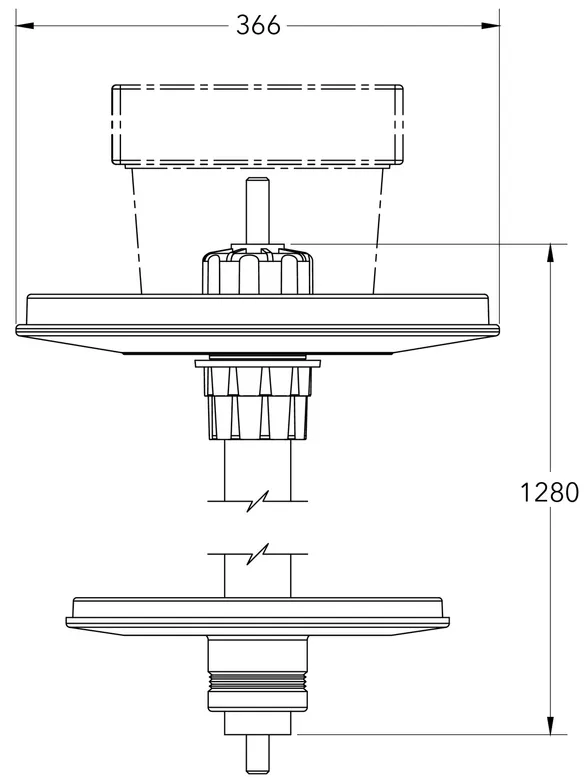

Dimensions (Ø x h)	366 x 1280 mm
Tube Dimensions (Ø x h)	50 x 1200 mm
Standards	IEC / EN / BS EN 62561-5
Assembly instructions	Refer Instructions (2211)
^{Note : Earth Rod to be purchased separately.}

Product 138315 was added to Notepad.

Go to Notepad

Product 138315 was added to the cart.

Go to Web-Shop

Part No. 138316 ER SEAL 2FLANGE 3/4"PL

GTIN 4013364300408, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Material	High density Polyethylene
Rod Diameter	17.2 mm
Rod type	3/4" Copper Bonded Earth Rod
Dimensions (Ø x h)	366 x 1280 mm
Tube Dimensions (Ø x h)	50 x 1200 mm
Standards	IEC / EN / BS EN 62561-5
Assembly instructions	Refer Instructions (2211)
^{Note : Earth Rod to be purchased separately.}

Product 138316 was added to Notepad.

Go to Notepad

Product 138316 was added to the cart.

Go to Web-Shop

Part No. 138320 ER SEAL 2FLANGE 15 PL

GTIN 4013364300392, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Material	High density Polyethylene
Rod Diameter	15 mm
Rod type	Copper / Nickel plated copper
Dimensions (Ø x h)	366 x 1280 mm
Tube Dimensions (Ø x h)	50 x 1200 mm
Standards	IEC / EN / BS EN 62561-5
Assembly instructions	Refer Instructions (2211)
^{Note : Earth Rod to be purchased separately.}

Product 138320 was added to Notepad.

Go to Notepad

Product 138320 was added to the cart.

Go to Web-Shop

Part No. 138321 ER SEAL 2FLANGE 16 PL

GTIN 4013364300385, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Material	High density Polyethylene
Rod Diameter	16 mm
Rod type	Copper / Nickel plated copper / Stainless steel
Dimensions (Ø x h)	366 x 1280 mm
Tube Dimensions (Ø x h)	50 x 1200 mm
Standards	IEC / EN / BS EN 62561-5
Assembly instructions	Refer Instructions (2211)
^{Note : Earth Rod to be purchased separately.}

Product 138321 was added to Notepad.

Go to Notepad

Product 138321 was added to the cart.

Go to Web-Shop

Part No. 138322 ER SEAL 2FLANGE 20 PL

GTIN 4013364300378, Customs tariff No. (EU): 85389000, Gross weight: 2.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Material	High density Polyethylene
Rod Diameter	20 mm
Rod type	Copper / Nickel plated copper / Stainless steel
Dimensions (Ø x h)	366 x 1280 mm
Tube Dimensions (Ø x h)	50 x 1200 mm
Standards	IEC / EN / BS EN 62561-5
Assembly instructions	Refer Instructions (2211)
^{Note : Earth Rod to be purchased separately.}

Product 138322 was added to Notepad.

Go to Notepad

Product 138322 was added to the cart.

Go to Web-Shop
