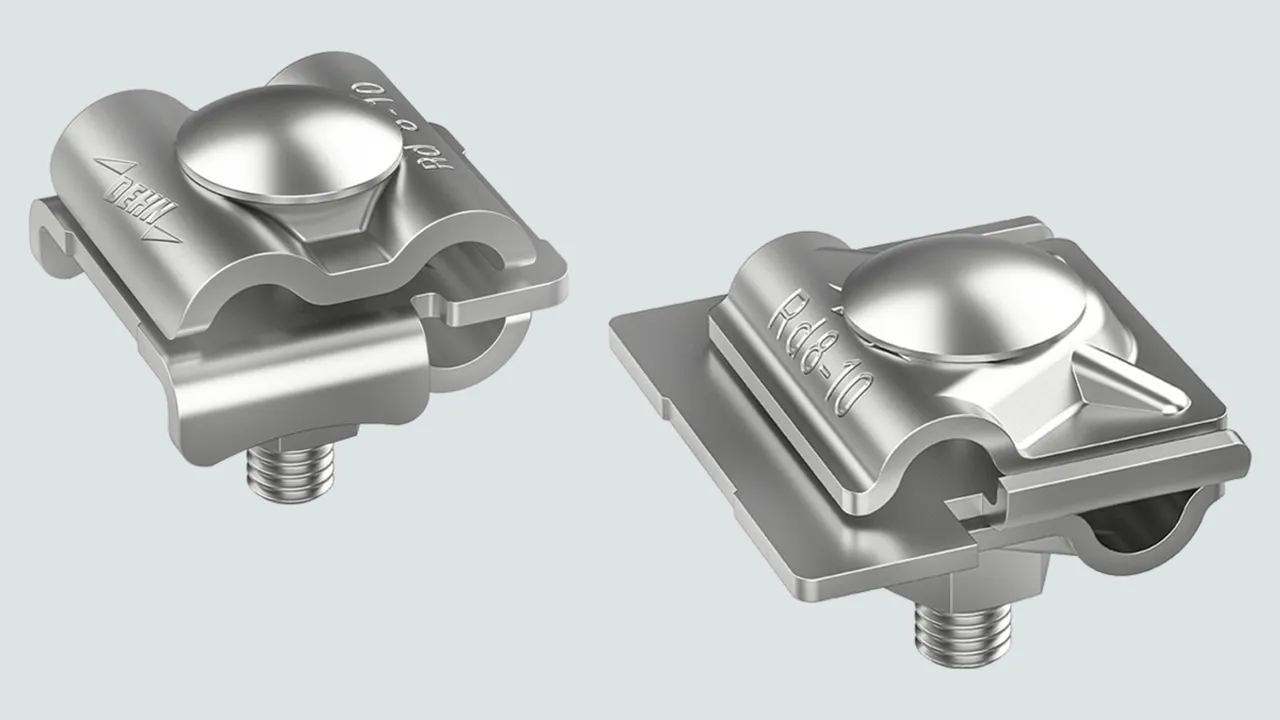

Multi-purpose connecting clamp

For the secure connection of round and flat conductors as well as seam connections.
The multi-purpose connecting clamps enable flexible assembly and ensure a reliable connection.

with clamping piece and double clamp

1 Product

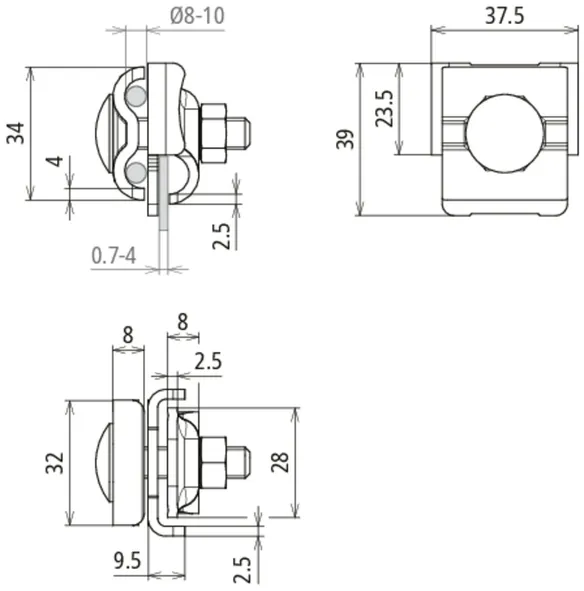

Part No. 365018 FK KB DUL 6.10 KBF0.7 4 V2A

GTIN 4013364535428, Customs tariff No. (EU): 85359000, Gross weight: 108.00 g, PU: 50.00 pc(s)

Images

Additional information

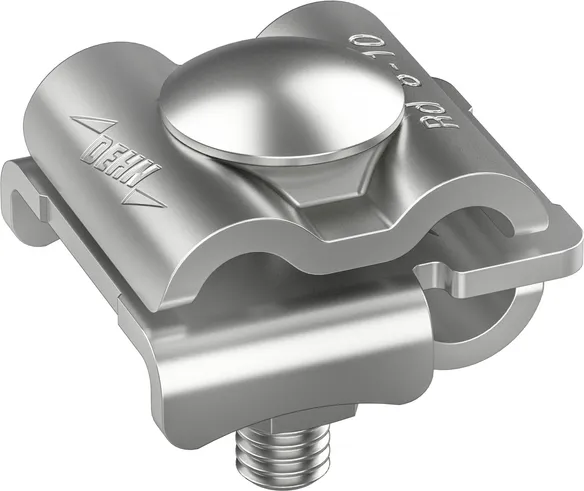

Seam clamp with clamping piece and double clamp, stainless steel
Seam clamps for connecting conductors with seams
Clamping range of seam: 0.7-4 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connecting direction: lengthwise / crosswise
Standard: EN 62561-1

Brand: DEHN
Type: FK KB DUL 6.10 KBF0.7 4 V2A
Part No.: 365018
or equivalent.



Technical data

Clamping range of seam 0.7-4 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1

Product 365018 was added to Notepad.

Go to Notepad

Product 365018 was added to the cart.

Go to Web-Shop

with enlarged contact surface

1 Product

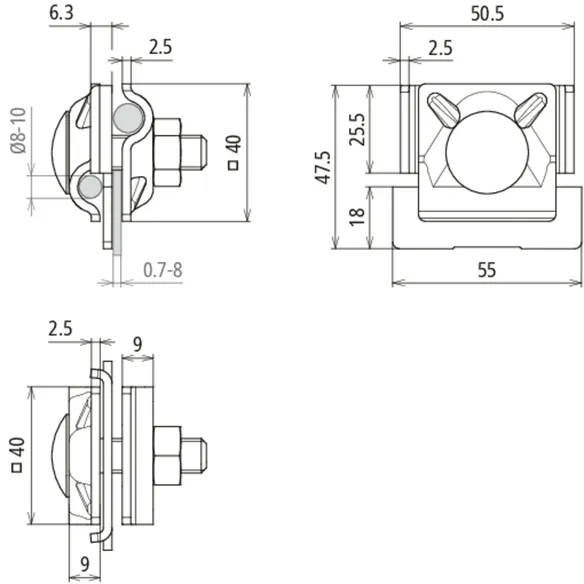

Part No. 365228 FK MV 8.10 KBF0.7 8 V2A

GTIN 4013364535411, Customs tariff No. (EU): 85359000, Gross weight: 157.00 g, PU: 50.00 pc(s)

Images

Additional information

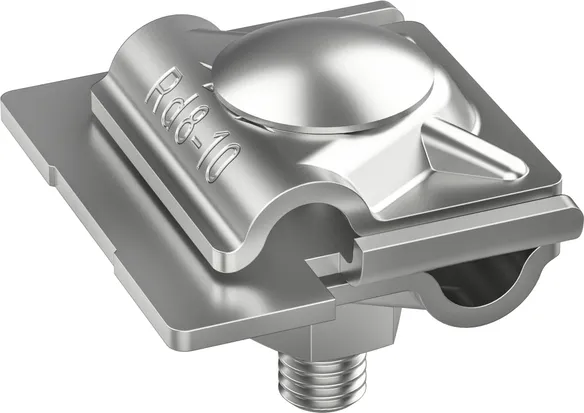

Seam clamp with enlarged contact surface (straight), stainless steel
Seam clamps with enlarged contact surface, version with a contact surface of 10 cm2 contact surface
Clamping range of seam: 0.7-8 mm
Material of clamp: StSt
Clamping range Rd: 8-10 mm
Connecting direction: lengthwise / crosswise
Connection with: clamp
Standard: EN 62561-1

Brand: DEHN
Type: FK MV 8.10 KBF0.7 8 V2A
Part No.: 365228
or equivalent.



Technical data

Clamping range of seam 0.7-8 mm
Material of clamp StSt
Clamping range Rd 8-10 mm
Standard EN 62561-1
