Protection module for DEHNventil modular

  • High discharge capacity due to powerful creepage discharge spark gap
  • Maximum system availability due to RADAX Flow follow current limitation

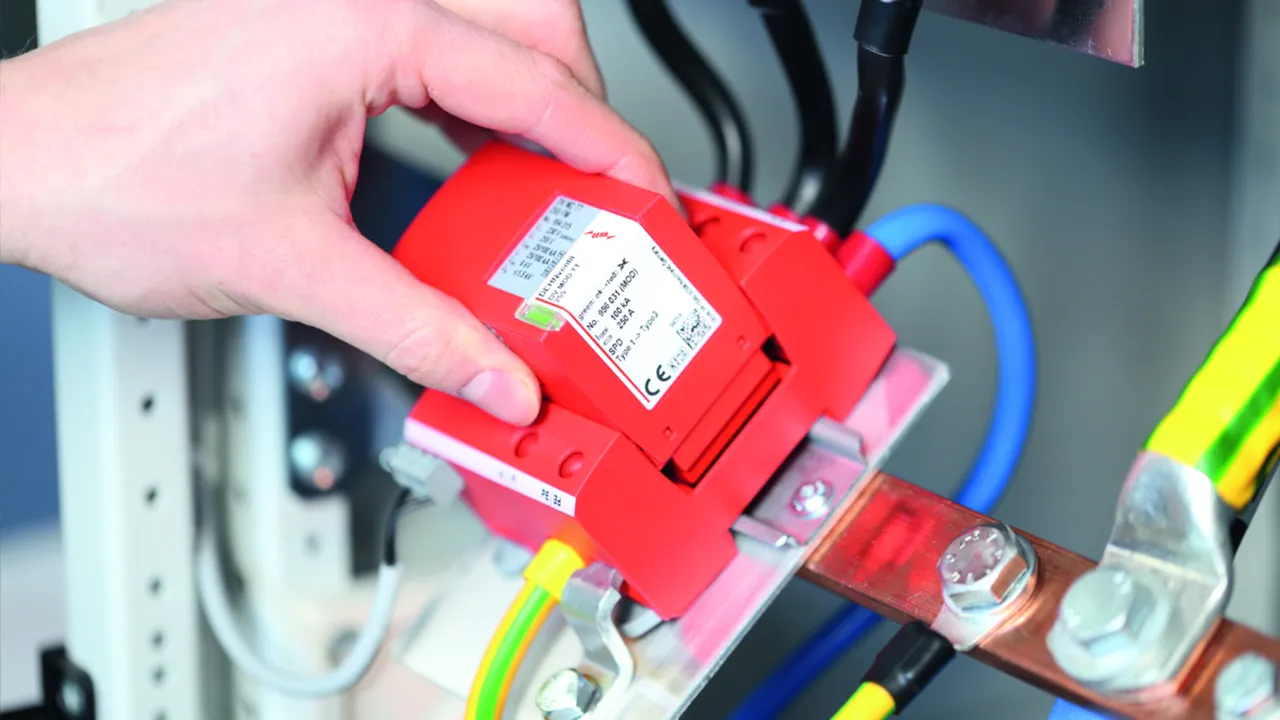

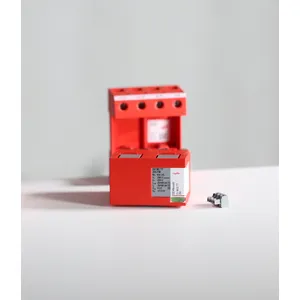

  • Easy replacement of protection modules without tools due to module locking system with module release button
  • Operating state/fault indication with green-red marking in the inspection window
In multipole protective circuits, we recommend replacing the complete set of protection modules when one module fails.

Details

lorem ipsum

RAC Spark Gap Protection Module

RAC spark-gap-based protection modules

5 Products

Part No. 956030 DV MOD TNC 255

GTIN 4013364510609, Customs tariff No. (EU): 85363090, Gross weight: 269.21 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

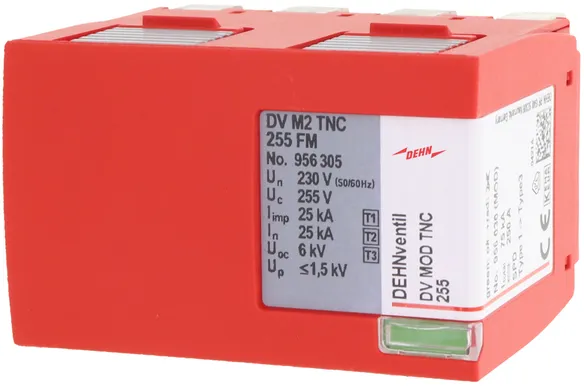

Spark-gap-based protection module, DV MOD TNC 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 75 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TNC 255
Part No.: 956030
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 75 kA

Product 956030 was added to Notepad.

Go to Notepad

Product 956030 was added to the cart.

Go to Web-Shop

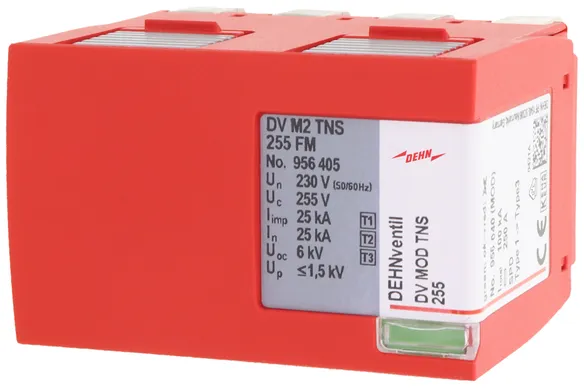

Part No. 956040 DV MOD TNS 255

GTIN 4013364510593, Customs tariff No. (EU): 85363090, Gross weight: 333.70 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

DV MOD TNS 255 spark-gap-based protection module
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TNS 255
Part No.: 956040
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

Product 956040 was added to Notepad.

Go to Notepad

Product 956040 was added to the cart.

Go to Web-Shop

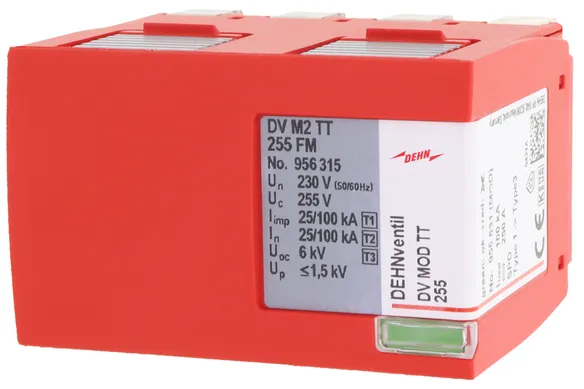

Part No. 956031 DV MOD TT 255

GTIN 4013364410275, Customs tariff No. (EU): 85363090, Gross weight: 346.83 g, PU: 1.00 pc(s)

Images

Additional information

DV MOD TT 255 spark-gap-based protection module
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 100 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TT 255
Part No.: 956031
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

Product 956031 was added to Notepad.

Go to Notepad

Product 956031 was added to the cart.

Go to Web-Shop

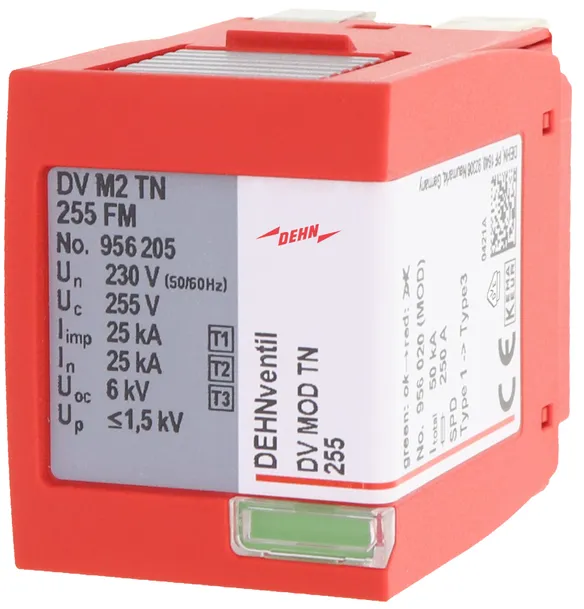

Part No. 956020 DV MOD TN 255

GTIN 4013364510616, Customs tariff No. (EU): 85363090, Gross weight: 173.30 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Spark-gap-based protection module, DV MOD TN 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kA
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TN 255
Part No.: 956020
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

Product 956020 was added to Notepad.

Go to Notepad

Product 956020 was added to the cart.

Go to Web-Shop

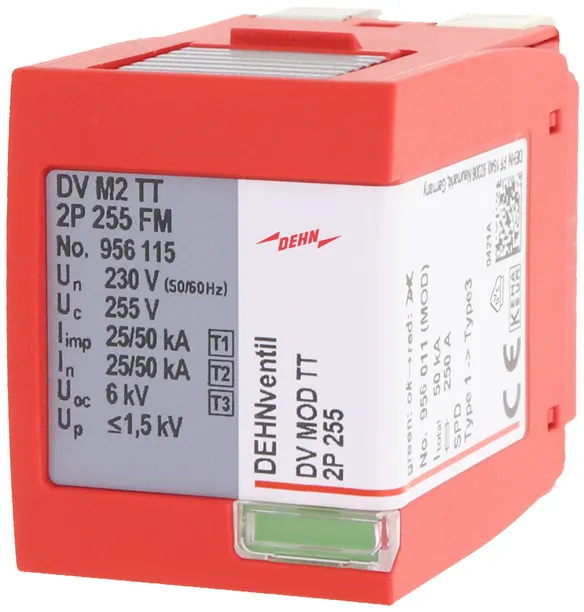

Part No. 956011 DV MOD TT 2P 255

GTIN 4013364400887, Customs tariff No. (EU): 85363090, Gross weight: 191.83 g, PU: 1.00 pc(s)

Images

Additional information

Spark-gap-based protection module, DV MOD TT 2P 255
Spark-gap-based mains protection module for type 1 + type 2 + type 3
Arresters of the Red/Line series acc. to EN 61643-11
Heavy-duty RAC spark gap
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 255 V AC
Lightning impulse current: 50 kAeff (prosp.)
Certified to VDE, KEMA

Brand: DEHN
Type: DV MOD TT 2P 255
Part No.: 956011
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 956011 was added to Notepad.

Go to Notepad

Product 956011 was added to the cart.

Go to Web-Shop

Spark-Gap-Based Protection Module

Spark-gap-based protection module for DEHNventil M ...

1 Product

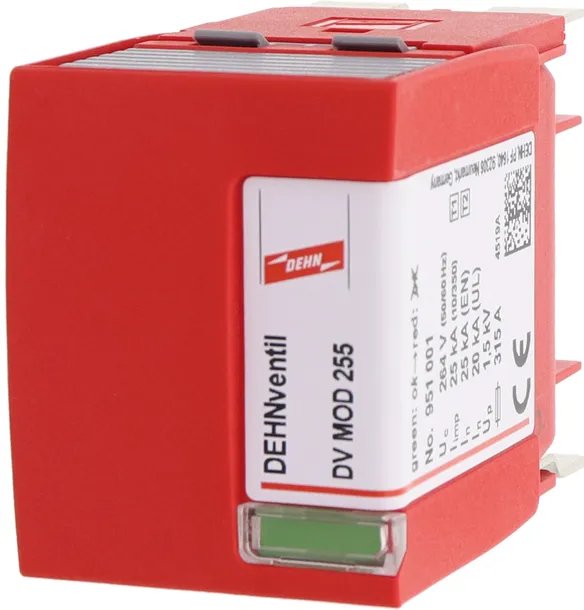

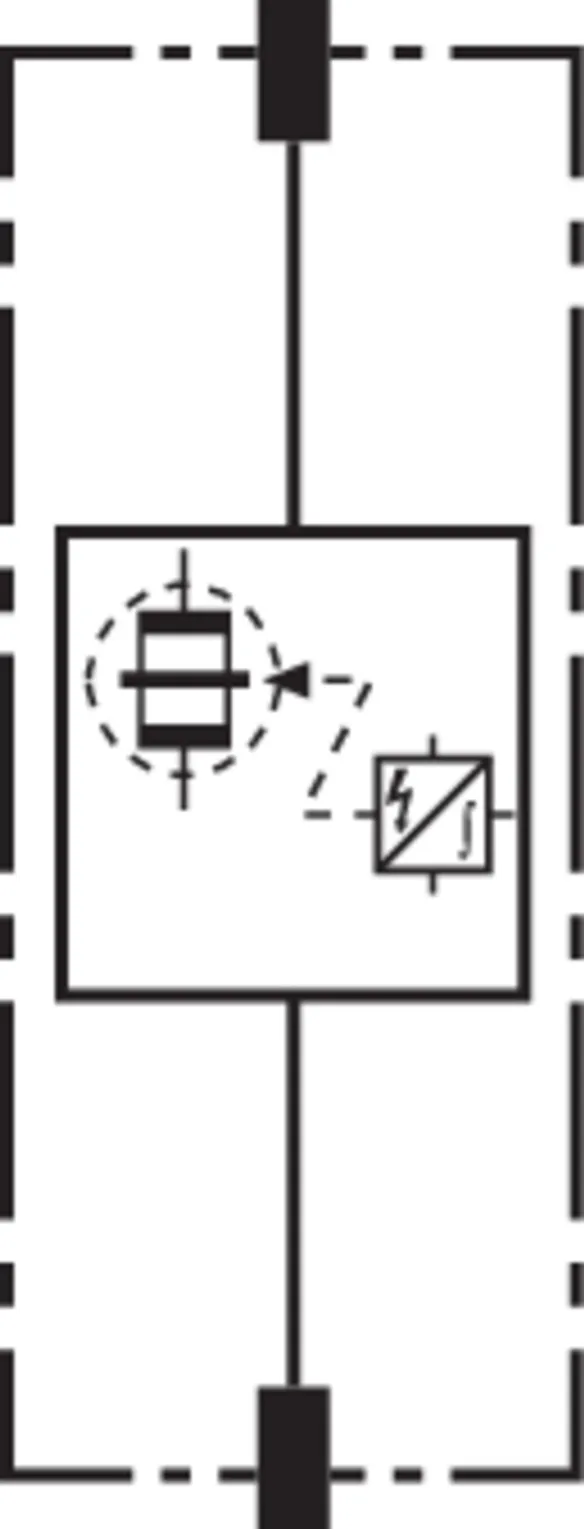

Part No. 951001 DV MOD 255

GTIN 4013364108066, Customs tariff No. (EU): 85363090, Gross weight: 204.00 g, PU: 1.00 pc(s)

Images

Additional information

Spark-gap-based protection module DV MOD 255
Spark-gap-based protection module for type 1 + type 2
Arresters of the Red/Line series acc. to EN 61643-11
Maximum system availability due to
RADAX Flow follow current limitation.
Fault indication by green and red indicator
flag in the inspection window
Max. continuous operating voltage: 264 V AC
Lightning impulse current: 25 kA

Brand: DEHN
Type: DV MOD 255
Part No.: 951001
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 264 V
Lightning impulse current (10/350 µs) (Iimp ) 25 kA

Product 951001 was added to Notepad.

Go to Notepad

Product 951001 was added to the cart.

Go to Web-Shop

N-PE Spark-Gap-Based Protection Module

N-PE spark-gap-based protection module for DEHNventil M ... with ... + 1 configuration.

2 Products

Part No. 951050 DV MOD NPE 50

GTIN 4013364108073, Customs tariff No. (EU): 85363030, Gross weight: 182.60 g, PU: 1.00 pc(s)

Images

Additional information

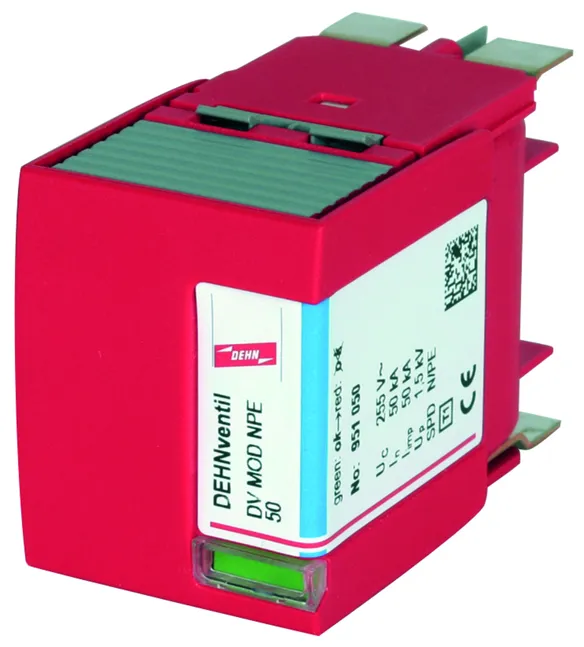

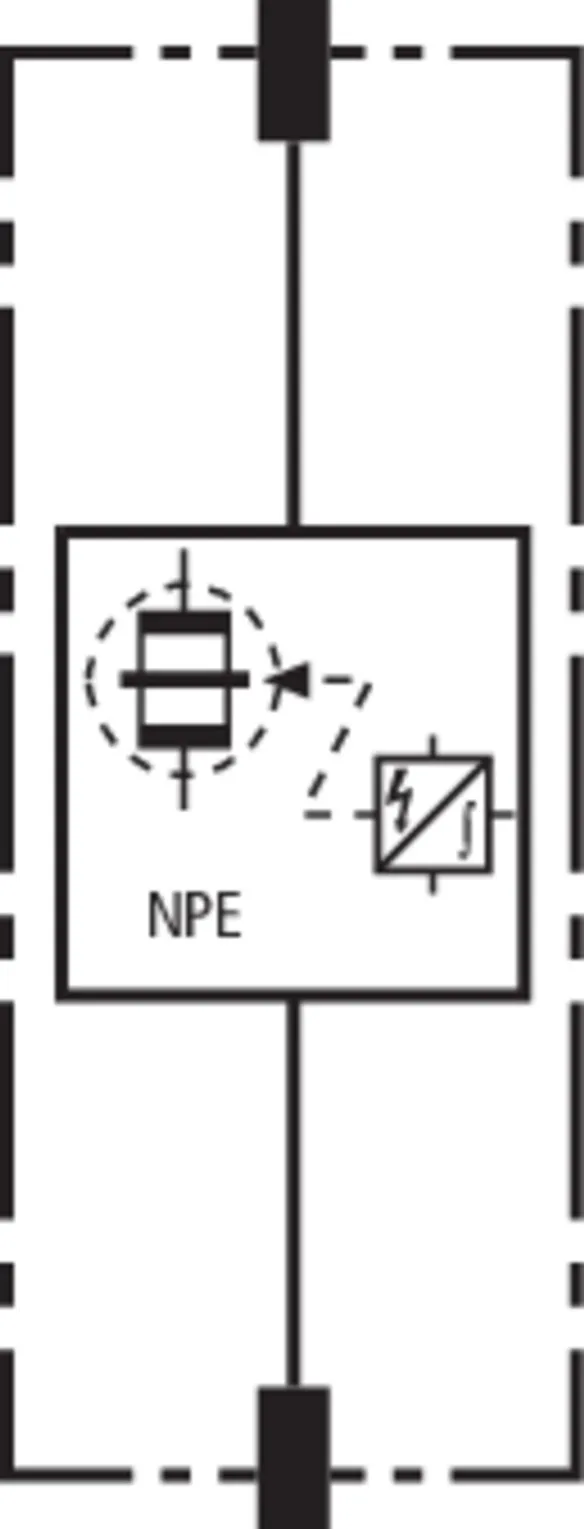

DV MOD NPE 50 N-PE spark-gap-based protection module
50 kA N-PE spark-gap-based protection module
for type 1 N-PE surge arresters
of the Red/Line family acc. to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 50 kA

Brand: DEHN
Type: DV MOD NPE 50
Part No.: 951050
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 50 kA

Product 951050 was added to Notepad.

Go to Notepad

Product 951050 was added to the cart.

Go to Web-Shop

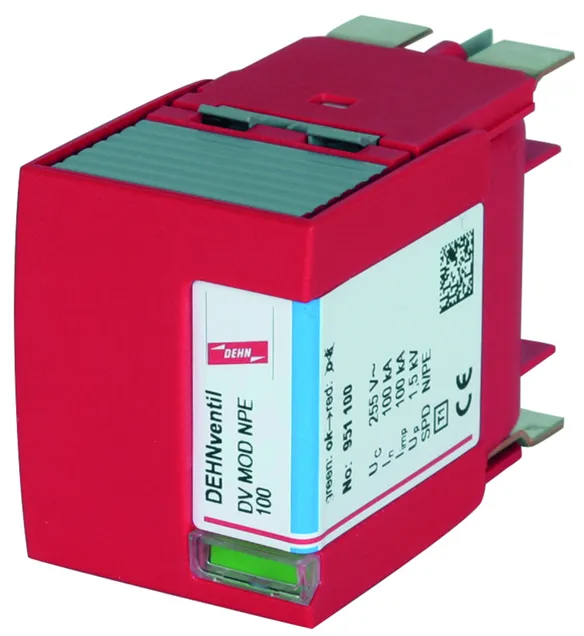

Part No. 951100 DV MOD NPE 100

GTIN 4013364108080, Customs tariff No. (EU): 85363030, Gross weight: 183.00 g, PU: 1.00 pc(s)

Images

Additional information

DV MOD NPE 100 N-PE spark-gap-based protection module
100 kA N-PE spark-gap-based protection module
for type 1 N-PE surge arresters of the
Red/Line product series acc. to EN 61643-11
Max. continuous operating voltage: 255 V a.c.
Lightning impulse current: 100 kA

Brand: DEHN
Type: DV MOD NPE 100
Part No.: 951100
or equivalent.

Certificates



Technical data

Max. continuous operating voltage (a.c.) (UC ) 255 V
Lightning impulse current (10/350 µs) (Iimp ) 100 kA

Product 951100 was added to Notepad.

Go to Notepad

Product 951100 was added to the cart.

Go to Web-Shop
