Phase Connecting Elements for Overhead Lines

For connecting the phase cables of single-pole and three-pole earthing and short-circuiting devices to overhead lines
With coupling aid for safe attachment on conductor cables
Easy coupling due to spring-loaded clamp
Anti-rotation protection type PK1 or PK2 and long threaded T pin shaft
Earthing and short-circuiting devices can be configured online via the earthing and short-circuiting configurator

Details

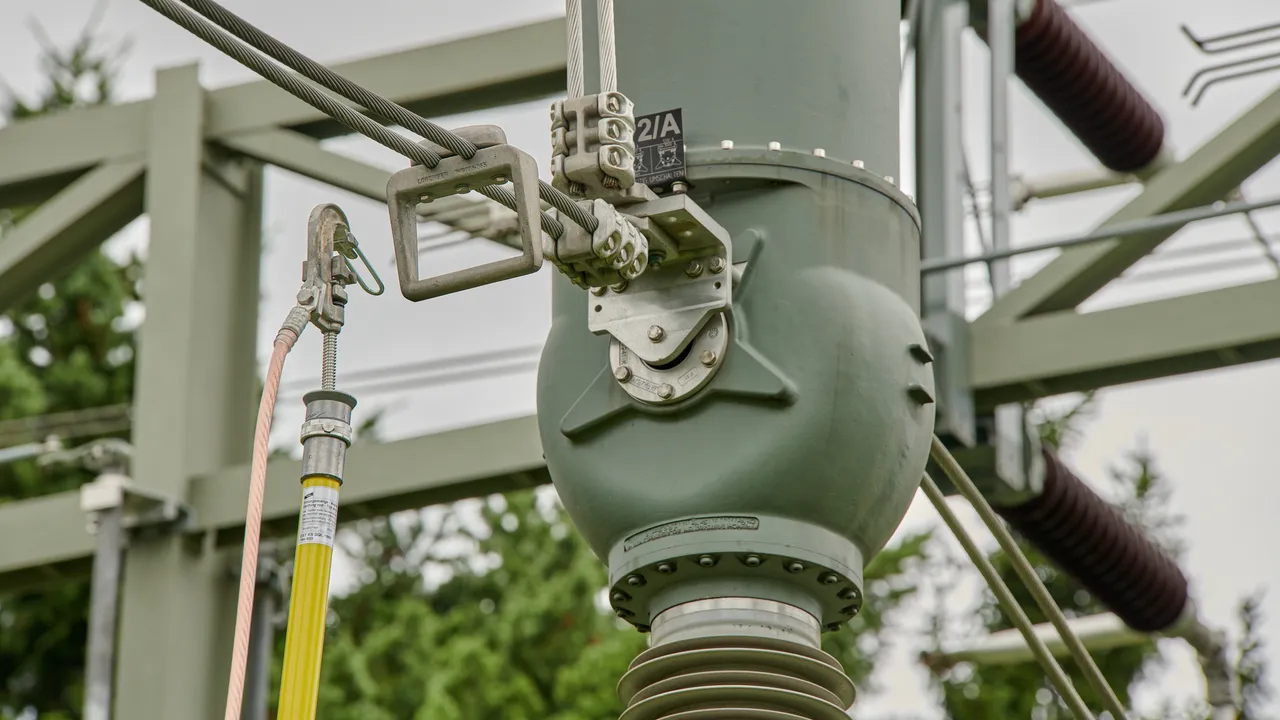

Phase screw clamp fitted with fixed coupling aid allows safe coupling.

lorem ipsum — Phase screw clamp fitted with fixed coupling aid allows safe coupling.

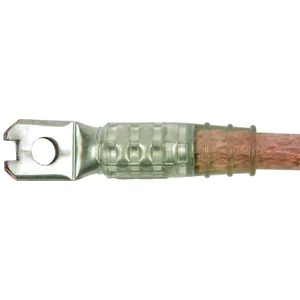

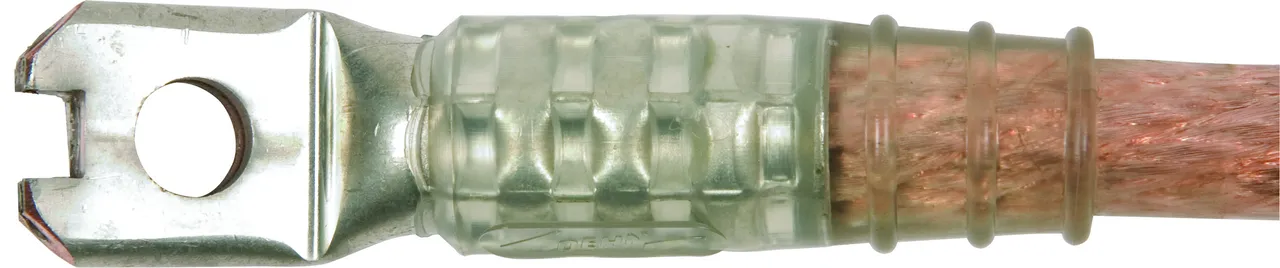

Crimped cable lug, type **PK1**:
Standard anti-rotation cable lug with cut-out.

Clamp with long shaft and earthing stick with aluminium cone coupling.

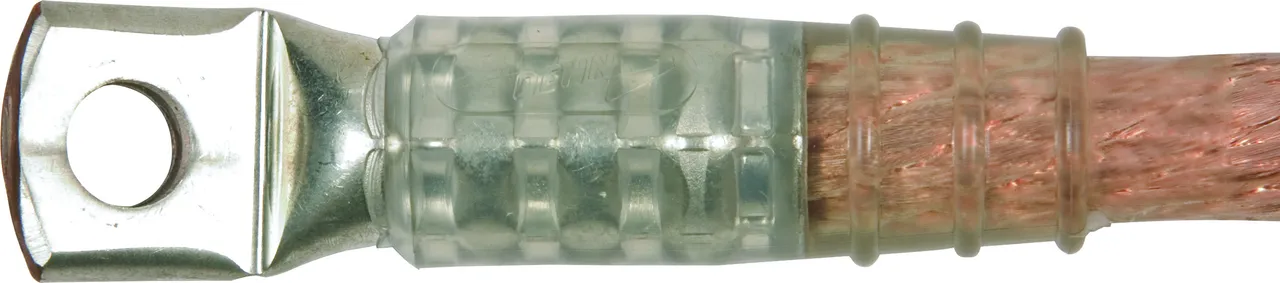

Crimped cable lug, type **PK2**:
Cable lugs without cut-out for connecting parts from other manufacturers are available on request.

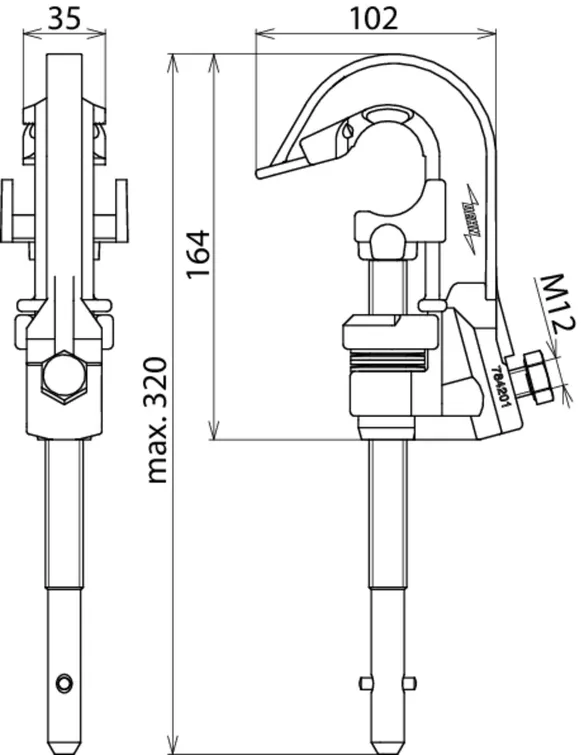

Standard Phase Screw Clamp

Short-circuit-proof, even if the conductor cables are corroded due to weathering.

2 Products

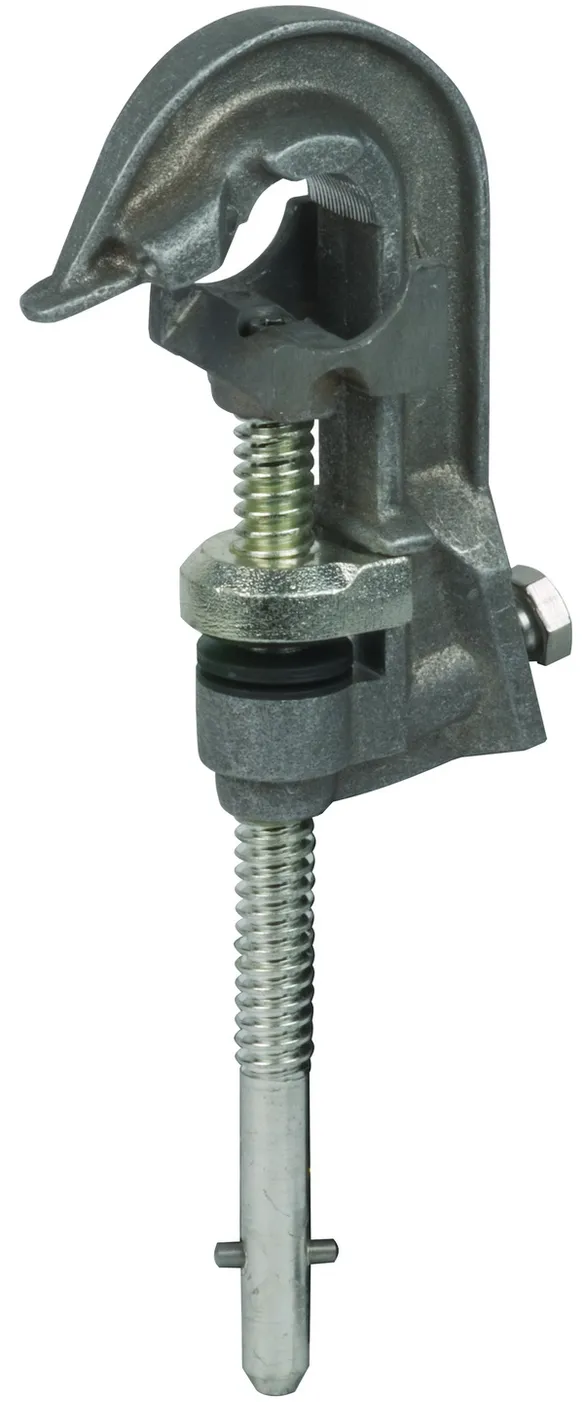

Part No. 784201 PSK 4 30 SQL

GTIN 4013364006591, Customs tariff No. (EU): 85359000, Gross weight: 880.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	4 ... 30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Clamping range Ø	4 ... 30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	Copper alloy/gal Sn

Product 784201 was added to Notepad.

Go to Notepad

Product 784201 was added to the cart.

Go to Web-Shop

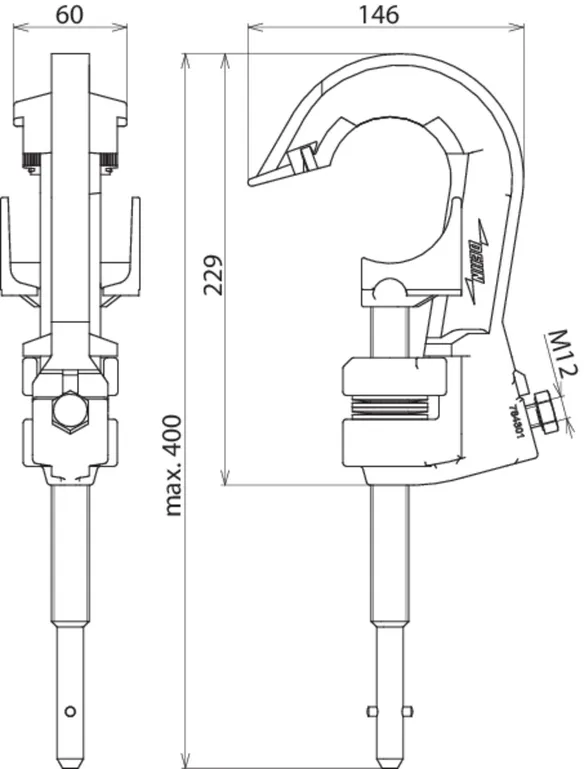

Part No. 784301 PSK 10 65 SQL

GTIN 4013364006553, Customs tariff No. (EU): 85359000, Gross weight: 1.70 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	10 ... 65 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Clamping range Ø	10 ... 65 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	Copper alloy/gal Sn

Product 784301 was added to Notepad.

Go to Notepad

Product 784301 was added to the cart.

Go to Web-Shop

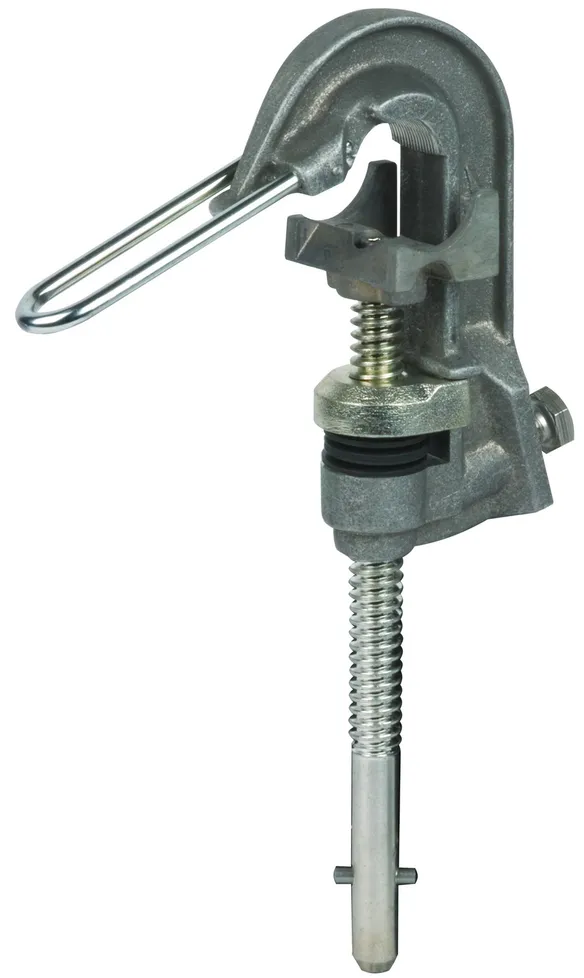

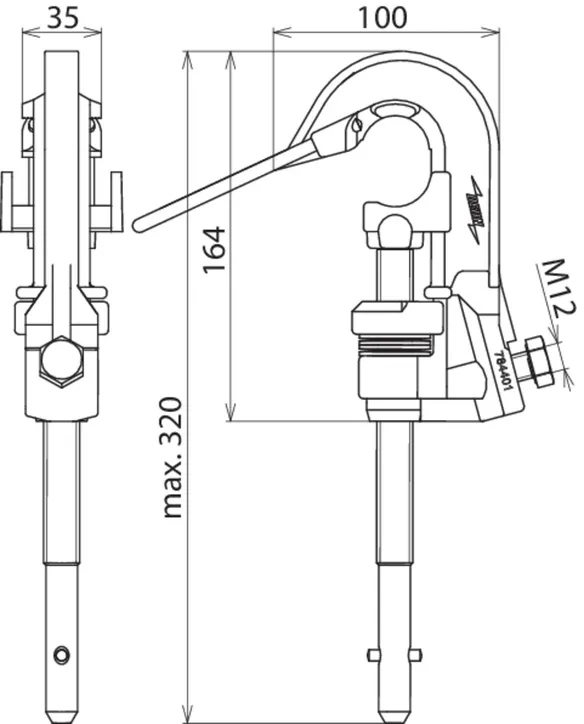

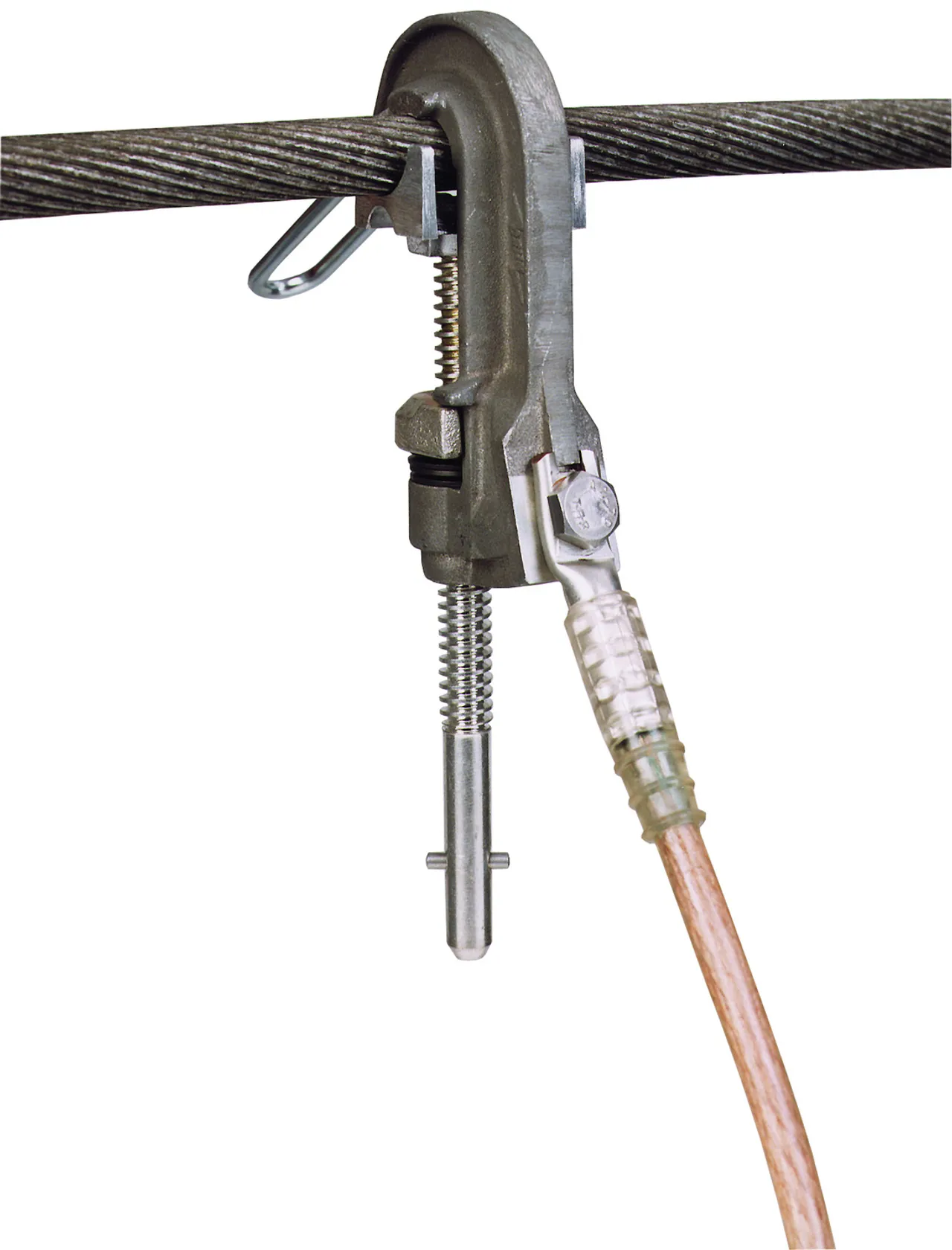

Phase Screw Clamp with Coupling Aid

Short-circuit-proof, even if the conductor cables are corroded due to weathering.

2 Products

Part No. 784401 PSK 4 30 SQL EH

GTIN 4013364006614, Customs tariff No. (EU): 85359000, Gross weight: 1.47 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	4 ... 30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Clamping range Ø	4 ... 30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	Copper alloy/gal Sn
Material (coupling aid)	St/gal Zn

Product 784401 was added to Notepad.

Go to Notepad

Product 784401 was added to the cart.

Go to Web-Shop

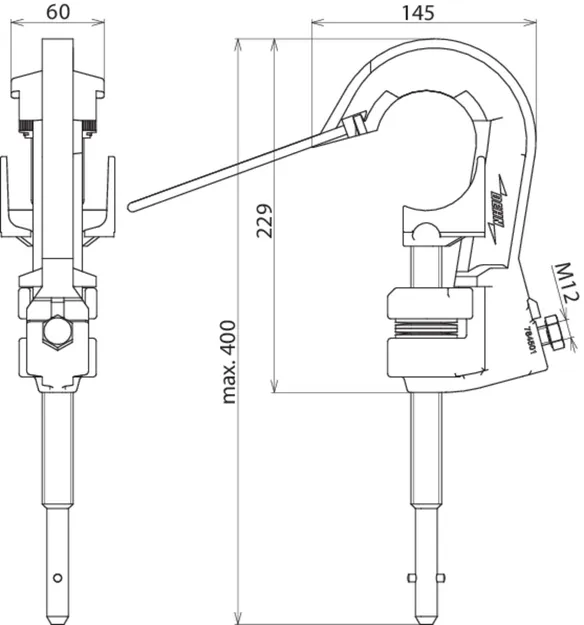

Part No. 784501 PSK 10 65 SQL EH

GTIN 4013364006560, Customs tariff No. (EU): 85359000, Gross weight: 2.12 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	10 ... 65 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

Clamping range Ø	10 ... 65 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	Copper alloy/gal Sn
Material (coupling aid)	St/gal Zn

Product 784501 was added to Notepad.

Go to Notepad

Product 784501 was added to the cart.

Go to Web-Shop

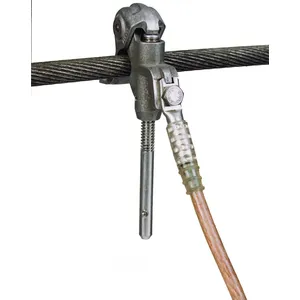

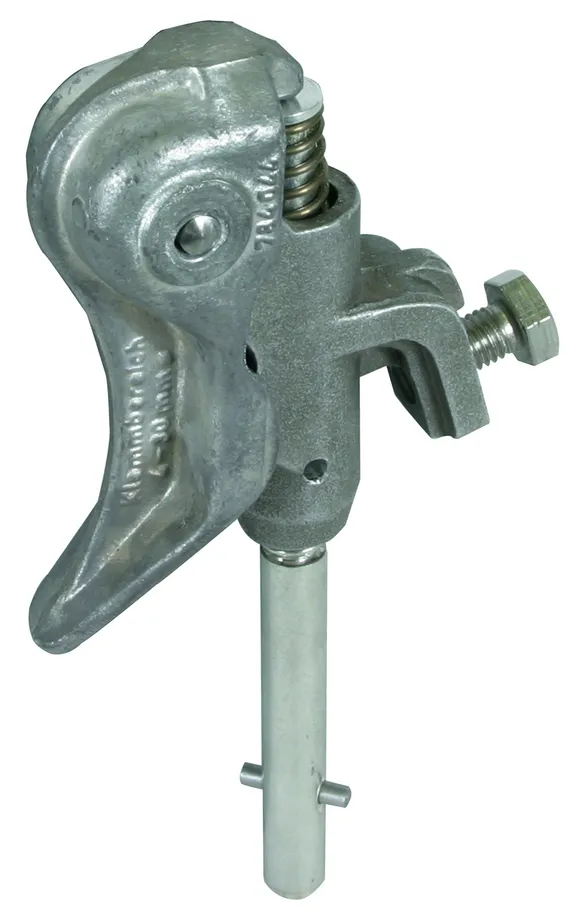

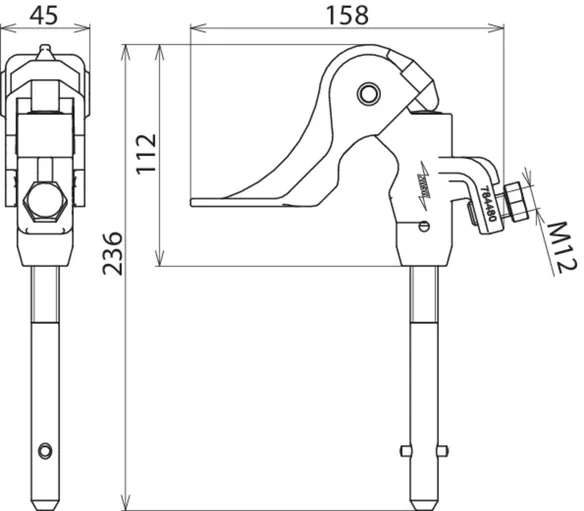

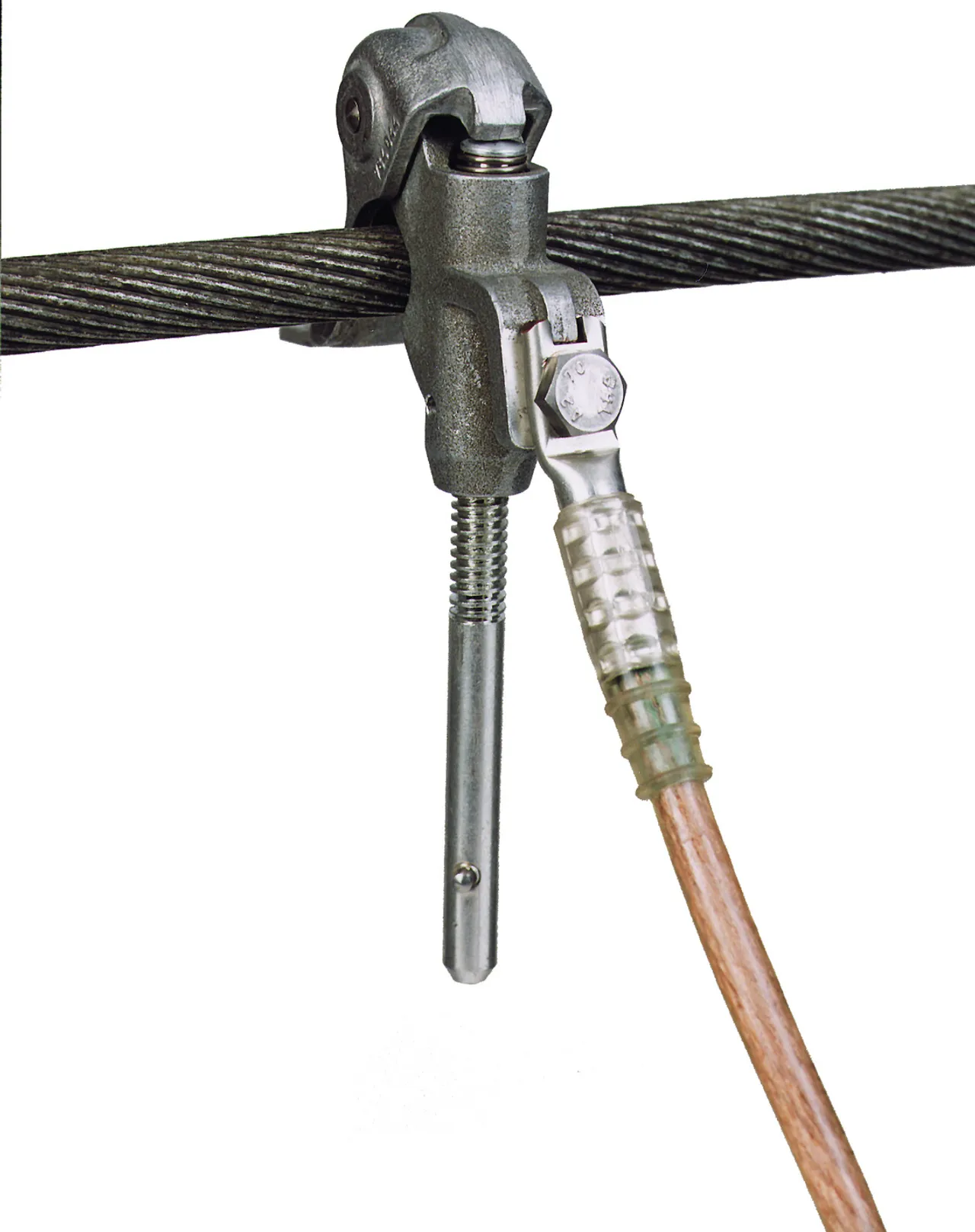

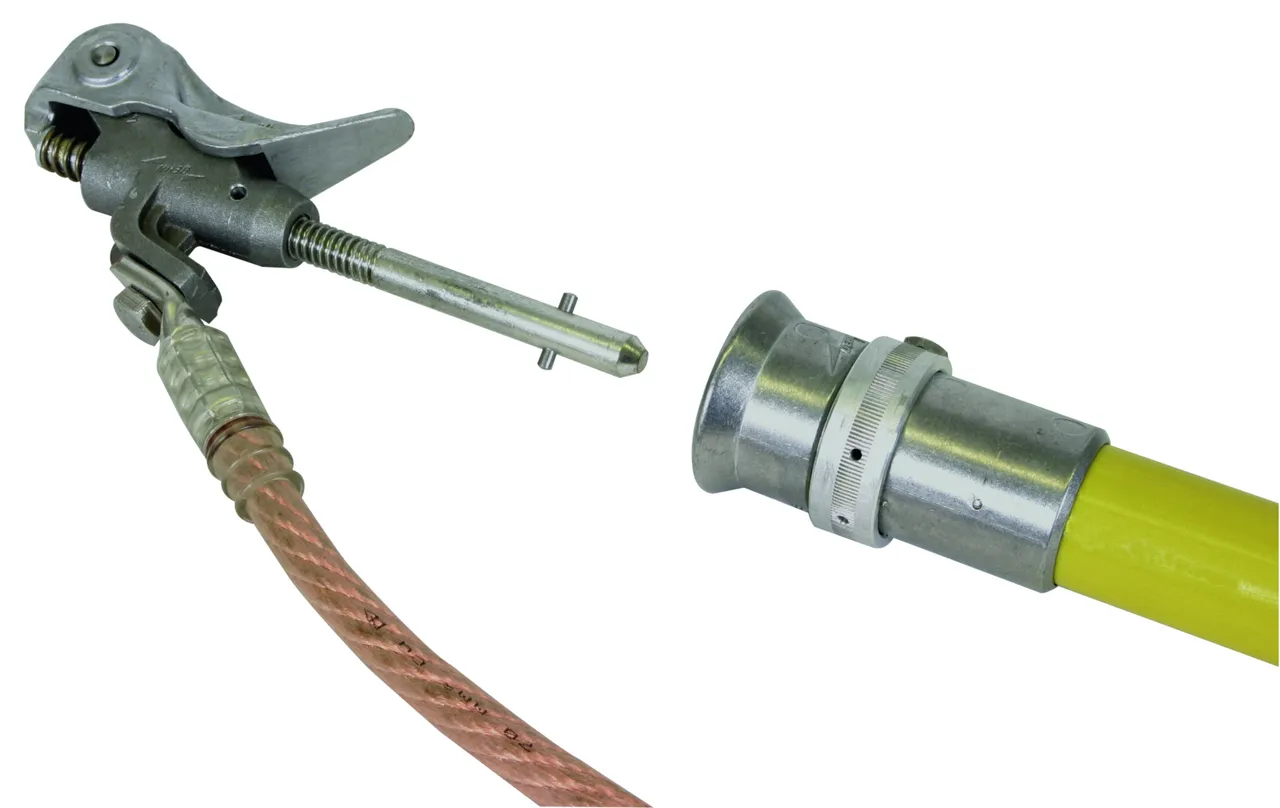

Spring-loaded Phase Screw Clamp

Easy coupling due to spring-loaded clamp.

1 Product

Part No. 784480 PSK FV 4 30 SQL

GTIN 4013364054479, Customs tariff No. (EU): 85359000, Gross weight: 600.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	4 ... 30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA

Clamping range Ø	4 ... 30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 70 mm²
Max. short-circuit current I_k0.5 s	19.5 kA
Max. short-circuit current I_k1 s	13.8 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	Copper alloy/gal Sn

Product 784480 was added to Notepad.

Go to Notepad

Product 784480 was added to the cart.

Go to Web-Shop

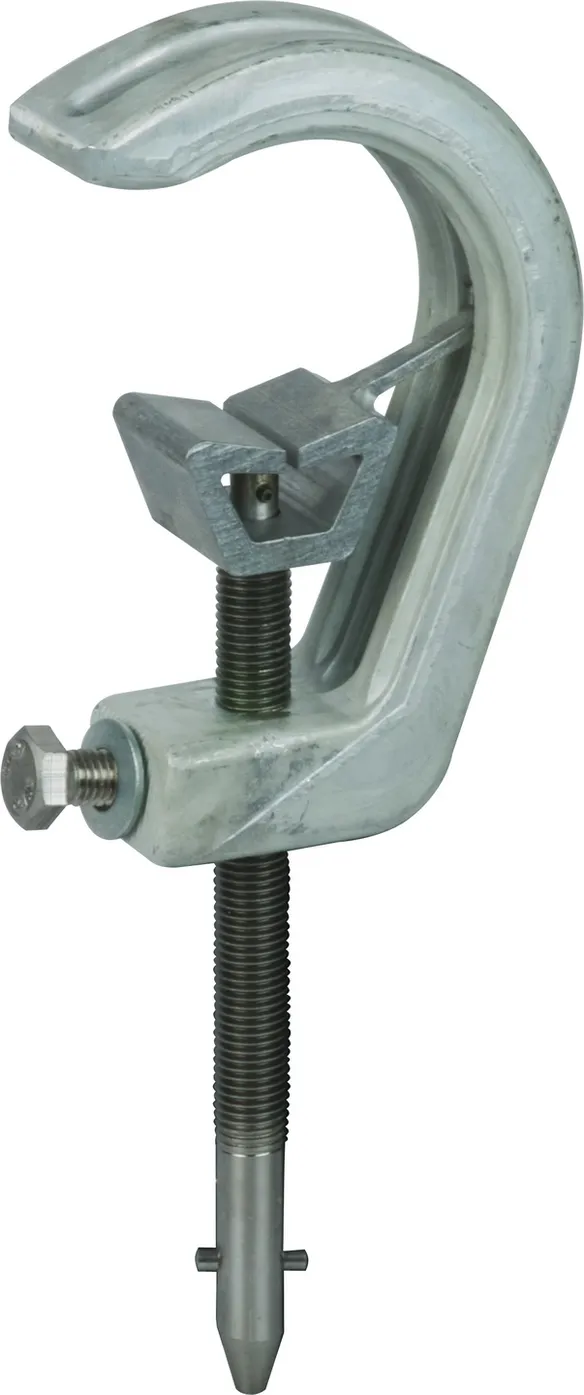

Phase Screw Clamp with Wide Clamping Range

Ideally suited for use with Al and Al/St conductor cables, pipes and fixed phase points.

1 Product

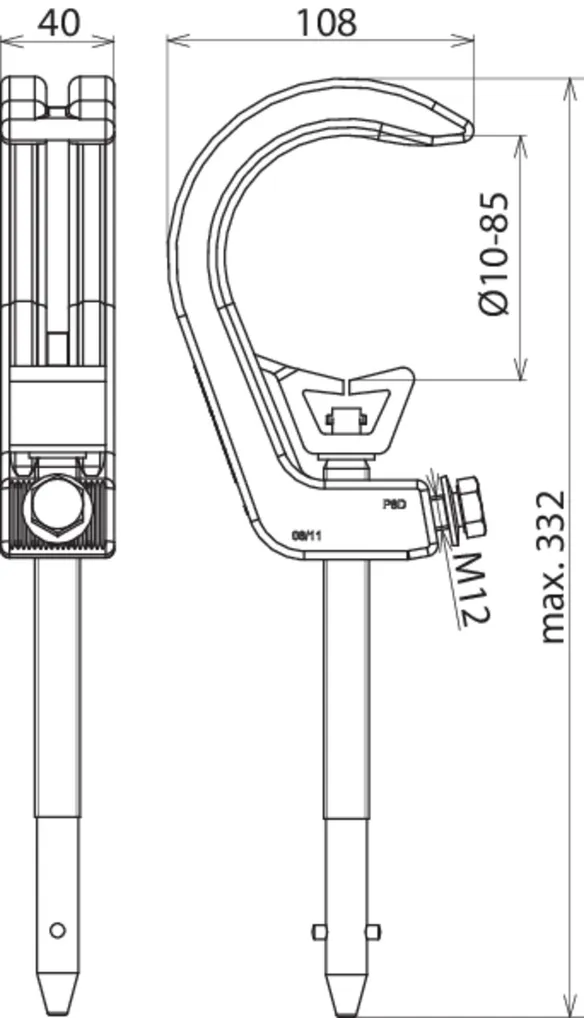

Part No. 784085 PSK 10 85 SQL

GTIN 4013364018686, Customs tariff No. (EU): 85359000, Gross weight: 872.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	10 ... 85 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 150 mm²
Max. short-circuit current I_k0.5 s	29.6 kA
Max. short-circuit current I_k1 s	29.6 kA

Clamping range Ø	10 ... 85 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 150 mm²
Max. short-circuit current I_k0.5 s	29.6 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	StSt

Product 784085 was added to Notepad.

Go to Notepad

Product 784085 was added to the cart.

Go to Web-Shop

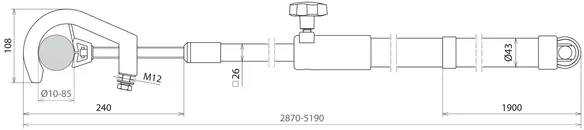

Phase Screw Clamp with Wide Clamping Range and Telescopic Earthing Stick

Ideally suited for use with Al and Al/St conductor cables, pipes and fixed phase points.

1 Product

Part No. 769511 ESTC PSK 5000 SN7249

GTIN 4013364135055, Customs tariff No. (EU): 82055980, Gross weight: 5.71 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	10 ... 85 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 150 mm²
Max. short-circuit current I_k0.5 s	29.6 kA
Max. short-circuit current I_k1 s	29.6 kA
Total length (l_{G max} / I_{G min} )	5200 / 2875 mm
Length (handle)	1900 mm

Clamping range Ø	10 ... 85 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 150 mm²
Max. short-circuit current I_k0.5 s	29.6 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	StSt
Material (insulating tube)	Glass-fibre reinforced polyester tube
Material (threaded coupling, star knob)	Aluminium alloy
Total length (l_{G max} / I_{G min} )	5200 / 2875 mm
Length (handle)	1900 mm
Diameter (stick)	43 mm

Product 769511 was added to Notepad.

Go to Notepad

Product 769511 was added to the cart.

Go to Web-Shop

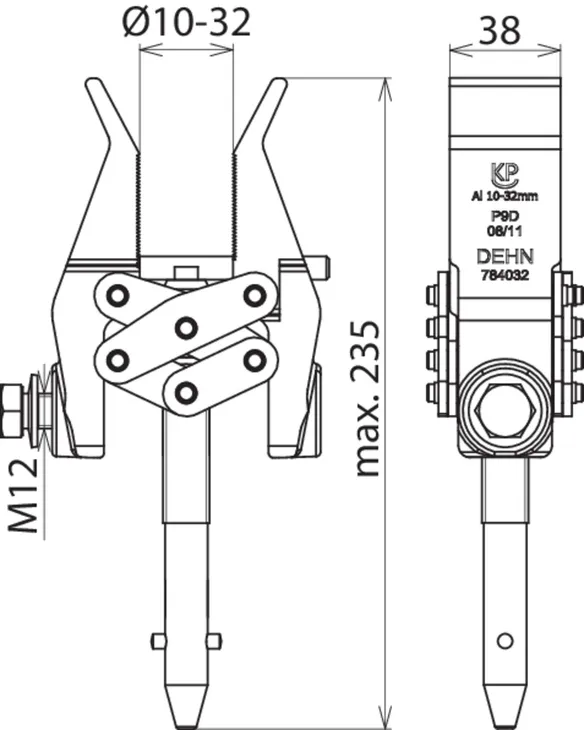

Phase Screw Clamp

Ideally suited for use in inclined positions.

1 Product

Part No. 784032 PSK 10 32 SQL

GTIN 4013364018679, Customs tariff No. (EU): 85359000, Gross weight: 969.40 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

CAD files

Technical data

Clamping range Ø	10 ... 32 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 95 mm²
Max. short-circuit current I_k0.5 s	18.7 kA
Max. short-circuit current I_k1 s	18.7 kA

Clamping range Ø	10 ... 32 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 95 mm²
Max. short-circuit current I_k0.5 s	18.7 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	StSt

Product 784032 was added to Notepad.

Go to Notepad

Product 784032 was added to the cart.

Go to Web-Shop

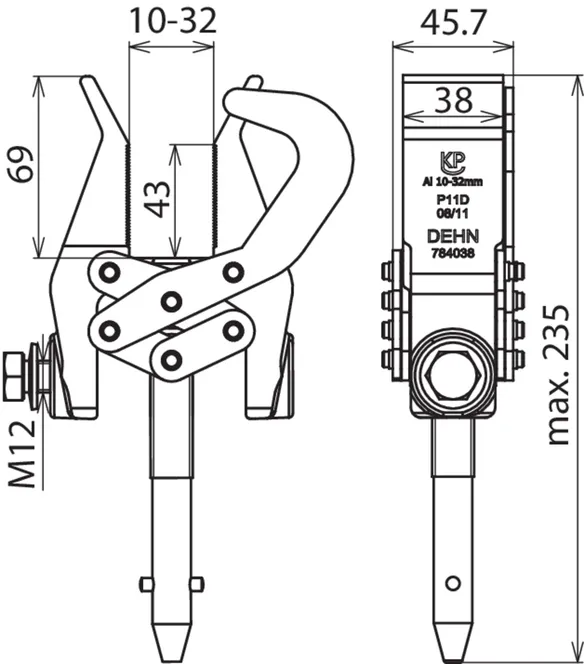

Phase Screw Clamp with Safety Bow

Ideally suited for use in inclined positions.

1 Product

Part No. 784038 PSK 10 32 SQL SB

GTIN 4013364138452, Customs tariff No. (EU): 85359000, Gross weight: 1.01 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

Clamping range Ø	10 ... 32 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 95 mm²
Max. short-circuit current I_k0.5 s	18.7 kA
Max. short-circuit current I_k1 s	18.7 kA

Clamping range Ø	10 ... 32 mm
Anti-rotation protection	PK2
For cable cross-section Cu	16 ... 95 mm²
Max. short-circuit current I_k0.5 s	18.7 kA
Max. short-circuit current I_k1 s	18.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Aluminium alloy
Material (clamp body)	Aluminium alloy
Material (shaft)	StSt
Material (coupling aid)	StSt

Product 784038 was added to Notepad.

Go to Notepad

Product 784038 was added to the cart.

Go to Web-Shop

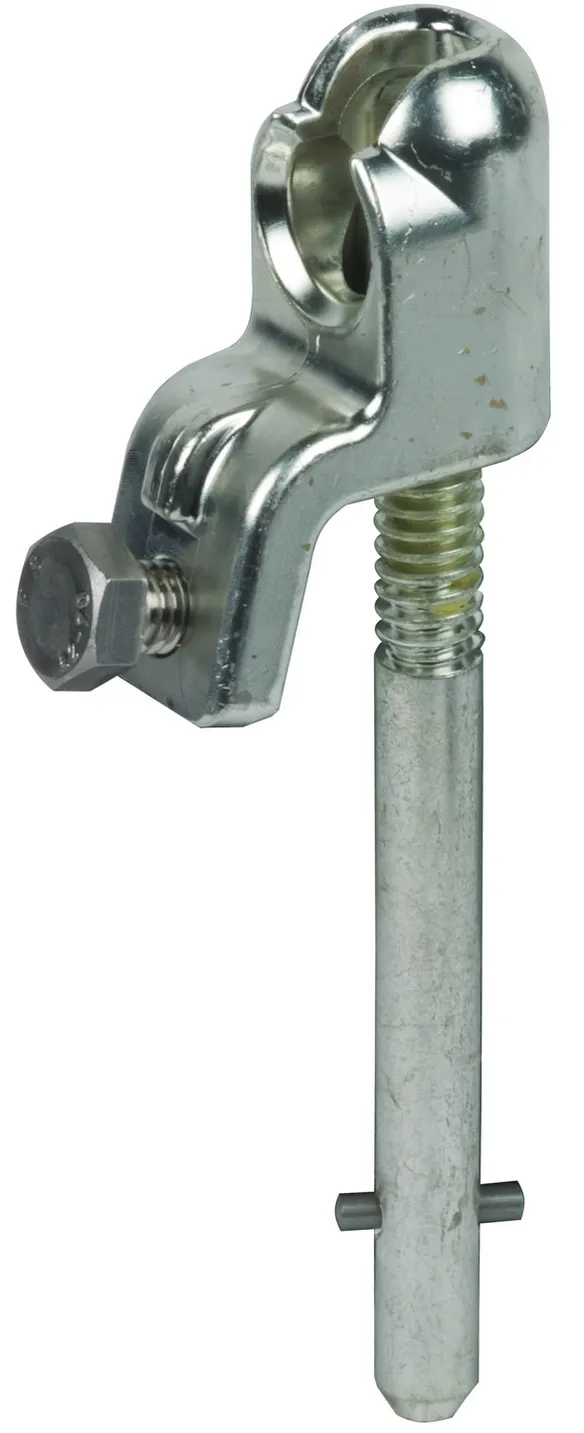

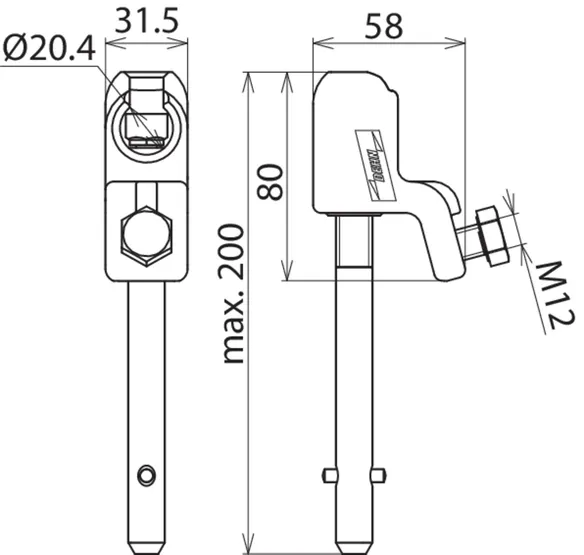

Rigid Ball Head Cap

2 Products

Part No. 772314 KKH 20 SQL

GTIN 4013364080171, Customs tariff No. (EU): 85359000, Gross weight: 446.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

For fixed ball point Ø	20 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

For fixed ball point Ø	20 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120 mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Copper alloy/gal Sn
Material (clamp body)	Copper alloy/gal Sn
Material (shaft)	Copper alloy/gal Sn

Product 772314 was added to Notepad.

Go to Notepad

Product 772314 was added to the cart.

Go to Web-Shop

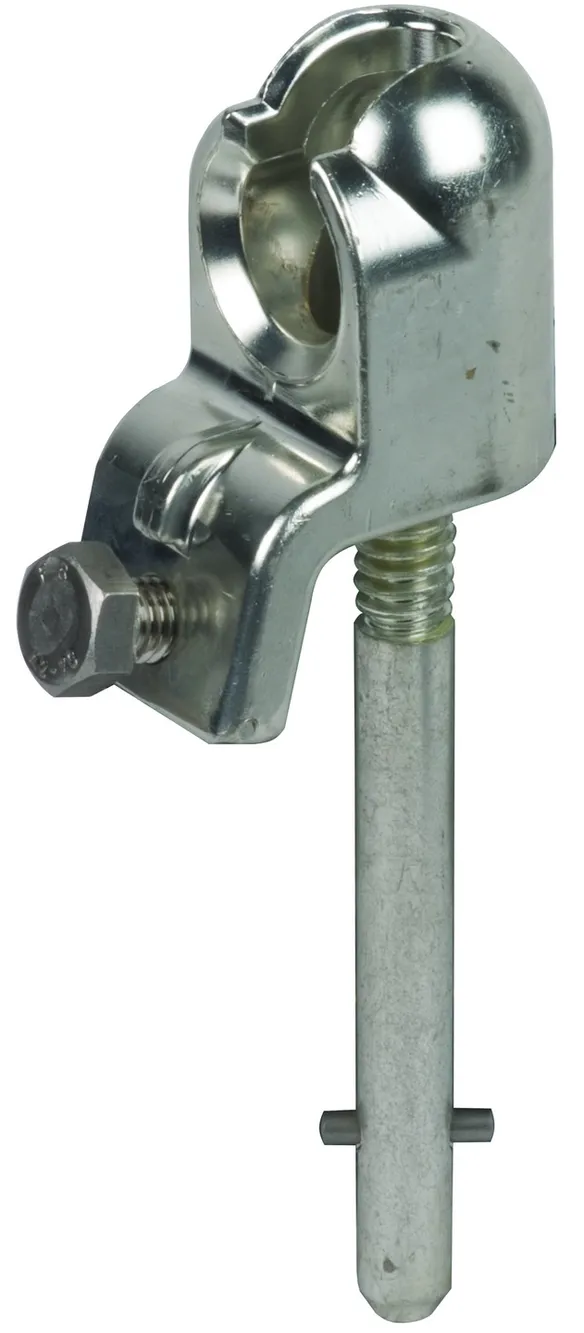

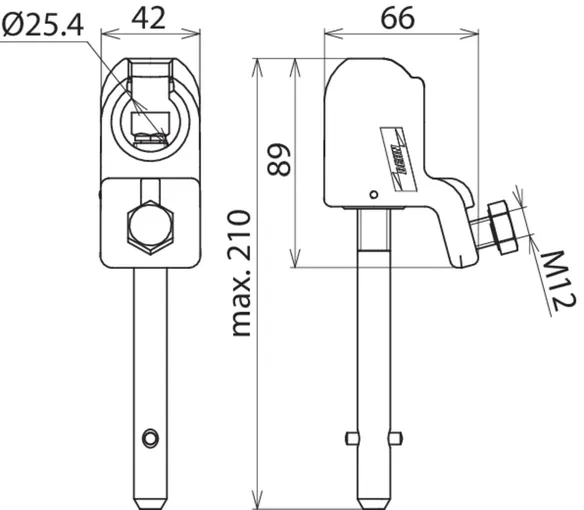

Part No. 772324 KKH 25 SQL

GTIN 4013364080188, Customs tariff No. (EU): 85359000, Gross weight: 719.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

For fixed ball point Ø	25 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA

For fixed ball point Ø	25 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 150 mm²
Max. short-circuit current I_k0.5 s	42.0 kA
Max. short-circuit current I_k1 s	29.6 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	Copper alloy/gal Sn
Material (clamp body)	Copper alloy/gal Sn
Material (shaft)	Copper alloy/gal Sn

Product 772324 was added to Notepad.

Go to Notepad

Product 772324 was added to the cart.

Go to Web-Shop

Universal Clamp

2 Products

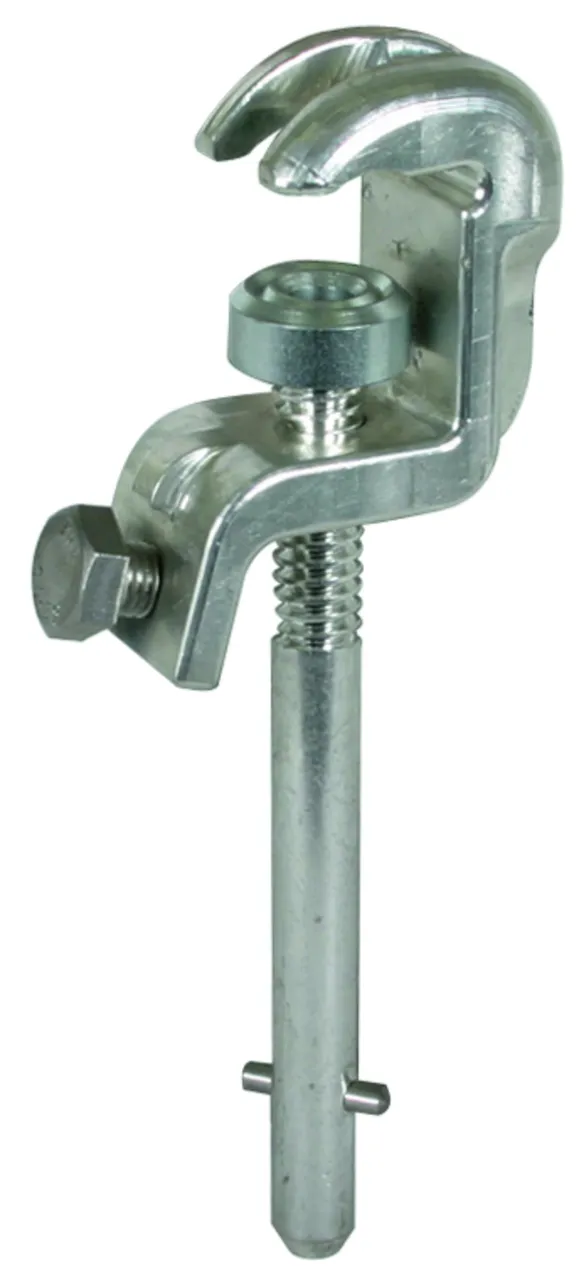

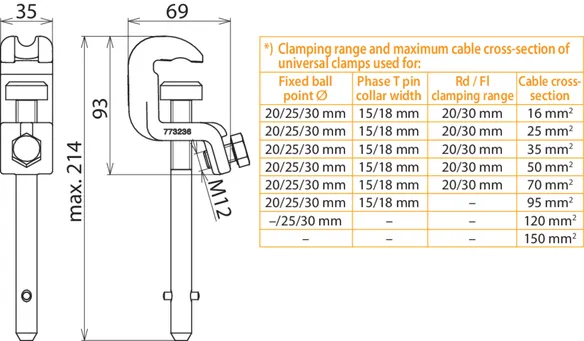

Part No. 773236 UK 25 SQL

GTIN 4013364114579, Customs tariff No. (EU): 85359000, Gross weight: 713.50 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120^*) mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA

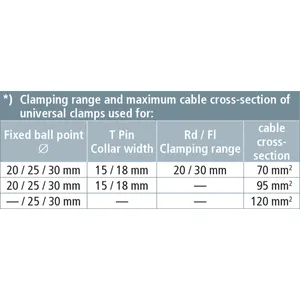

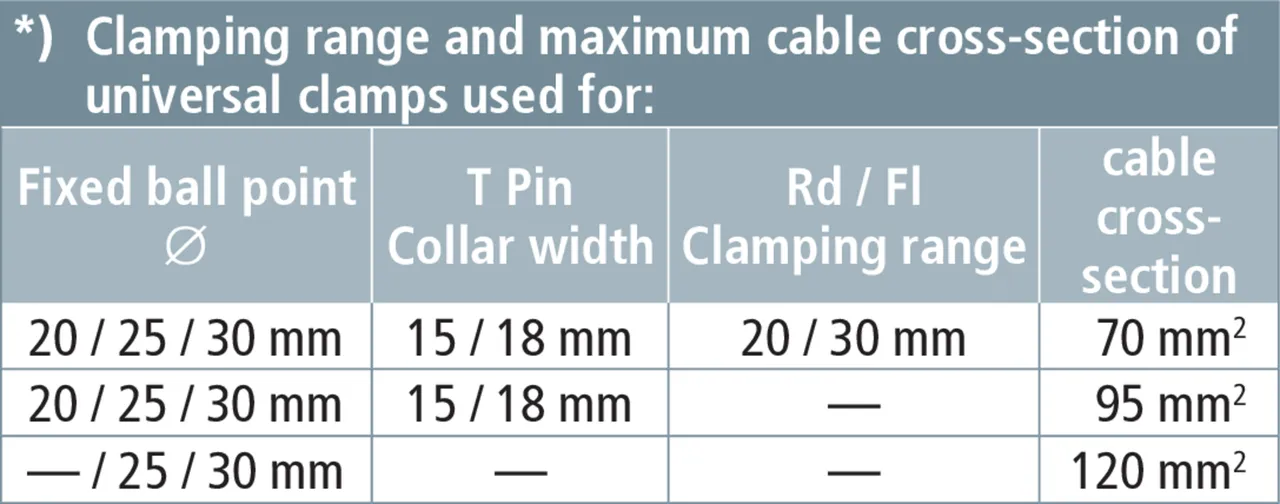

^*) See table for „Clamping range and maximum cable cross-section of universal clamps used for"

For fixed ball point Ø	20 / 25 mm
For T pins with a collar width of	15 mm
Rd / Fl clamping range	20 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120^*) mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	St/gal Zn
Material (clamp body)	Copper alloy/gal Sn
Material (shaft)	Copper alloy/gal Sn
^*) See table for „Clamping range and maximum cable cross-section of universal clamps used for"

Product 773236 was added to Notepad.

Go to Notepad

Product 773236 was added to the cart.

Go to Web-Shop

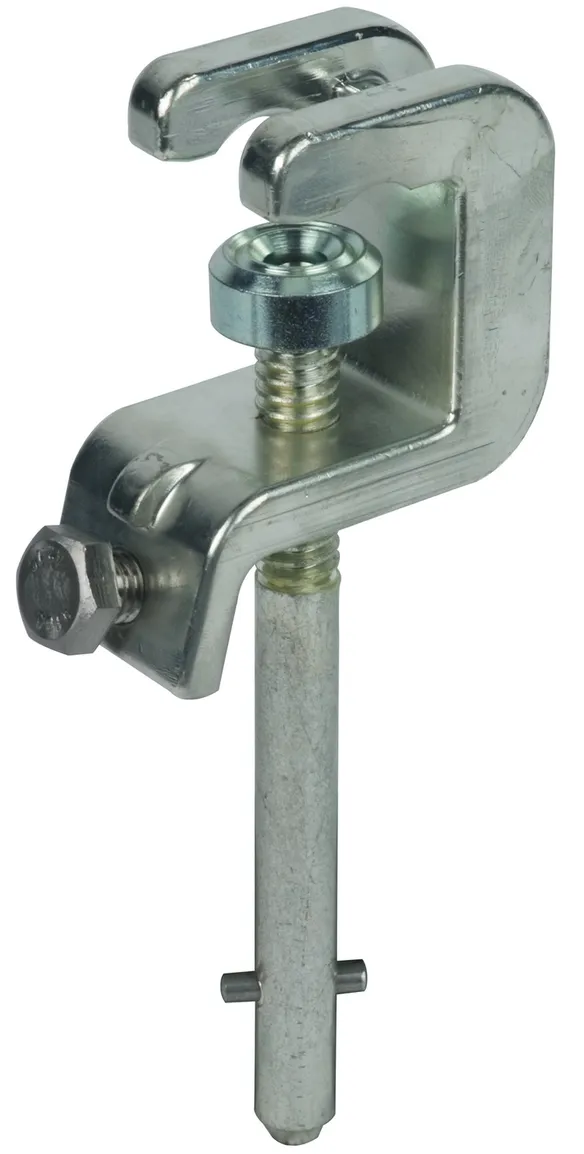

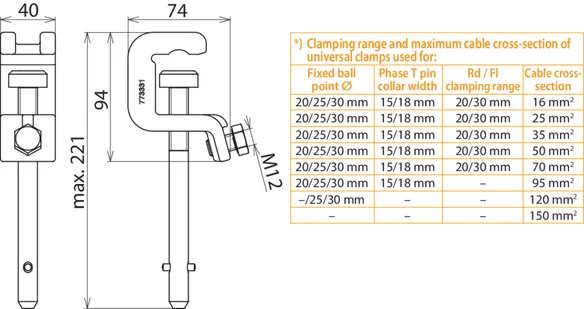

Part No. 773331 UK 30 SQL

GTIN 4013364069244, Customs tariff No. (EU): 85359000, Gross weight: 793.00 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Technical data

For fixed ball point Ø	25 / 30 mm
For T pins with a collar width of	18 mm
Rd / Fl clamping range	30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120^*) mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
^*) See table for „Clamping range and maximum cable cross-section of universal clamps used for"

For fixed ball point Ø	25 / 30 mm
For T pins with a collar width of	18 mm
Rd / Fl clamping range	30 mm
Anti-rotation protection	PK1
For cable cross-section Cu	16 ... 120^*) mm²
Max. short-circuit current I_k0.5 s	33.5 kA
Max. short-circuit current I_k1 s	23.7 kA
Standard	EN/IEC 61230 (DIN VDE 0683-100), threaded T pin shaft DIN 48087
Temperature range	–25 °C ... +55 °C
Material (pressure plate)	St/gal Zn
Material (clamp body)	Copper alloy/gal Sn
Material (shaft)	Copper alloy/gal Sn
^*) See table for „Clamping range and maximum cable cross-section of universal clamps used for"

Product 773331 was added to Notepad.

Go to Notepad

Product 773331 was added to the cart.

Go to Web-Shop

Phase Connecting Elements for Overhead Lines

Details

Standard Phase Screw Clamp

Part No. 784201 PSK 4 30 SQL

Product 784201 was added to Notepad.

Product 784201 was added to the cart.

Part No. 784301 PSK 10 65 SQL

Product 784301 was added to Notepad.

Product 784301 was added to the cart.

Phase Screw Clamp with Coupling Aid

Part No. 784401 PSK 4 30 SQL EH

Product 784401 was added to Notepad.

Product 784401 was added to the cart.

Part No. 784501 PSK 10 65 SQL EH

Product 784501 was added to Notepad.

Product 784501 was added to the cart.

Spring-loaded Phase Screw Clamp

Part No. 784480 PSK FV 4 30 SQL

Product 784480 was added to Notepad.

Product 784480 was added to the cart.

Phase Screw Clamp with Wide Clamping Range

Part No. 784085 PSK 10 85 SQL

Product 784085 was added to Notepad.

Product 784085 was added to the cart.

Phase Screw Clamp with Wide Clamping Range and Telescopic Earthing Stick

Part No. 769511 ESTC PSK 5000 SN7249

You are not authorized to download 769511m_D.dxf

Product 769511 was added to Notepad.

Product 769511 was added to the cart.

Phase Screw Clamp

Part No. 784032 PSK 10 32 SQL

You are not authorized to download 784032.stp

You are not authorized to download 784032.igs

You are not authorized to download 784032.dwg

You are not authorized to download 784032.jt

You are not authorized to download 784032m_D.dxf

Product 784032 was added to Notepad.

Product 784032 was added to the cart.

Phase Screw Clamp with Safety Bow

Part No. 784038 PSK 10 32 SQL SB

Product 784038 was added to Notepad.

Product 784038 was added to the cart.

Rigid Ball Head Cap

Part No. 772314 KKH 20 SQL

Product 772314 was added to Notepad.

Product 772314 was added to the cart.

Part No. 772324 KKH 25 SQL

Product 772324 was added to Notepad.

Product 772324 was added to the cart.

Universal Clamp

Part No. 773236 UK 25 SQL

Product 773236 was added to Notepad.

Product 773236 was added to the cart.

Part No. 773331 UK 30 SQL

Product 773331 was added to Notepad.

Product 773331 was added to the cart.
