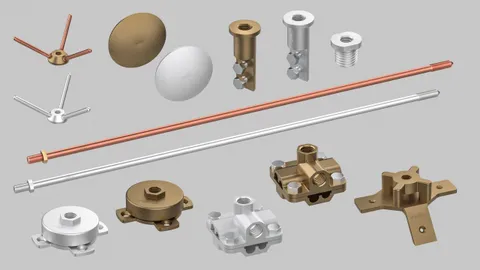

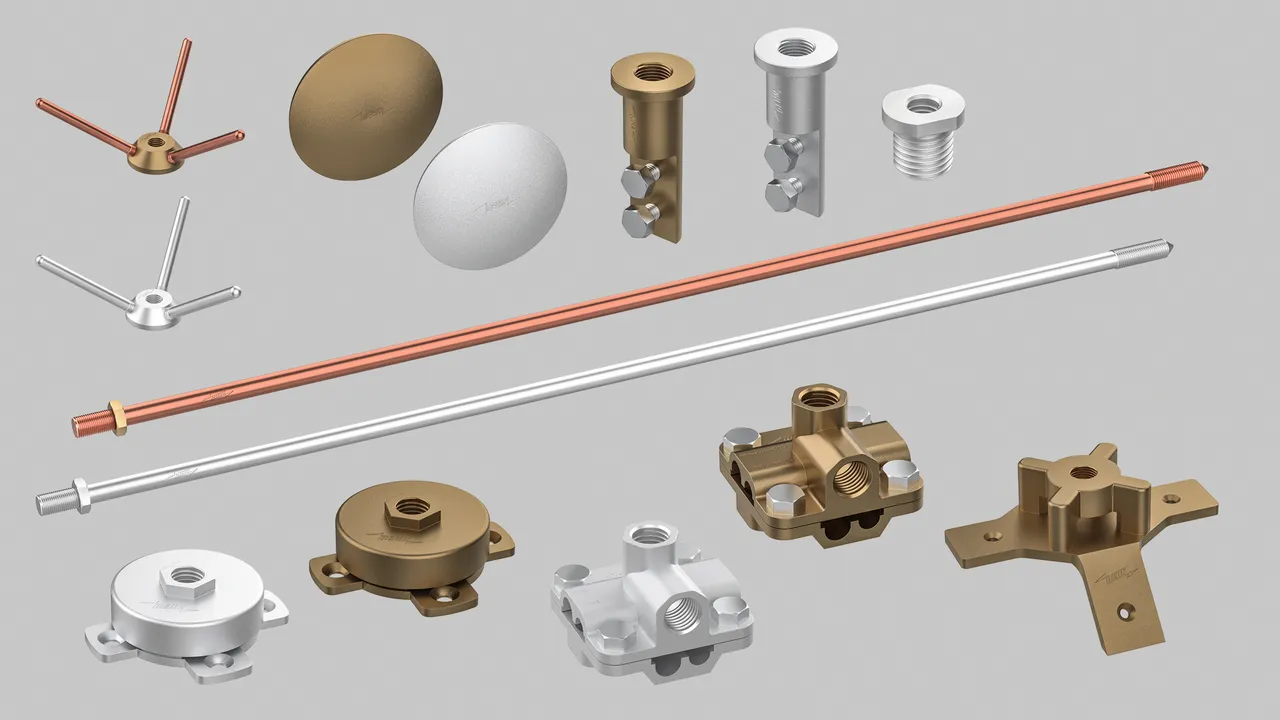

Air-Termination Rods, Bases and Accessories

Air-termination Rods designed to be mounted in the Standard, Multi-Purpose and Ridge Air-Terminal Bases.
To protect structures and buildings from direct lightning strikes, designed as per the latest standards.

These Air Termination Rods are suitable for mounting Multi Point Holders and Air Termination Spikes.

M16 Copper Air-Termination Rods

6 Products

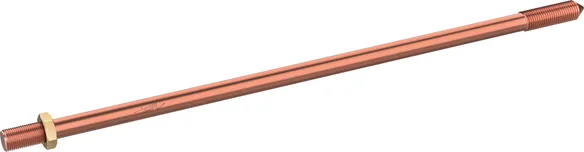

Part No. 117430 AR 15 M16 500 CU

GTIN 4013364483989, Customs tariff No. (EU): 85389000, Gross weight: 795.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Copper
Size T M16
Length L 500 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117430 was added to Notepad.

Go to Notepad

Product 117430 was added to the cart.

Go to Web-Shop

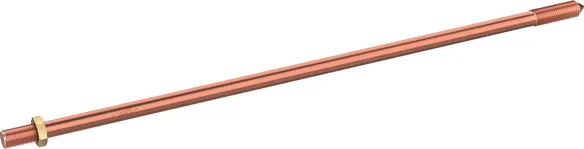

Part No. 117431 AR 15 M16 600 CU

GTIN 4013364483996, Customs tariff No. (EU): 85389000, Gross weight: 950.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Size T M16
Length L 600 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117431 was added to Notepad.

Go to Notepad

Product 117431 was added to the cart.

Go to Web-Shop

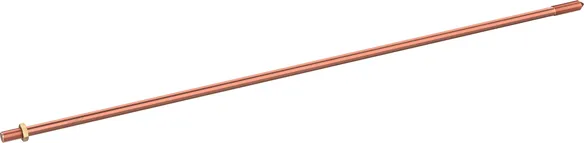

Part No. 117432 AR 15 M16 1000 CU

GTIN 4013364484009, Customs tariff No. (EU): 85389000, Gross weight: 1.57 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Copper
Size T M16
Length L 1000 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117432 was added to Notepad.

Go to Notepad

Product 117432 was added to the cart.

Go to Web-Shop

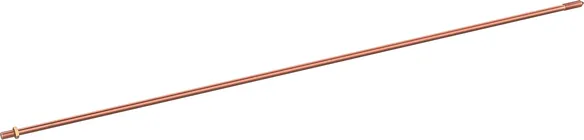

Part No. 117433 AR 15 M16 1500 CU

GTIN 4013364484016, Customs tariff No. (EU): 85389000, Gross weight: 2.35 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Copper
Size T M16
Length L 1500 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117433 was added to Notepad.

Go to Notepad

Product 117433 was added to the cart.

Go to Web-Shop

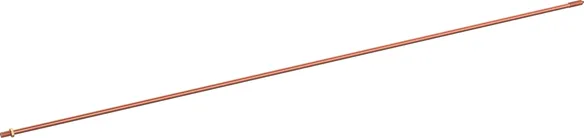

Part No. 117434 AR 15 M16 2000 CU

GTIN 4013364484023, Customs tariff No. (EU): 85389000, Gross weight: 3.12 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Copper
Size T M16
Length L 2000 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117434 was added to Notepad.

Go to Notepad

Product 117434 was added to the cart.

Go to Web-Shop

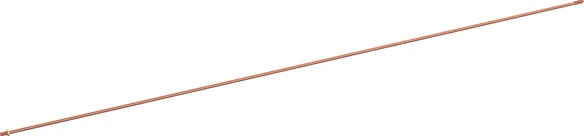

Part No. 117435 AR 15 M16 3000 CU

GTIN 4013364539341, Customs tariff No. (EU): 85389000, Gross weight: 4.68 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Copper
Size T M16
Length L 3000 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117435 was added to Notepad.

Go to Notepad

Product 117435 was added to the cart.

Go to Web-Shop

M10 Copper Air-Termination Rods

3 Products

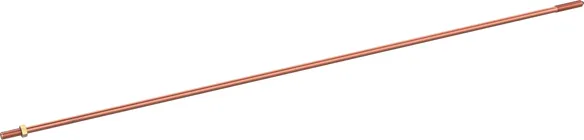

Part No. 117441 AR 10 M10 1000 CU

GTIN 4013364484092, Customs tariff No. (EU): 85389000, Gross weight: 680.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Size T M10
Length L 1000 mm
Nominal Diameter D 10 mm
Accessories M10 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117441 was added to Notepad.

Go to Notepad

Product 117441 was added to the cart.

Go to Web-Shop

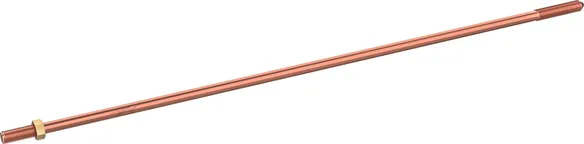

Part No. 117440 AR 10 M10 600 CU

GTIN 4013364484085, Customs tariff No. (EU): 85389000, Gross weight: 410.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Size T M10
Length L 600 mm
Nominal Diameter D 10 mm
Accessories M10 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117440 was added to Notepad.

Go to Notepad

Product 117440 was added to the cart.

Go to Web-Shop

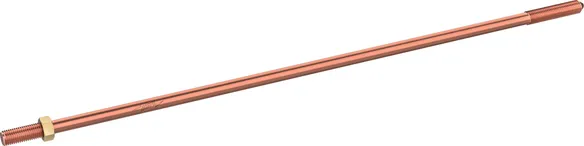

Part No. 117439 AR 10 M10 500 CU

GTIN 4013364484078, Customs tariff No. (EU): 85389000, Gross weight: 345.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Copper
Size T M10
Length L 500 mm
Nominal Diameter D 10 mm
Accessories M10 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117439 was added to Notepad.

Go to Notepad

Product 117439 was added to the cart.

Go to Web-Shop

M16 Aluminium Air-Termination Rods

5 Products

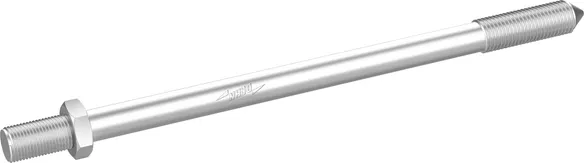

Part No. 117442 AR 15 M16 300 AL

GTIN 4013364483927, Customs tariff No. (EU): 85389000, Gross weight: 160.00 g, PU: 5.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Aluminium
Size T M16
Length L 300 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117442 was added to Notepad.

Go to Notepad

Product 117442 was added to the cart.

Go to Web-Shop

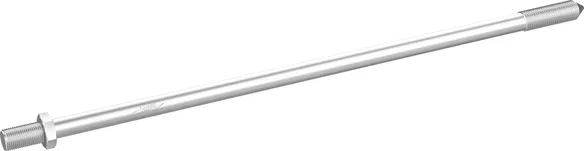

Part No. 117443 AR 15 M16 500 AL

GTIN 4013364483934, Customs tariff No. (EU): 85389000, Gross weight: 255.00 g, PU: 5.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Aluminium
Size T M16
Length L 500 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117443 was added to Notepad.

Go to Notepad

Product 117443 was added to the cart.

Go to Web-Shop

Part No. 117444 AR 15 M16 1000 AL

GTIN 4013364483941, Customs tariff No. (EU): 85389000, Gross weight: 490.00 g, PU: 5.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Aluminium
Size T M16
Length L 1000 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117444 was added to Notepad.

Go to Notepad

Product 117444 was added to the cart.

Go to Web-Shop

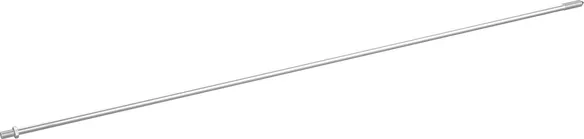

Part No. 117445 AR 15 M16 1500 AL

GTIN 4013364481190, Customs tariff No. (EU): 85389000, Gross weight: 730.00 g, PU: 5.00 pc(s)

Images

Additional information



Technical data

Material Aluminium
Size T M16
Length L 1500 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117445 was added to Notepad.

Go to Notepad

Product 117445 was added to the cart.

Go to Web-Shop

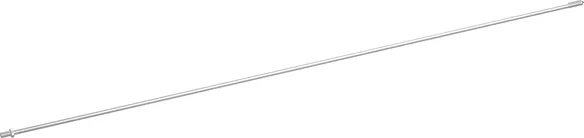

Part No. 117446 AR 15 M16 2000 AL

GTIN 4013364481206, Customs tariff No. (EU): 85389000, Gross weight: 965.00 g, PU: 5.00 pc(s)

Images

Additional information



Technical data

Material Aluminium
Size T M16
Length L 2000 mm
Nominal Diameter D 15 mm
Accessories M16 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117446 was added to Notepad.

Go to Notepad

Product 117446 was added to the cart.

Go to Web-Shop

M10 Aluminium Air-Termination Rods

3 Products

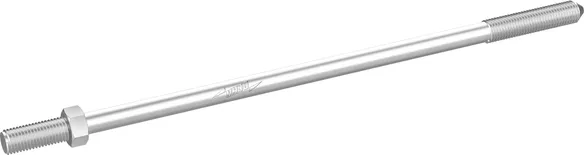

Part No. 117447 AR 10 M10 300 AL

GTIN 4013364483958, Customs tariff No. (EU): 85389000, Gross weight: 70.00 g, PU: 5.00 pc(s)

Images

Additional information



Technical data

Material Aluminium
Size T M10
Length L 300 mm
Nominal Diameter D 10 mm
Accessories M10 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117447 was added to Notepad.

Go to Notepad

Product 117447 was added to the cart.

Go to Web-Shop

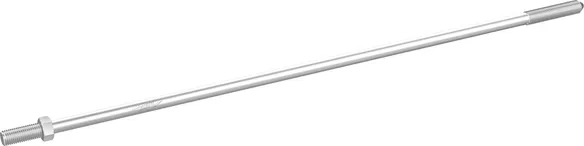

Part No. 117448 AR 10 M10 500 AL

GTIN 4013364483965, Customs tariff No. (EU): 85389000, Gross weight: 110.00 g, PU: 5.00 pc(s)

Images

Additional information



Technical data

Material Aluminium
Size T M10
Length L 500 mm
Nominal Diameter D 10 mm
Accessories M10 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117448 was added to Notepad.

Go to Notepad

Product 117448 was added to the cart.

Go to Web-Shop

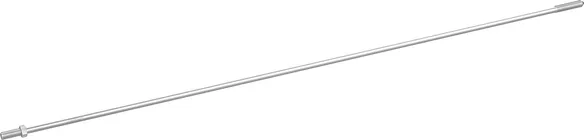

Part No. 117449 AR 10 M10 1000 AL

GTIN 4013364483972, Customs tariff No. (EU): 85389000, Gross weight: 215.00 g, PU: 5.00 pc(s)

Images

Additional information



Technical data

Material Aluminium
Size T M10
Length L 1000 mm
Nominal Diameter D 10 mm
Accessories M10 Lock Nut
Standards IEC / EN IEC / BS EN IEC 62561-2
Note: During high winds and extreme weather conditions air rods over 1000 mm long can be subjected to fatigue mechanisms. It is therefore recommended that additional supports are considered before installation.

Product 117449 was added to Notepad.

Go to Notepad

Product 117449 was added to the cart.

Go to Web-Shop

Air-Termination Rod Bases

Air-Termination Rod Bases are used to mount Air-Termination Rods to flat surfaces. The bases are designed for clamping flat conductors to allow straight through, cross, right angle and T- connections.

2 Products

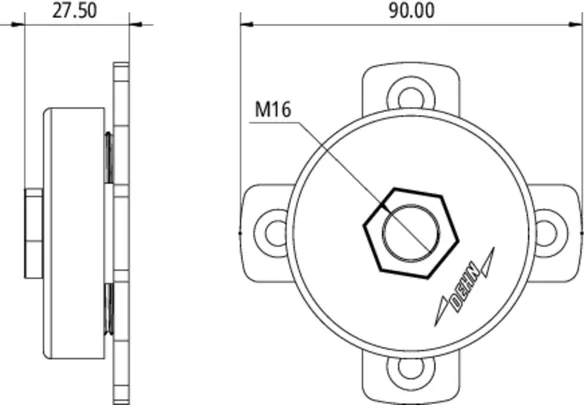

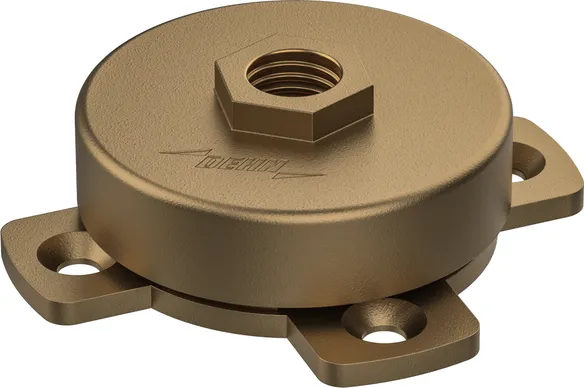

Part No. 117465 ARB M16 FL 25X3 HCA

GTIN 4013364520110, Customs tariff No. (EU): 85389000, Gross weight: 360.00 g, PU: 4.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod Material Copper
Conductor Material Copper
Air Termination Rod Thread Size M16 / M10 *)
Clamping range Fl 25 x 3 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Higher than Class H (200kA)
Lightning current carrying capability (10/350 μs) ?

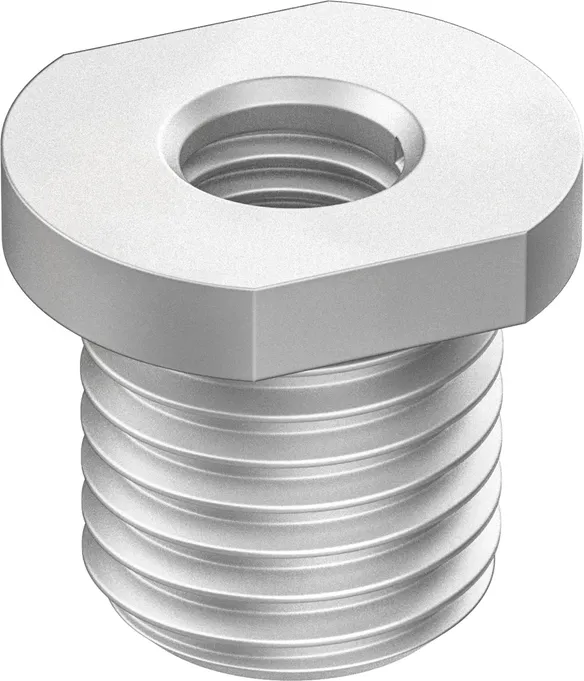

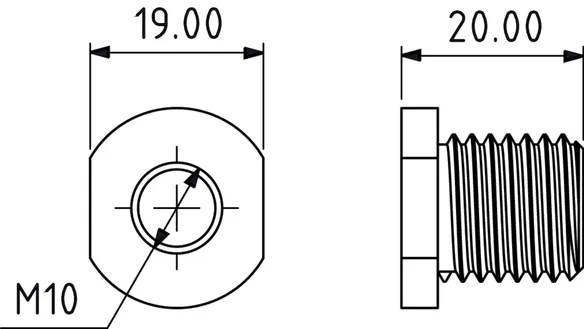

*) Use M10 Air-Termination Rod Adapter, Part Number: 118472

Product 117465 was added to Notepad.

Go to Notepad

Product 117465 was added to the cart.

Go to Web-Shop

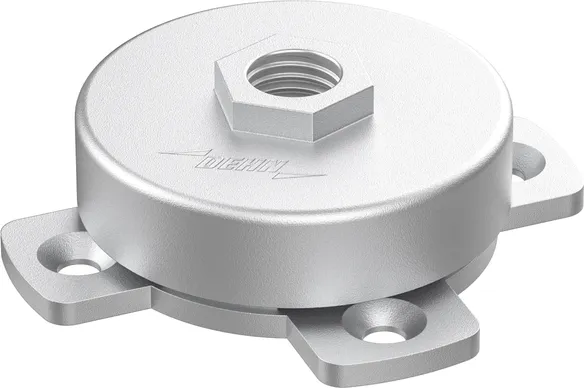

Part No. 117466 ARB M16 FL 25X3 ALA

GTIN 4013364357471, Customs tariff No. (EU): 85389000, Gross weight: 118.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod Material Aluminium
Conductor Material Aluminium
Air Termination Rod Thread Size M16 / M10 *)
Clamping range Fl 25 x 3 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
*) Use M10 Air-Termination Rod Adapter, Part Number: 118472

Product 117466 was added to Notepad.

Go to Notepad

Product 117466 was added to the cart.

Go to Web-Shop

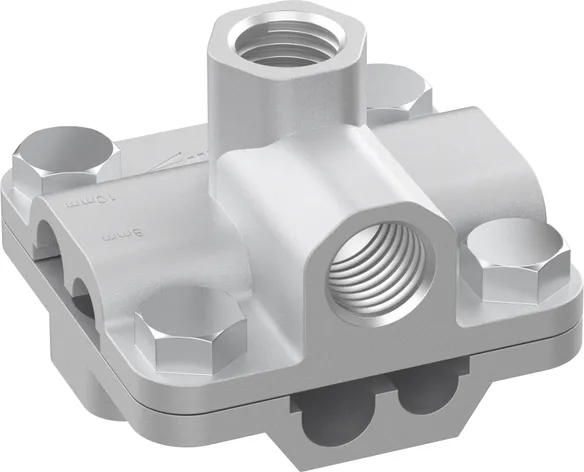

Multipurpose Air-Termination Rod Bases

Multipurpose Air-Termination Rod Bases are used to mount Air-Termination Rods to flat vertical or horizontal surfaces. The bases are designed for clamping flat conductors to allow straight through, cross, right angle, parallel and T- connections.

Expected to be available for delivery in Q1/2025.

2 Products

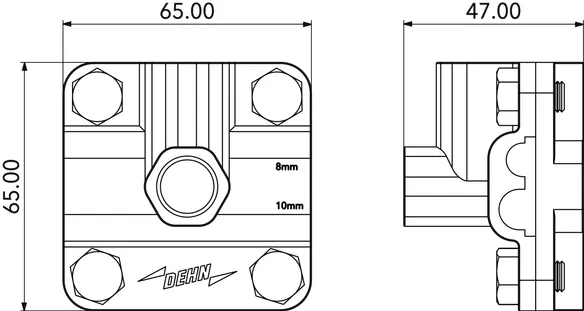

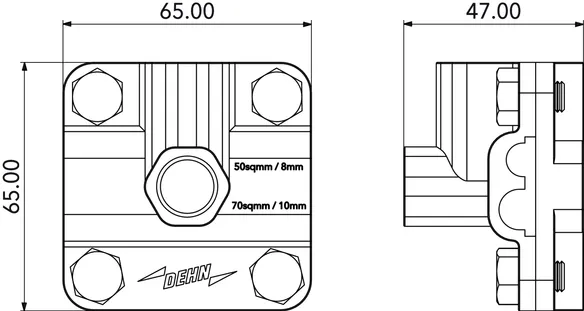

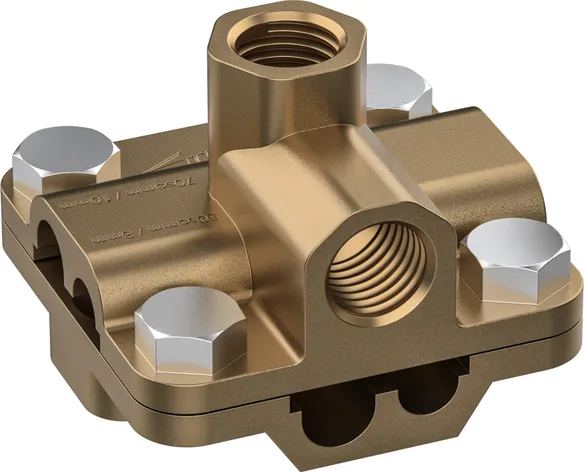

Part No. 118473 MARB M16/M10 FLRDSC 25X3/8.10/50.70 HCA

GTIN 4013364535718, Customs tariff No. (EU): 85389000, Gross weight: 486.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod Material Copper
Conductor Material Copper
Air Termination Rod Thread Size M16 / M10 *)
Clamping range Fl 25 x 3 mm
Clamping range Rd 8 - 10 mm
Clamping range (Stranded / Cable) 50 - 70 mm²
Clamping range Fl / Rd 25 x 3 mm / 8 - 10 mm
Clamping range Fl / Stranded cable 25 x 3 mm / 50 - 70 mm²
Clamping range Rd / Stranded cable 8 - 10 mm / 50 - 70 mm²
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
*) Use M10 Air-Termination Rod Adapter, Part Number: 118472

Product 118473 was added to Notepad.

Go to Notepad

Product 118473 was added to the cart.

Go to Web-Shop

Part No. 117473 MARB M16/M10 FLRDSC 25X3/8.10/50.70 ALA

GTIN 4013364536227, Customs tariff No. (EU): 85389000, Gross weight: 186.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod Material Aluminium
Conductor Material Aluminium
Air Termination Rod Thread Size M16 / M10 *)
Clamping range Fl 25 x 3 mm
Clamping range Rd 8 - 10 mm
Clamping range (Stranded / Cable) 50 - 70 mm²
Clamping range Fl / Rd 25 x 3 mm / 8 - 10 mm
Clamping range Fl / Stranded cable 25 x 3 mm / 50 - 70 mm²
Clamping range Rd / Stranded cable 8 - 10 mm / 50 - 70 mm²
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
*) Use M10 Air-Termination Rod Adapter, Part Number: 118472

Product 117473 was added to Notepad.

Go to Notepad

Product 117473 was added to the cart.

Go to Web-Shop

Air-Termination Rod Ridge Bases

Air-Termination Rod Rdige Bases are used to mount Air-Termination Rods ridge saddle surfaces. The bases are designed for clamping flat conductors to allow straight through, cross, right angle and T- connections.

Expected to be available for delivery in Q1/2025.

2 Products

Part No. 118471 ARRB M16 FL 25X3 HCA

GTIN 4013364535701, Customs tariff No. (EU): 85389000, Gross weight: 575.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod Material Copper
Conductor Material Copper
Air Termination Rod Thread Size M16 / M10 *)
Clamping range Fl 25 x 3-6 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
*) Use M10 Air-Termination Rod Adapter, Part Number: 118472

Product 118471 was added to Notepad.

Go to Notepad

Product 118471 was added to the cart.

Go to Web-Shop

Part No. 117471 ARRB M16 FL 25X3 ALA

GTIN 4013364536777, Customs tariff No. (EU): 85389000, Gross weight: 183.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod Material Aluminium
Conductor Material Aluminium
Air Termination Rod Thread Size M16 / M10 *)
Clamping range Fl 25 x 3-6 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
*) Use M10 Air-Termination Rod Adapter, Part Number: 118472

Product 117471 was added to Notepad.

Go to Notepad

Product 117471 was added to the cart.

Go to Web-Shop

Base Adapter for M16 to M10 Air Termination Rod

Use this Adapter when mounting M10 Air-Termination Rods in our M16 Air-Termination Rod Bases Range.

1 Product

Part No. 118472 ARBA M16/M10 STST

GTIN 4013364536234, Customs tariff No. (EU): 85389000, Gross weight: 20.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Stainless Steel
Air Termination Rod Thread Size M10
Thread Size M16
Tightening Torque 15 Nm

Product 118472 was added to Notepad.

Go to Notepad

Product 118472 was added to the cart.

Go to Web-Shop

Multi Points for Air Termination Rods

Multipoints can be mounted onto our range of M10 and M16 Air-Termination Rods.

Expected to be available for delivery in Q2/2025.

4 Products

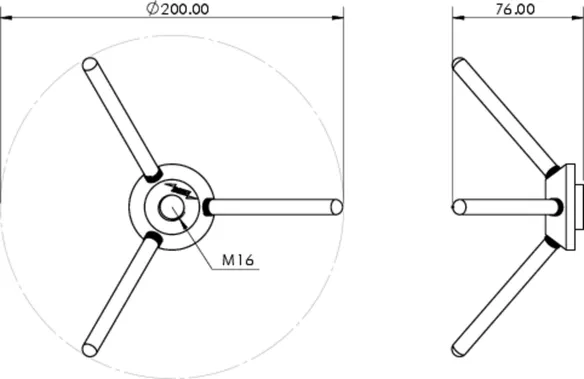

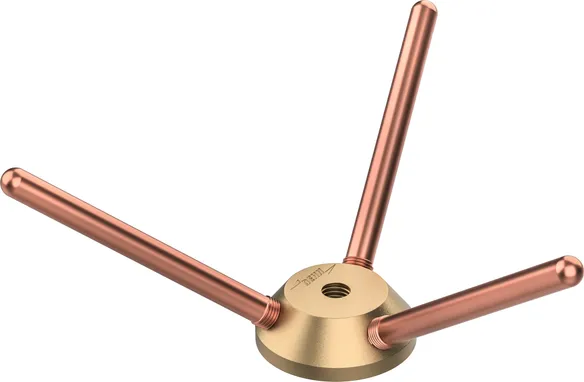

Part No. 118464 ARMP 3W M16 HCA

GTIN 4013364536661, Customs tariff No. (EU): 85389000, Gross weight: 345.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod/Spike Material Copper
Air Termination Rod Thread Size M16
Number of Spikes 3
Accessories M16 Lock Nut
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Recommended use of LOCTITE 242 Blue on spike threads during Installation.

Product 118464 was added to Notepad.

Go to Notepad

Product 118464 was added to the cart.

Go to Web-Shop

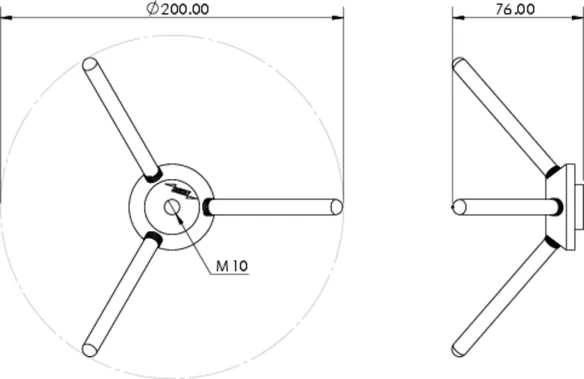

Part No. 118466 ARMP 3W M10 HCA

GTIN 4013364535695, Customs tariff No. (EU): 85389000, Gross weight: 370.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod/Spike Material Copper
Air Termination Rod Thread Size M10
Number of Spikes 3
Accessories M10 Lock Nut
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Recommended use of LOCTITE 242 Blue on spike threads during Installation.

Product 118466 was added to Notepad.

Go to Notepad

Product 118466 was added to the cart.

Go to Web-Shop

Part No. 118465 ARMP 3W M16 HCA

GTIN 4013364536678, Customs tariff No. (EU): 85389000, Gross weight: 125.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod/Spike Material Aluminium
Air Termination Rod Thread Size M16
Number of Spikes 3
Accessories M16 Lock Nut
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Recommended use of LOCTITE 242 Blue on spike threads during Installation.

Product 118465 was added to Notepad.

Go to Notepad

Product 118465 was added to the cart.

Go to Web-Shop

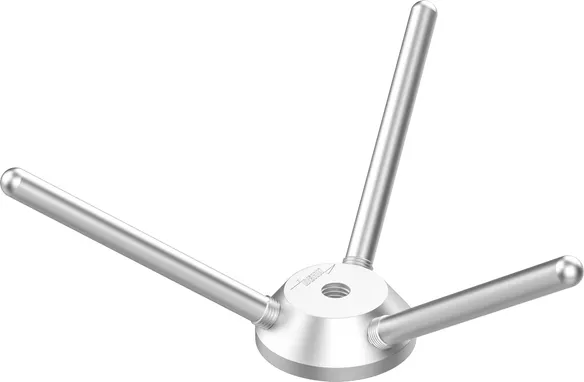

Part No. 118467 ARMP 3W M10 ALA

GTIN 4013364535688, Customs tariff No. (EU): 85389000, Gross weight: 130.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod/Spike Material Aluminium
Air Termination Rod Thread Size M10
Number of Spikes 3
Accessories M10 Lock Nut
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: Recommended use of LOCTITE 242 Blue on spike threads during Installation.

Product 118467 was added to Notepad.

Go to Notepad

Product 118467 was added to the cart.

Go to Web-Shop

Wall Mounting Brackets for Air Termination Rods

Wall Mounting Brackets are used to mount Air Termination Rods to vertical surfaces, to be used in conjunction with Couplers.

2 Products

Part No. 118478 ARSB M16 HCA

GTIN 4013364476776, Customs tariff No. (EU): 85389000, Gross weight: 460.00 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod Material Copper
Air Termination Rod Thread Size M16

Product 118478 was added to Notepad.

Go to Notepad

Product 118478 was added to the cart.

Go to Web-Shop

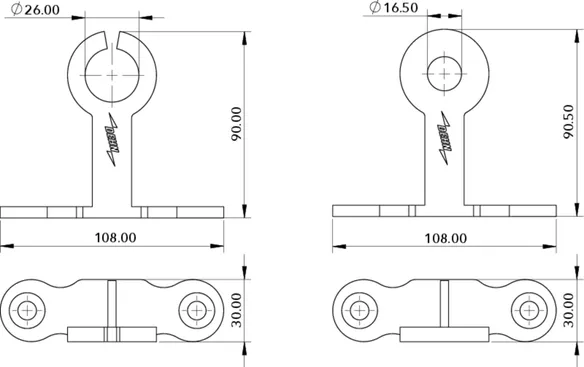

Part No. 118479 ARSB M16 ALA

GTIN 4013364536203, Customs tariff No. (EU): 85389000, Gross weight: 150.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod Material Aluminium
Air Termination Rod Thread Size M16

Product 118479 was added to Notepad.

Go to Notepad

Product 118479 was added to the cart.

Go to Web-Shop

Couplers for Wall Mounting Brackets and Air Termination Rods

Couplers are used to connect the Bracket mounted Air Termintation Rods to the Lightning Protection System.

Expected to be available for delivery in Q1/2025.

3 Products

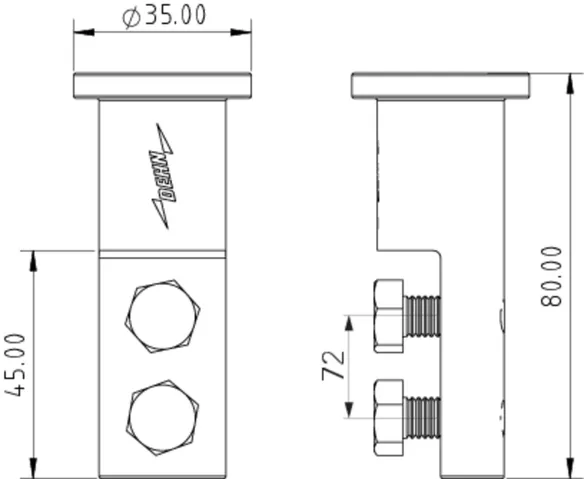

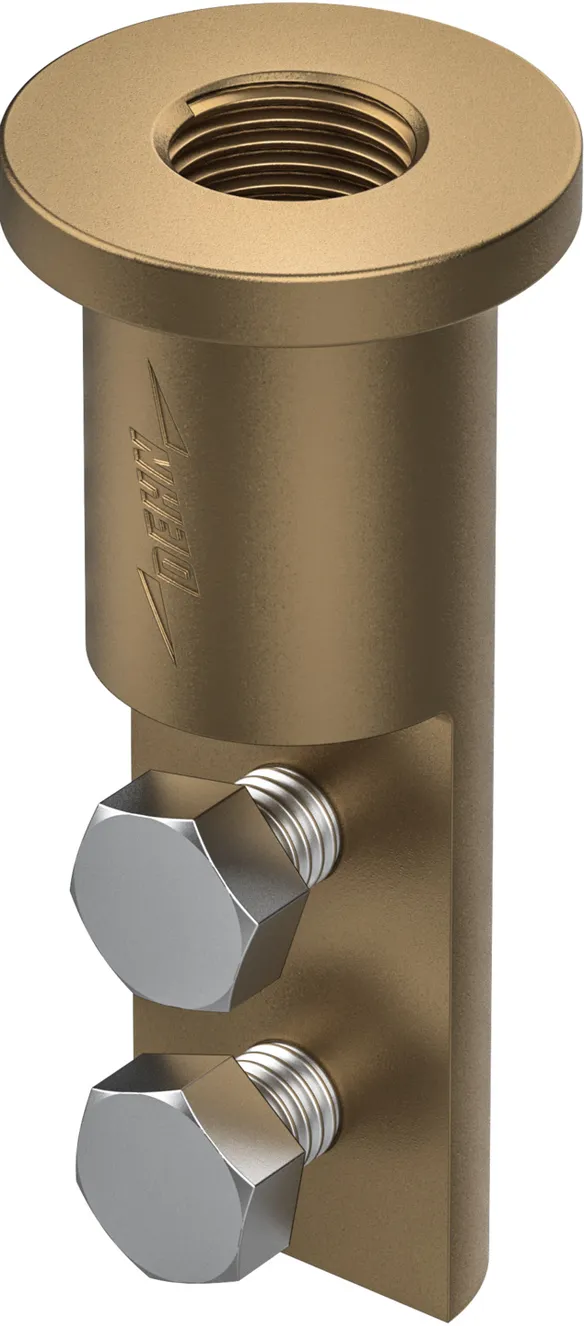

Part No. 138251 ARC M16 FL 25X3 HCA

GTIN 4013364298149, Customs tariff No. (EU): 85389000, Gross weight: 220.00 g, PU: 50.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod Material Copper
Conductor Material Copper
Air Termination Rod Thread Size M16
Clamping range Fl 25 x 3 mm
Clamp Fixings Hex Head Bolt M8 x 2 Nos
Material of Clamp Fixings Stainless Steel
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138251 was added to Notepad.

Go to Notepad

Product 138251 was added to the cart.

Go to Web-Shop

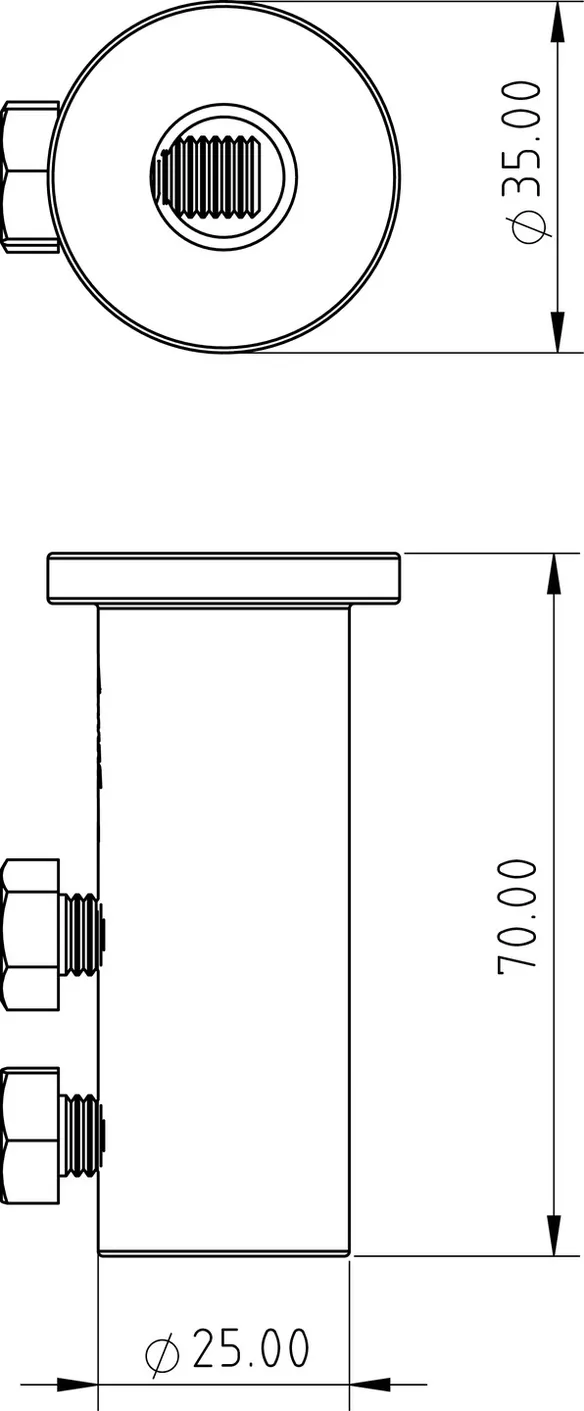

Part No. 138252 ARC M16 SC 50.70 HCA

GTIN 4013364536210, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Air Termination Rod Material Copper
Conductor Material Copper
Air Termination Rod Thread Size M16
Clamping range (Stranded / Cable) 50 - 70 mm²
Clamp Fixings Hex Head Bolt M8 x 2 Nos
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138252 was added to Notepad.

Go to Notepad

Product 138252 was added to the cart.

Go to Web-Shop

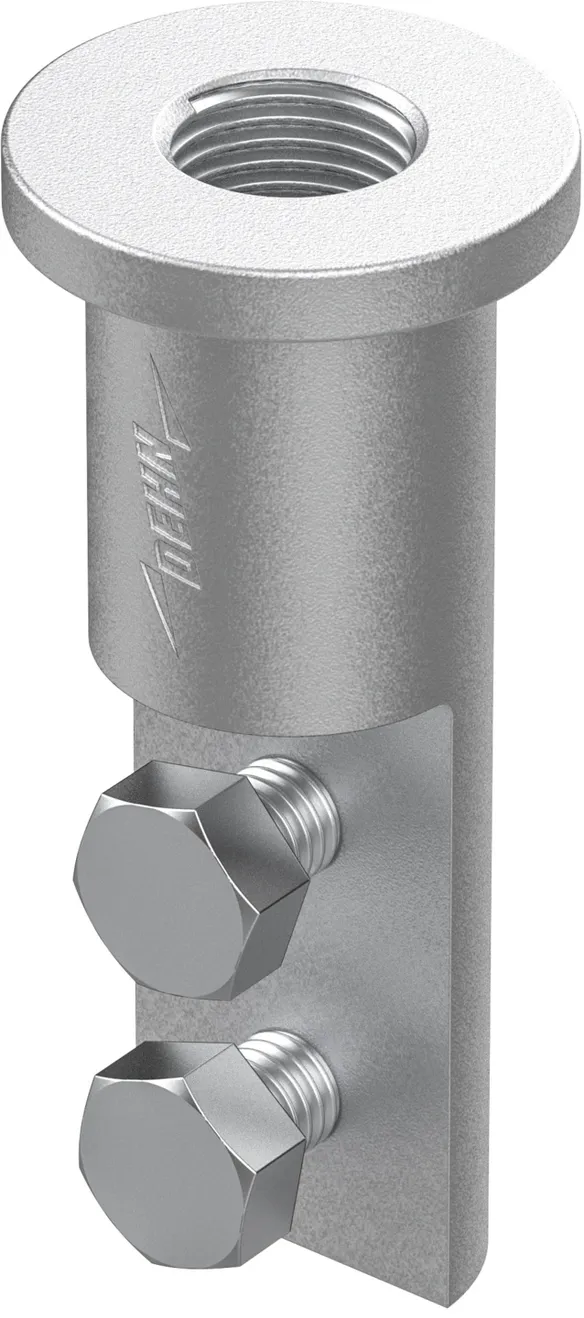

Part No. 138253 ARC M16 FL 25X3 ALA

GTIN 4013364536326, Customs tariff No. (EU): 85389000, Gross weight: 90.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Air Termination Rod Material Aluminium
Conductor Material Aluminium
Air Termination Rod Thread Size M16
Clamping range Fl 25 x 3 mm
Clamp Fixings Hex Head Bolt M8 x 2 Nos
Material of Clamp Fixings Stainless Steel
Tightening Torque 10 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138253 was added to Notepad.

Go to Notepad

Product 138253 was added to the cart.

Go to Web-Shop

Strike Pads

Strike Pads are used as exposed conductive points inter-connected by the air termination system hidden/embedded in the building’s facade, e.g. car parks, below the tiles, or in lateral air-termination network for protection of buildings over 60 meters high.

118 413 is expected to be available for delivery in Q2/2025.

3 Products

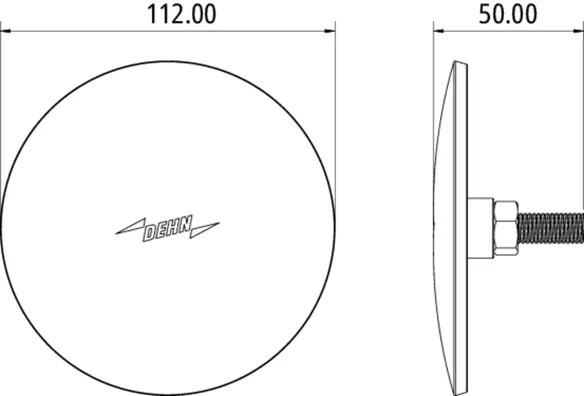

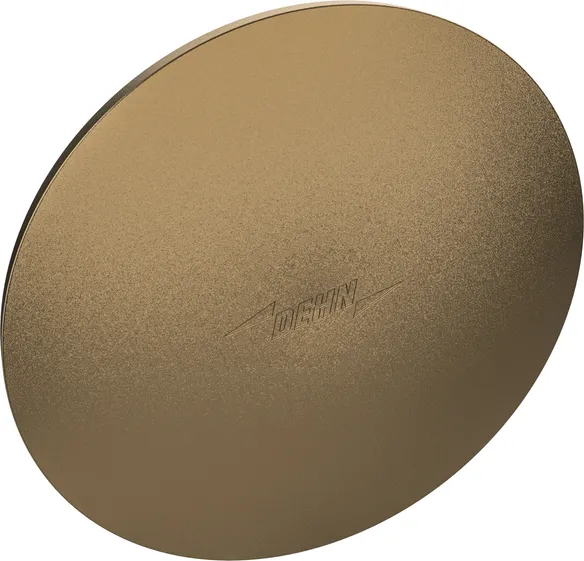

Part No. 118411 SP M10 FL 25X3 HCA

GTIN 4013364520677, Customs tariff No. (EU): 85389000, Gross weight: 450.00 g, PU: 2.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Clamping range Fl 25 x 3 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118411 was added to Notepad.

Go to Notepad

Product 118411 was added to the cart.

Go to Web-Shop

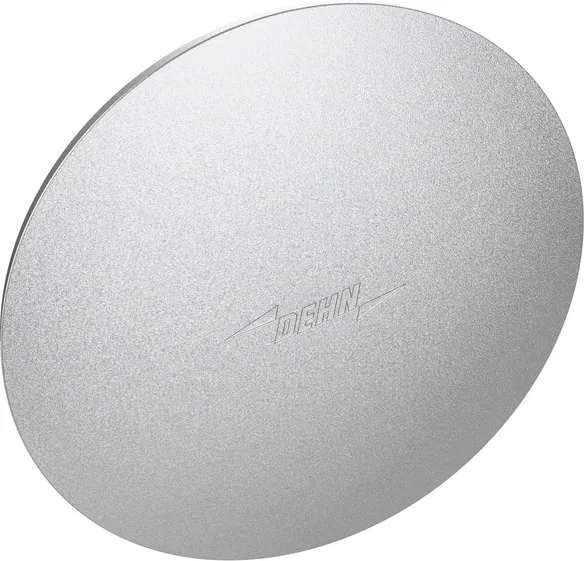

Part No. 118412 SP M10 FL 25X3 ALA

GTIN 4013364520684, Customs tariff No. (EU): 85389000, Gross weight: 150.00 g, PU: 2.00 pc(s)

Images

Additional information



Technical data

Material Aluminium Alloy
Conductor Material Aluminium
Clamping range Fl 25 x 3 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118412 was added to Notepad.

Go to Notepad

Product 118412 was added to the cart.

Go to Web-Shop

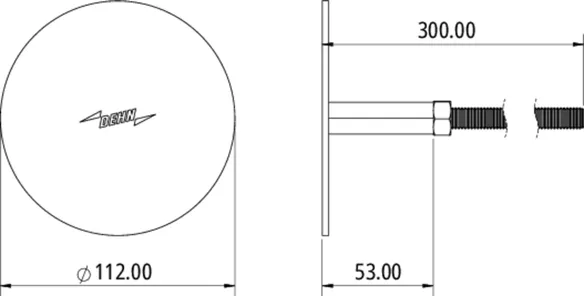

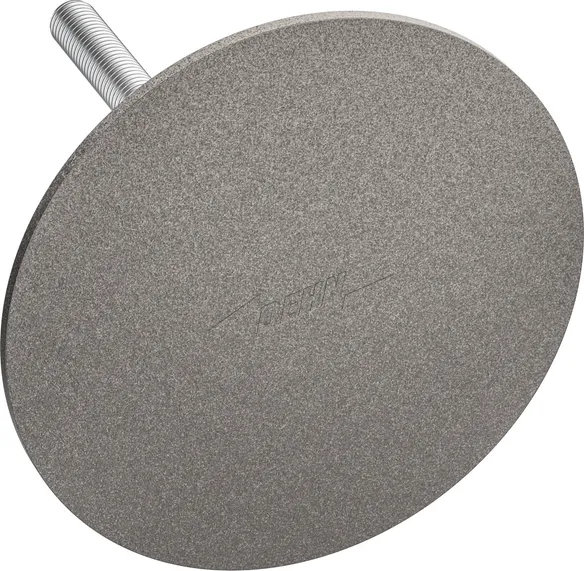

Part No. 118413 SP M10 FL 25X3 STST

GTIN 4013364536050, Customs tariff No. (EU): 85389000, Gross weight: 440.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Stainless Steel
Conductor Material Copper, Aluminium, HDG-Steel
Clamping range Fl 25 x 3 mm
Tightening Torque 15 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 118413 was added to Notepad.

Go to Notepad

Product 118413 was added to the cart.

Go to Web-Shop
back to top
