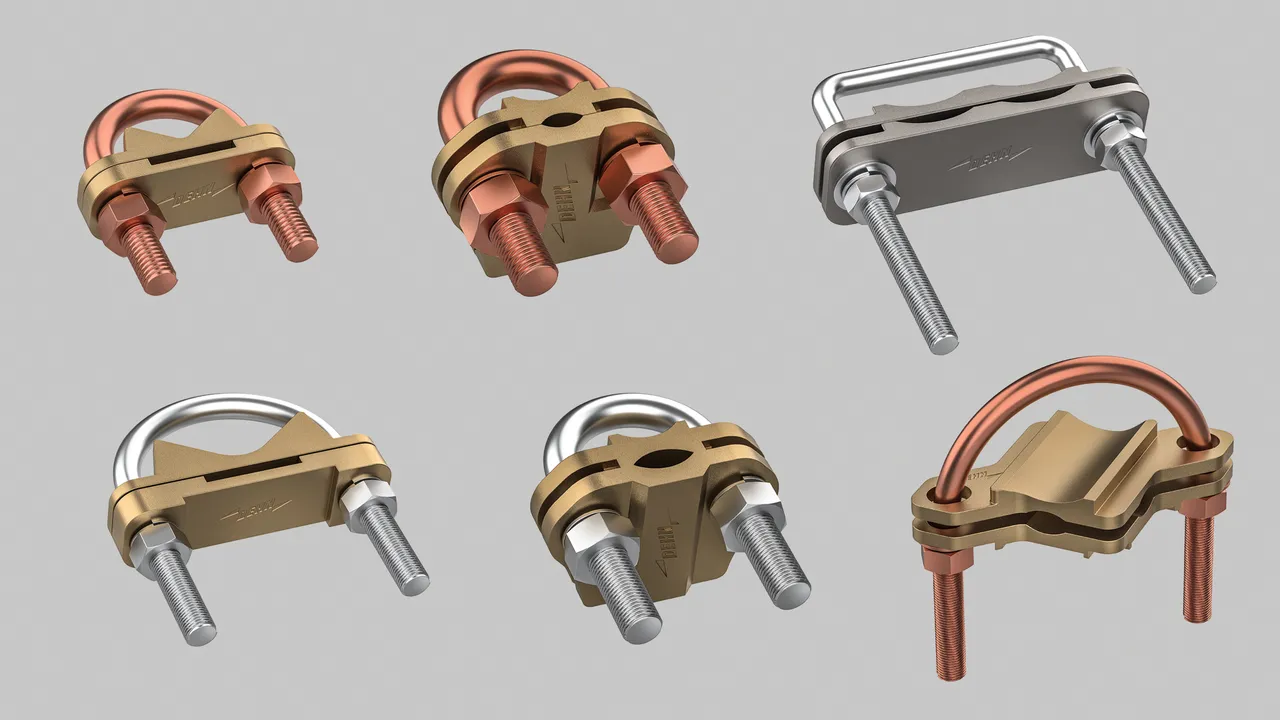

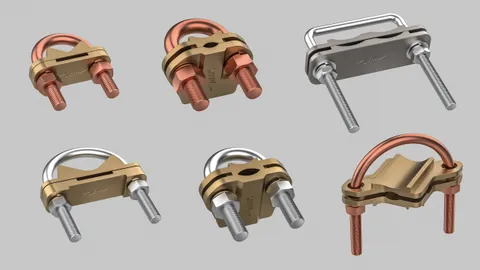

U-Bolt Clamps for Reinforcement Technology

U-Bolt clamps are used for interconnecting various sizes of earth rods, reinforcing bars (rebars), stranded cables and flat condutors.
The clamps have a high resistance to corrosion and show high mechanical strength to ensure a lasting connection.

Earth Rods/Rebars to Flat Conductors

138260, 138263 and 138265 are expected to be available for delivery in Q2/2025!

5 Products

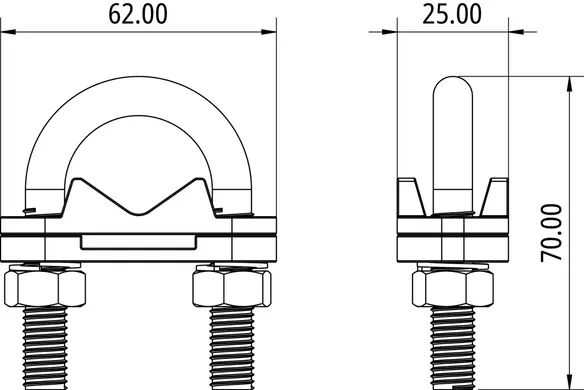

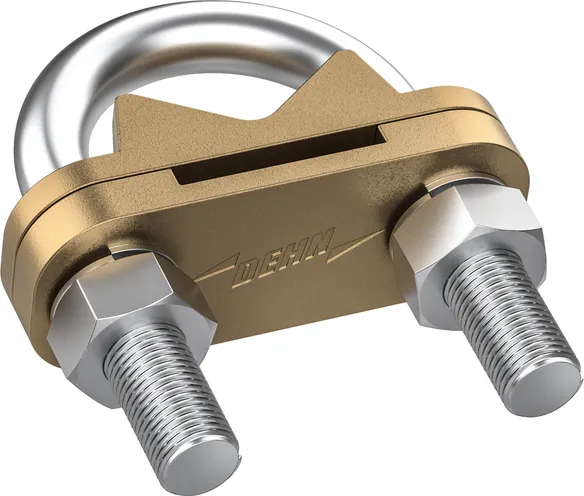

Part No. 138261 UBC FLERRB 25X3/12.25 HCA

GTIN 4013364519015, Customs tariff No. (EU): 85389000, Gross weight: 190.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 14.2 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 12 - 25 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 62 x 25 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138261 was added to Notepad.

Go to Notepad

Product 138261 was added to the cart.

Go to Web-Shop

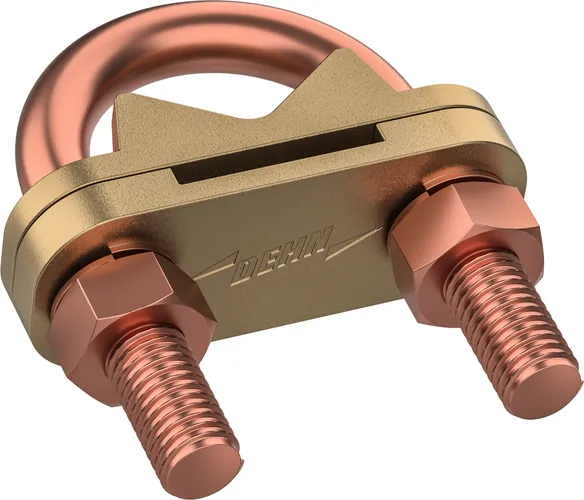

Part No. 138265 UBC FLERRB 25X3/12.25 HCA CU

GTIN 4013364519046, Customs tariff No. (EU): 85389000, Gross weight: 210.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 14.2 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 12 - 25 mm
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 15 Nm
Dimensions (l x w x h) 62 x 25 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138265 was added to Notepad.

Go to Notepad

Product 138265 was added to the cart.

Go to Web-Shop

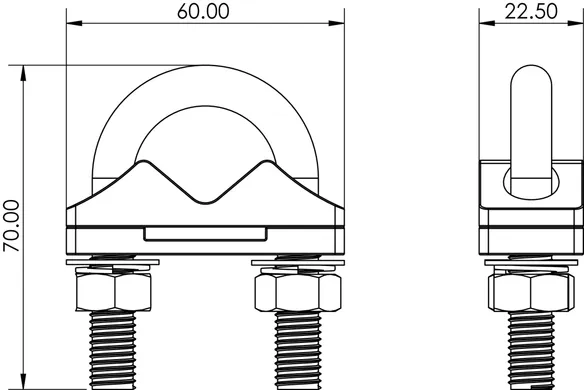

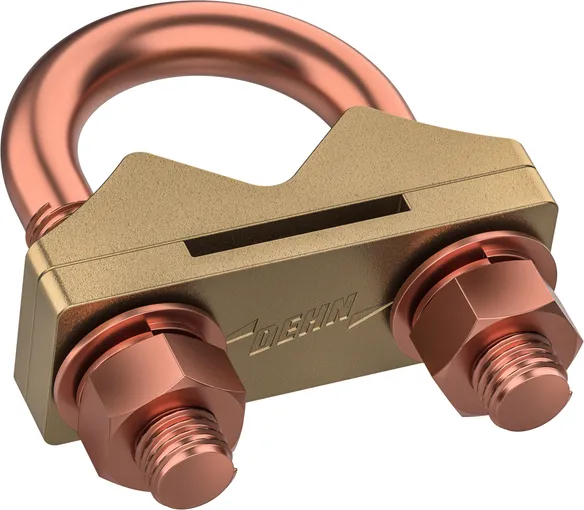

Part No. 138148 UBC FLER 25X3/16.25 HCA CU

GTIN 4013364300507, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 50.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rod 25 x 3 / 16 - 25 mm
Clamping range Fl / Rebar 25 x 3 / 16 - 25 mm
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 60 x 22.5 x 70 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138148 was added to Notepad.

Go to Notepad

Product 138148 was added to the cart.

Go to Web-Shop

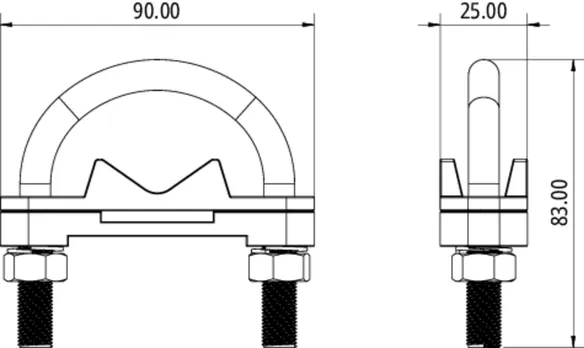

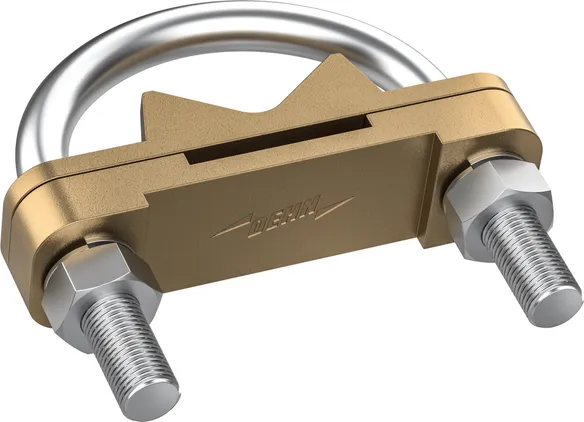

Part No. 138260 UBC FLRB 25.50X3.6/25.38 HCA

GTIN 4013364519022, Customs tariff No. (EU): 85389000, Gross weight: 326.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rebar W (25-50) x T (3-6) / 25-38 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 90 x 25 x 83 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138260 was added to Notepad.

Go to Notepad

Product 138260 was added to the cart.

Go to Web-Shop

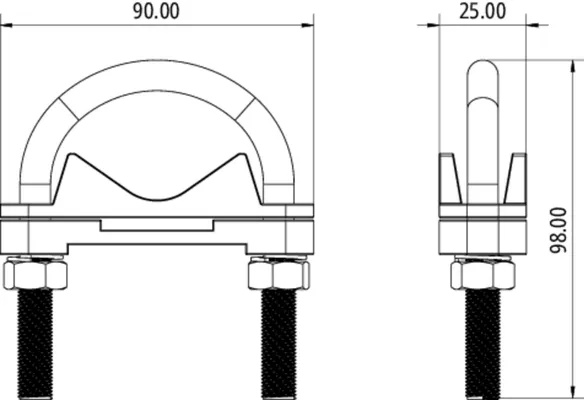

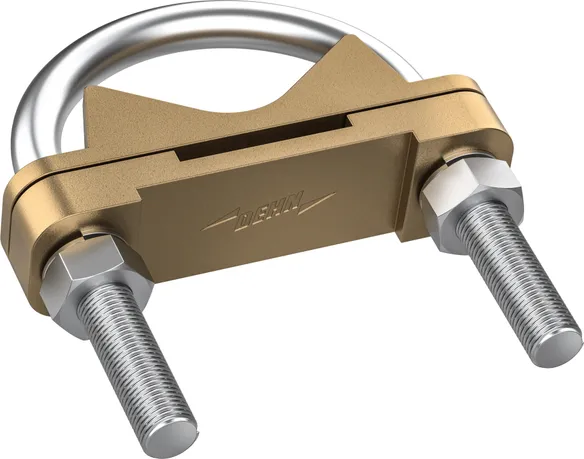

Part No. 138263 UBC FLRB 25.50X3.6/38.50 HCA

GTIN 4013364519039, Customs tariff No. (EU): 85389000, Gross weight: 345.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Fl / Rebar W (25-50) x T (3-6) / 38-50 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 90 x 25 x 98 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =
Note: For Single Plate U-Bolt application - Stranded cables crimped using appropriate cable lugs may be connected by removing the bottom plate and fixed directly to the top plate using the clamp fixings.

Product 138263 was added to Notepad.

Go to Notepad

Product 138263 was added to the cart.

Go to Web-Shop

Earth Rods/Rebars to Stranded Conductors

7 Products

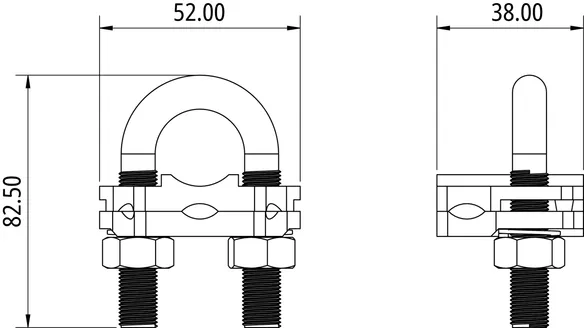

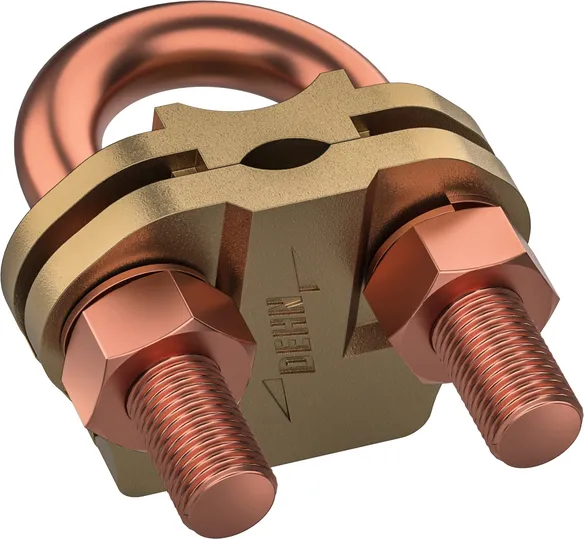

Part No. 138164 UBC ERRBSC 12.20/16.70 HCA CU

GTIN 4013364519077, Customs tariff No. (EU): 85389000, Gross weight: 220.00 g, PU: 8.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 16 - 70 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 16 - 70 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 15 Nm
Dimensions (l x w x h) 82.5 x 52 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138164 was added to Notepad.

Go to Notepad

Product 138164 was added to the cart.

Go to Web-Shop

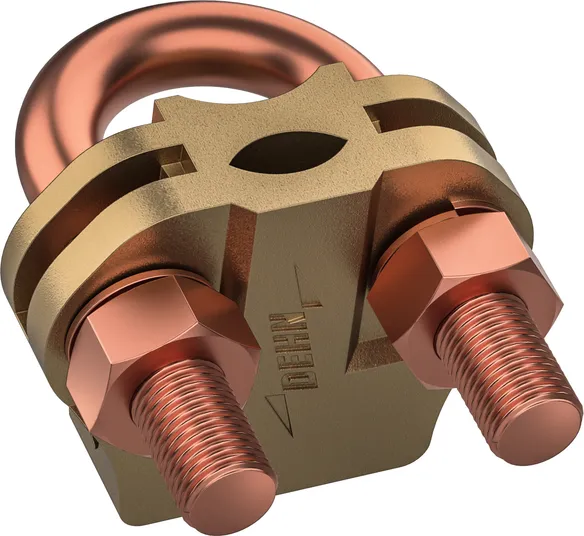

Part No. 138165 UBC ERRBSC 12.20/70.150 HCA CU

GTIN 4013364519084, Customs tariff No. (EU): 85389000, Gross weight: 240.00 g, PU: 8.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 70 - 150 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 70 - 150 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138165 was added to Notepad.

Go to Notepad

Product 138165 was added to the cart.

Go to Web-Shop

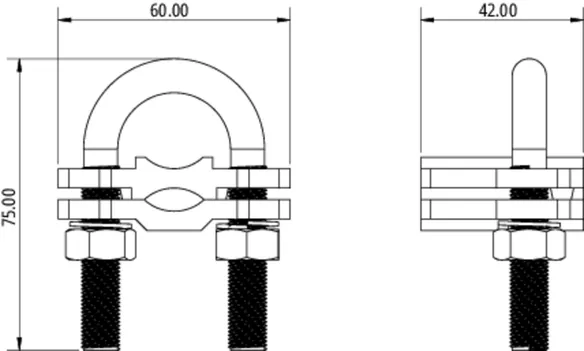

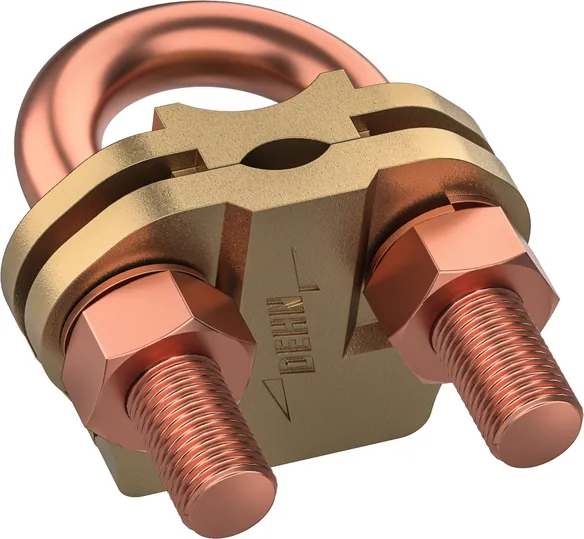

Part No. 138166 UBC ERRBSC 12.20/150.300 HCA CU

GTIN 4013364519091, Customs tariff No. (EU): 85389000, Gross weight: 280.00 g, PU: 6.00 pc(s)

Predecessor

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 150 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 150 - 300 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 75 x 60 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138166 was added to Notepad.

Go to Notepad

Product 138166 was added to the cart.

Go to Web-Shop

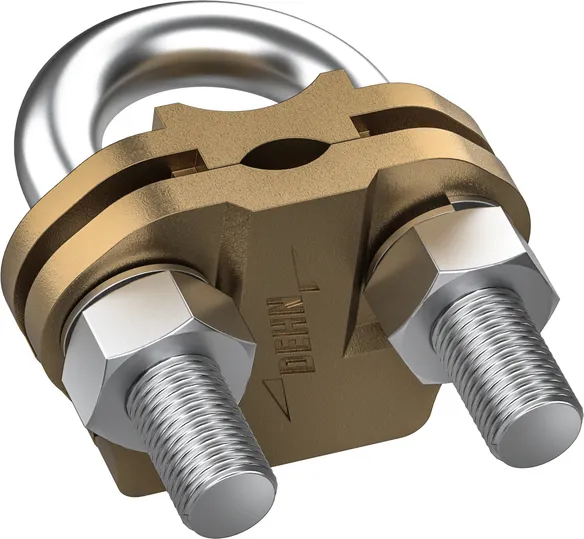

Part No. 138170 UBC ERRBSC 12.20/16.70 HCA

GTIN 4013364519107, Customs tariff No. (EU): 85389000, Gross weight: 210.00 g, PU: 8.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 16 - 70 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 16 - 70 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138170 was added to Notepad.

Go to Notepad

Product 138170 was added to the cart.

Go to Web-Shop

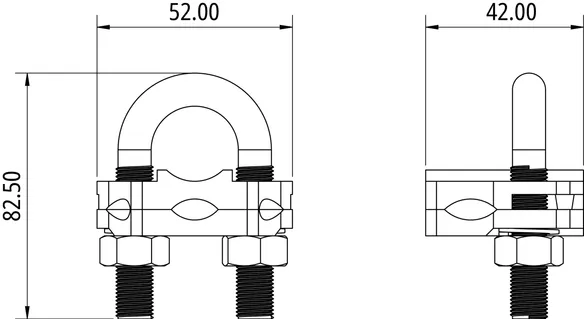

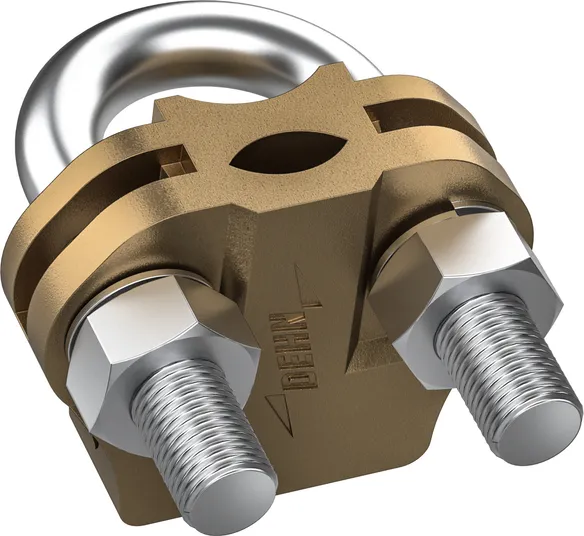

Part No. 138171 UBC ERRBSC 12.20/70.150 HCA

GTIN 4013364519114, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 8.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 70 - 150 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 70 - 150 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 82.5 x 52 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138171 was added to Notepad.

Go to Notepad

Product 138171 was added to the cart.

Go to Web-Shop

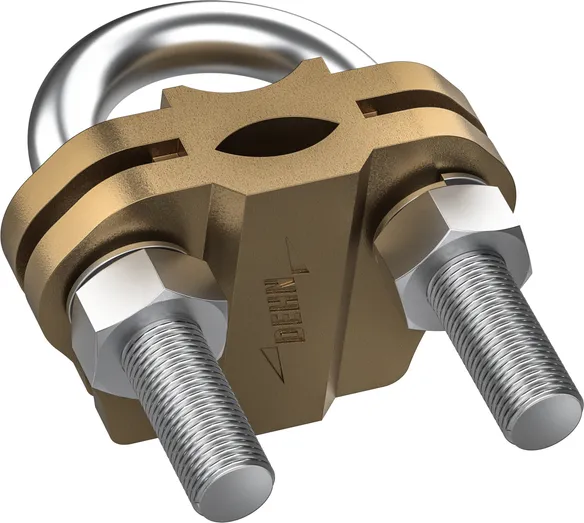

Part No. 138172 UBC ERRBSC 12.20/150.300 HCA

GTIN 4013364519121, Customs tariff No. (EU): 85389000, Gross weight: 270.00 g, PU: 6.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 20 mm / 150 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 20 mm / 150 - 300 mm²
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 75 x 60 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138172 was added to Notepad.

Go to Notepad

Product 138172 was added to the cart.

Go to Web-Shop

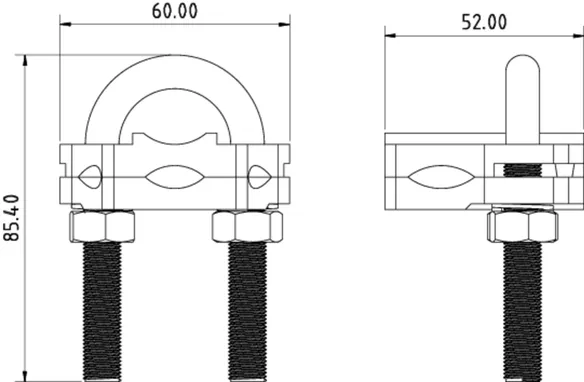

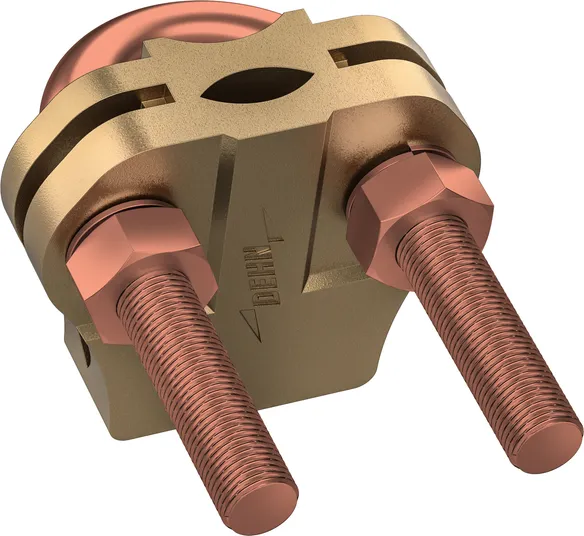

Part No. 138177 UBC ERRBSC 12.25/70.300 HCA CU

GTIN 4013364519138, Customs tariff No. (EU): 85389000, Gross weight: 370.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Earth Rod Material Copper, Copper Bonded Steel, Stainless Steel
Clamping range Rod / Stranded cable 14.2 - 25 mm / 70 - 300 mm²
Clamping range Rebar / Stranded cable 12 - 25 mm / 70 - 300 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138177 was added to Notepad.

Go to Notepad

Product 138177 was added to the cart.

Go to Web-Shop

Rebar to Rebar

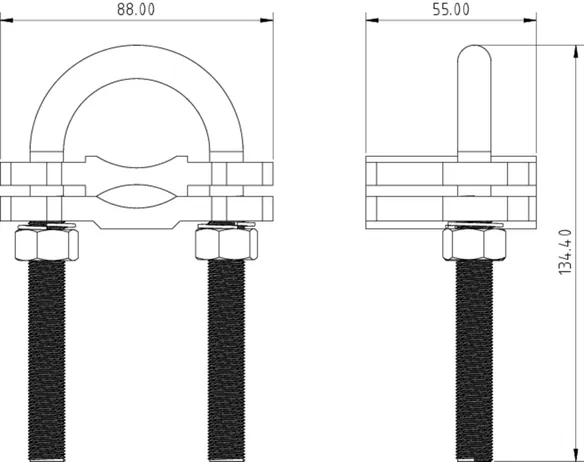

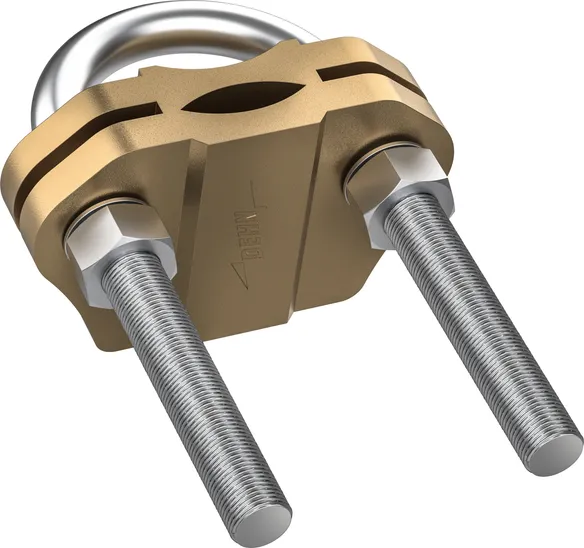

138179 is expected to be available for delivery in Q2/2025!

4 Products

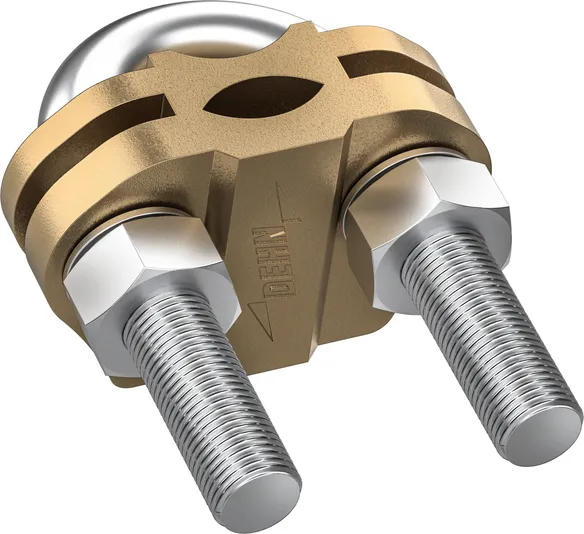

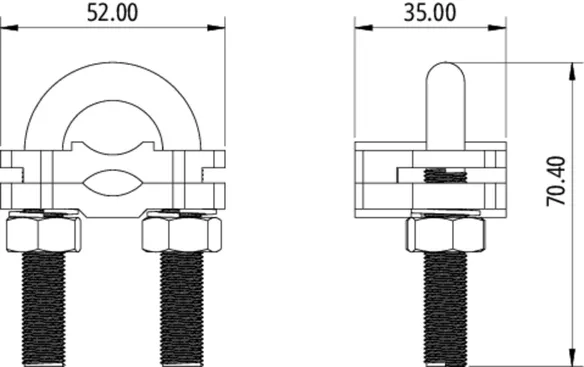

Part No. 138174 UBC RB 12.16/12.16 HCA

GTIN 4013364519152, Customs tariff No. (EU): 85389000, Gross weight: 230.00 g, PU: 6.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Rebar
Clamping range Rebar / Rebar 12 - 16 / 12 - 16 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 70.4 x 52 x 35 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138174 was added to Notepad.

Go to Notepad

Product 138174 was added to the cart.

Go to Web-Shop

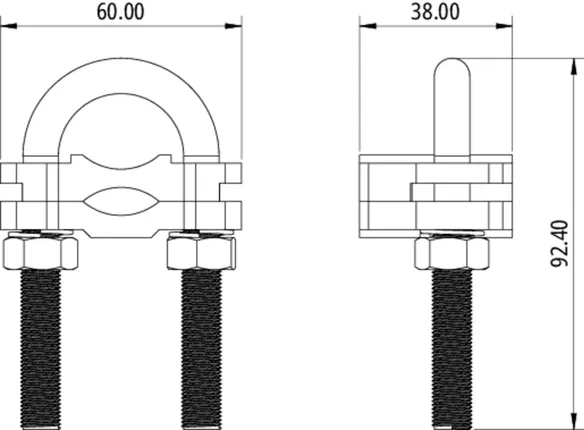

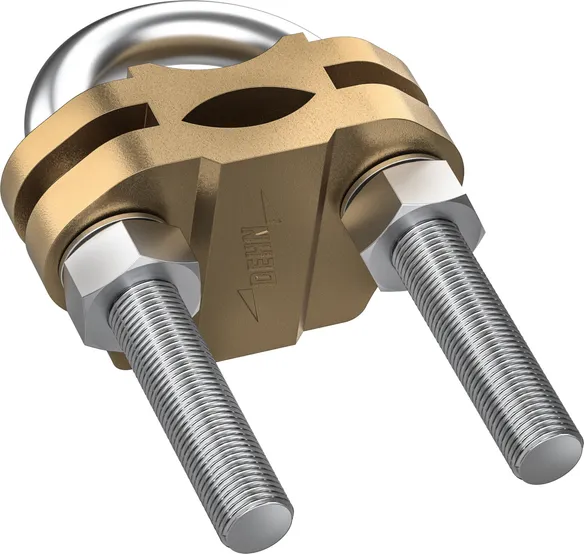

Part No. 138176 UBC RB 16.25/16.25 HCA

GTIN 4013364519169, Customs tariff No. (EU): 85389000, Gross weight: 300.00 g, PU: 6.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Rebar
Clamping range Rebar / Rebar 16 - 25 / 16 - 25 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 92.4 x 60 x 38 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138176 was added to Notepad.

Go to Notepad

Product 138176 was added to the cart.

Go to Web-Shop

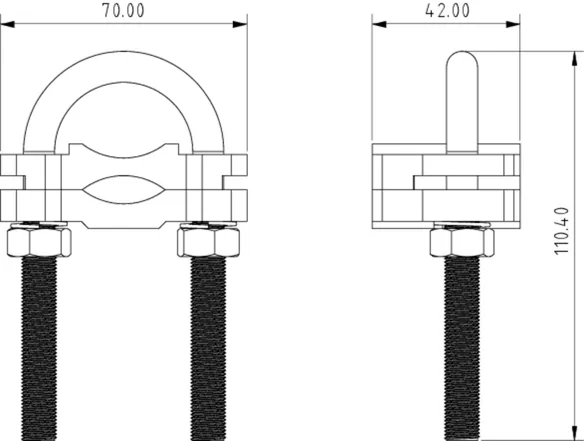

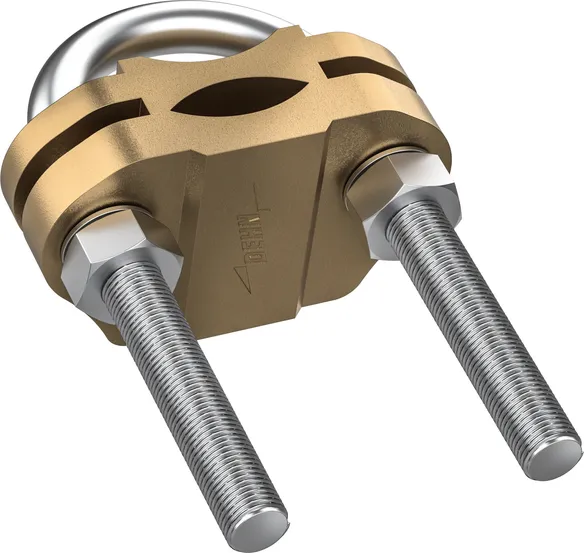

Part No. 138178 UBC RB 25.32/25.32 HCA

GTIN 4013364519176, Customs tariff No. (EU): 85389000, Gross weight: 440.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Rebar
Clamping range Rebar / Rebar 25 - 32 / 25 - 32 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 110 x 70 x 42 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138178 was added to Notepad.

Go to Notepad

Product 138178 was added to the cart.

Go to Web-Shop

Part No. 138179 UBC RB 32.42/32.42 HCA

GTIN 4013364519183, Customs tariff No. (EU): 85389000, Gross weight: 730.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Rebar
Clamping range Rebar / Rebar 32 - 42 / 32 - 42 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M12
Material of Clamp Fixings Stainless Steel
Tightening Torque 20 Nm
Dimensions (l x w x h) 135 x 88 x 55 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138179 was added to Notepad.

Go to Notepad

Product 138179 was added to the cart.

Go to Web-Shop

Mulitpurpose Rebar Clamps, Stainless Steel

138187 is expected to be available for delivery in Q2/2025!

3 Products

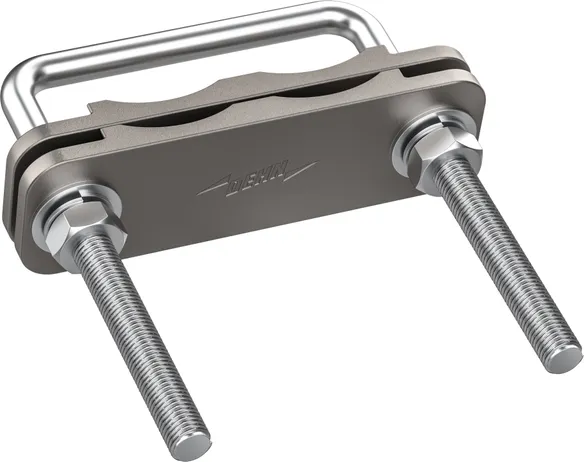

Part No. 138185 MUBC RBFLSC 12.20/25.40x3.6/50.300 STST

GTIN 4013364517646, Customs tariff No. (EU): 85389000, Gross weight: 260.00 g, PU: 4.00 pc(s)

Images

Additional information



Technical data

Material Stainless Steel
Conductor Material Copper, Stainless Steel, Galvanised Steel
Clamping range Rebar / Fl 12 - 20 mm / W (25 - 40) x T (3 - 6) mm
Clamping range Rebar / Stranded cable 12 - 20 mm / 50 - 300 mm²
Clamping range Rebar / Rebar 12 - 20 mm / 12 - 20 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 95 x 30 x 103 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138185 was added to Notepad.

Go to Notepad

Product 138185 was added to the cart.

Go to Web-Shop

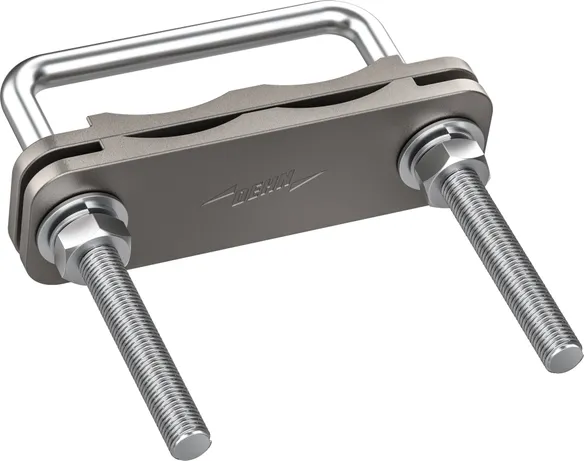

Part No. 138186 MUBC RBFLSC 16.25/25.40X3.6/50.300 STST

GTIN 4013364528246, Customs tariff No. (EU): 85389000, Gross weight: 260.00 g, PU: 4.00 pc(s)

Images

Additional information



Technical data

Material Stainless Steel
Conductor Material Copper, Stainless Steel, Galvanised Steel
Clamping range Rebar / Fl 16 - 25 mm / W (25 - 40) x T (3 - 6) mm
Clamping range Rebar / Stranded cable 16 - 25 mm / 50 - 300 mm²
Clamping range Rebar / Rebar 16 - 25 mm / 16 - 25 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 95 x 30 x 103 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138186 was added to Notepad.

Go to Notepad

Product 138186 was added to the cart.

Go to Web-Shop

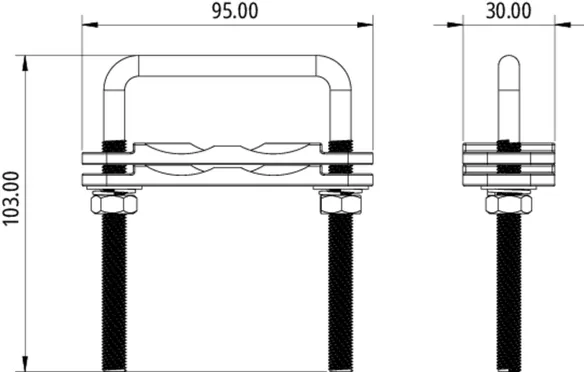

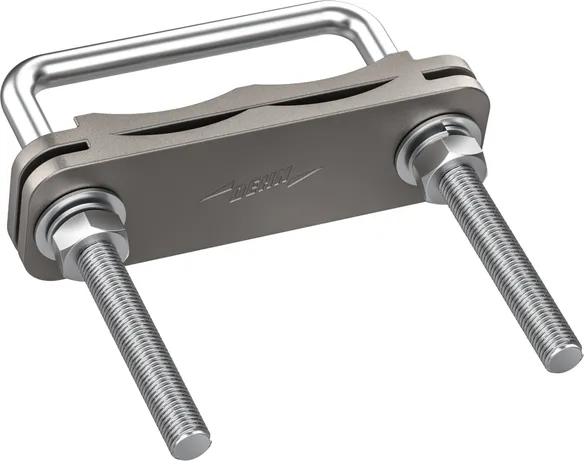

Part No. 138187 MUBC RBFLSC 22.32/25.40x3.6/50.300 STST

GTIN 4013364517653, Customs tariff No. (EU): 85389000, Gross weight: 268.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material Stainless Steel
Conductor Material Copper, Stainless Steel, Galvanised Steel
Clamping range Rebar / Fl 22 - 32 mm / W (25 - 40) x T (3 - 6) mm
Clamping range Rebar / Stranded cable 22 - 32 mm / 50 - 300 mm²
Clamping range Rebar / Rebar 22 - 32 mm / 22 - 32 mm
Material of U-Bolt Stainless Steel
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Stainless Steel
Tightening Torque 15 Nm
Dimensions (l x w x h) 95 x 30 x 103 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138187 was added to Notepad.

Go to Notepad

Product 138187 was added to the cart.

Go to Web-Shop

Multipurpose Rebar Clamp

Expected to be available for delivery in Q2/2025!

1 Product

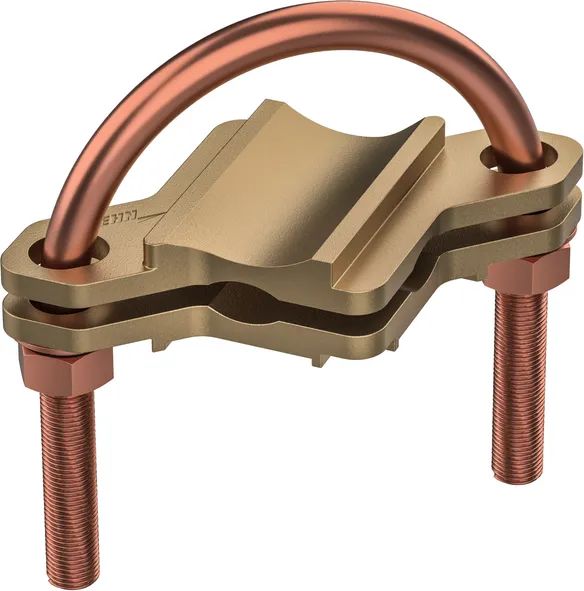

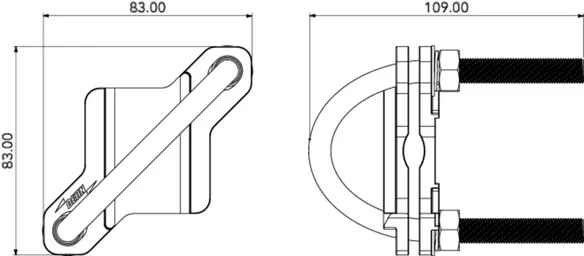

Part No. 138173 UBC FLERRBSC 25X3.6/25.40/50.185 HCA CU

GTIN 4013364535008, Gross weight: 470.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

Material High Copper Alloy
Conductor Material Copper
Clamping range Fl / Rod 25 x 3 / 25 - 40 mm
Clamping range Rod / Stranded cable 25 - 40 mm / 50 - 185 mm²
Clamping range Fl / Rebar 25 x 3 / 25 - 40 mm
Clamping range Rebar / Stranded cable 25 - 40 mm / 50 - 185 mm²
Material of U-Bolt Copper
Clamp Fixings Nut & Washer M10
Material of Clamp Fixings Copper
Tightening Torque 20 Nm
Dimensions (l x w x h) 83 x 83 x 110 mm
Standards IEC / EN / BS EN 62561-1
Classification Class H
Lightning current carrying capability (10/350 μs) =

Product 138173 was added to Notepad.

Go to Notepad

Product 138173 was added to the cart.

Go to Web-Shop
back to top
