Short-Circuiting Bar

  • Simply compile the right short circuit bar online
  • Individual configuration
  • Permanent plausibility check in the background
  • With longitudinal slot for reliable contact
  • High short-circuit current strength up to max. 130 kA / 0.5 s for low-voltage systems (LV) and 80 kA / 0.5 s for medium-voltage systems (MV)
  • For use with earthing sticks for hexagon or T pin shafts
  • Short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator

Details

lorem ipsum

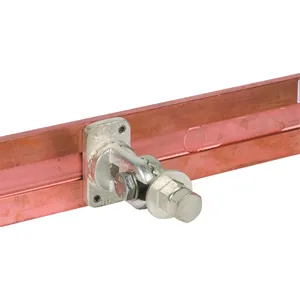

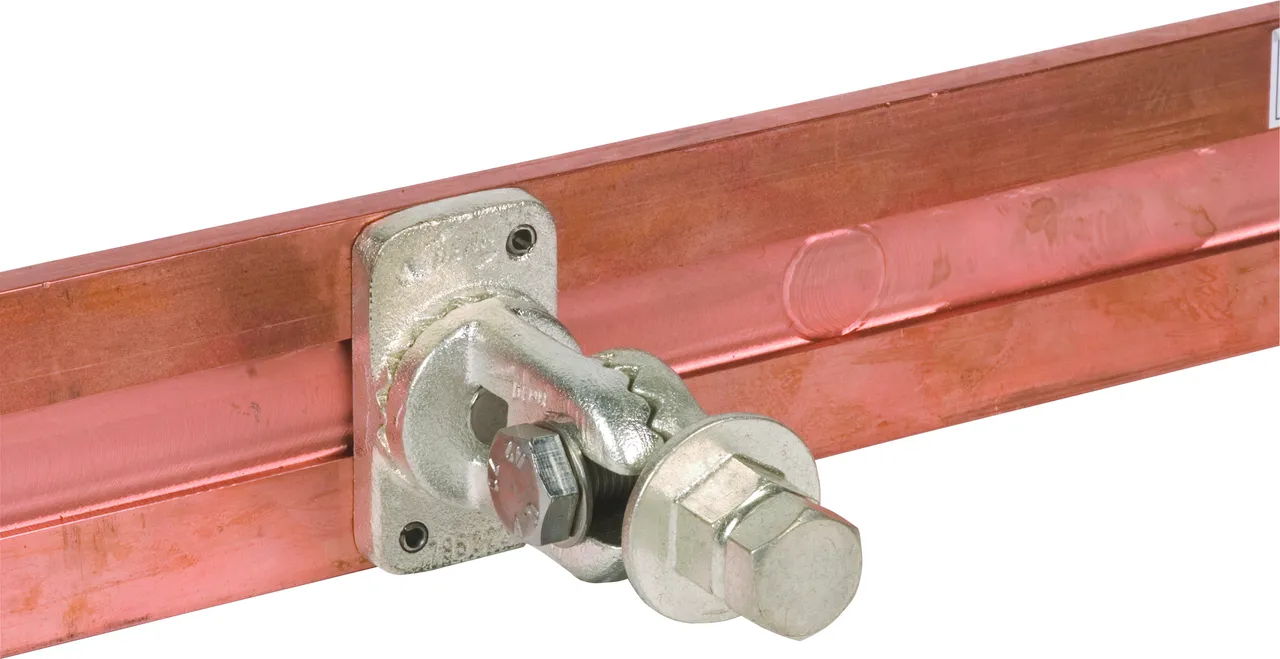

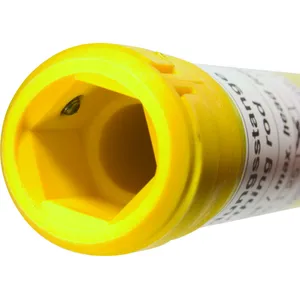

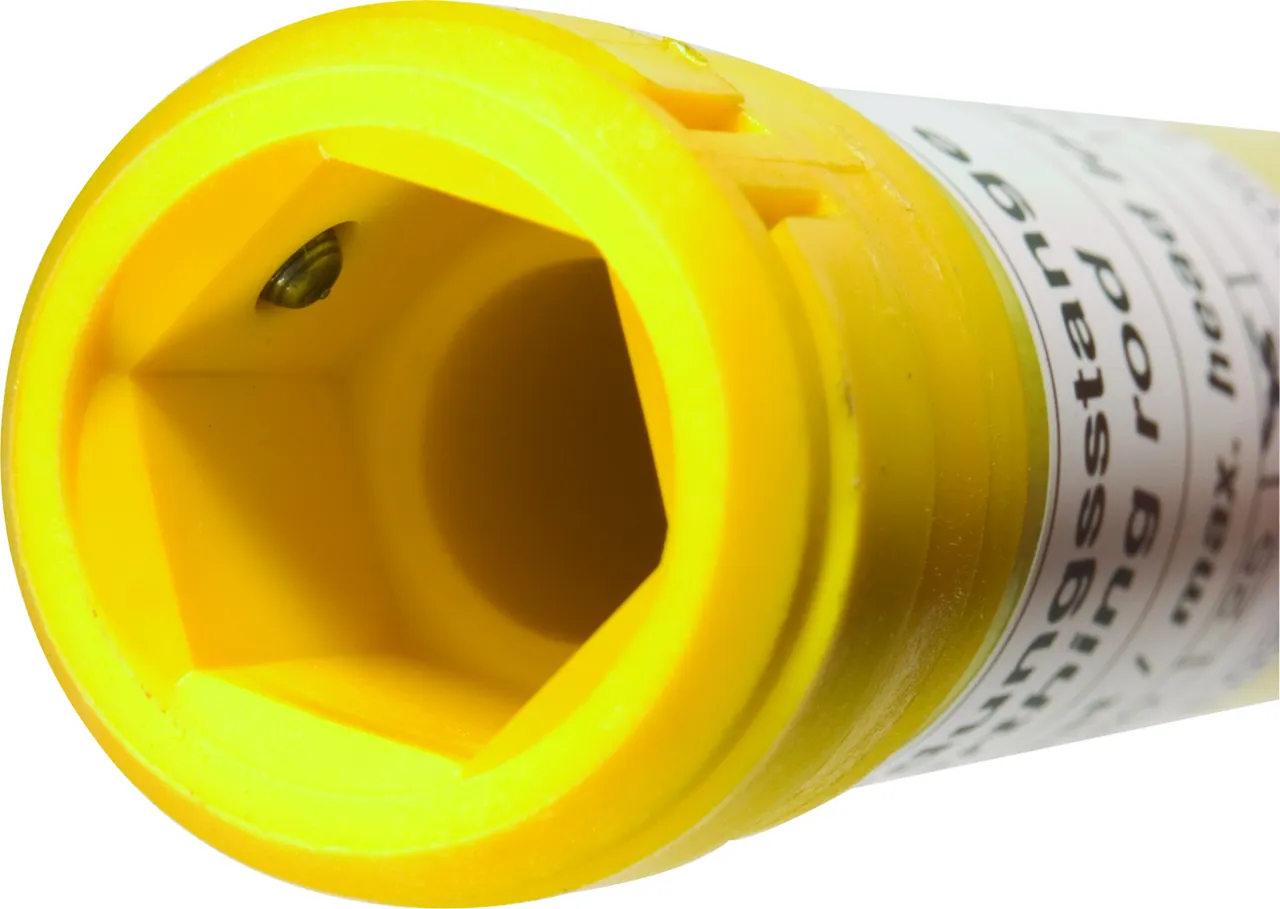

SK: Hexagon shaft.
lorem ipsum

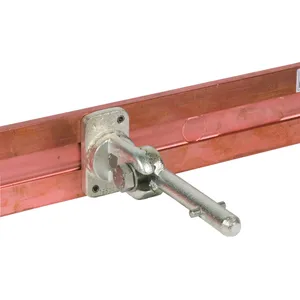

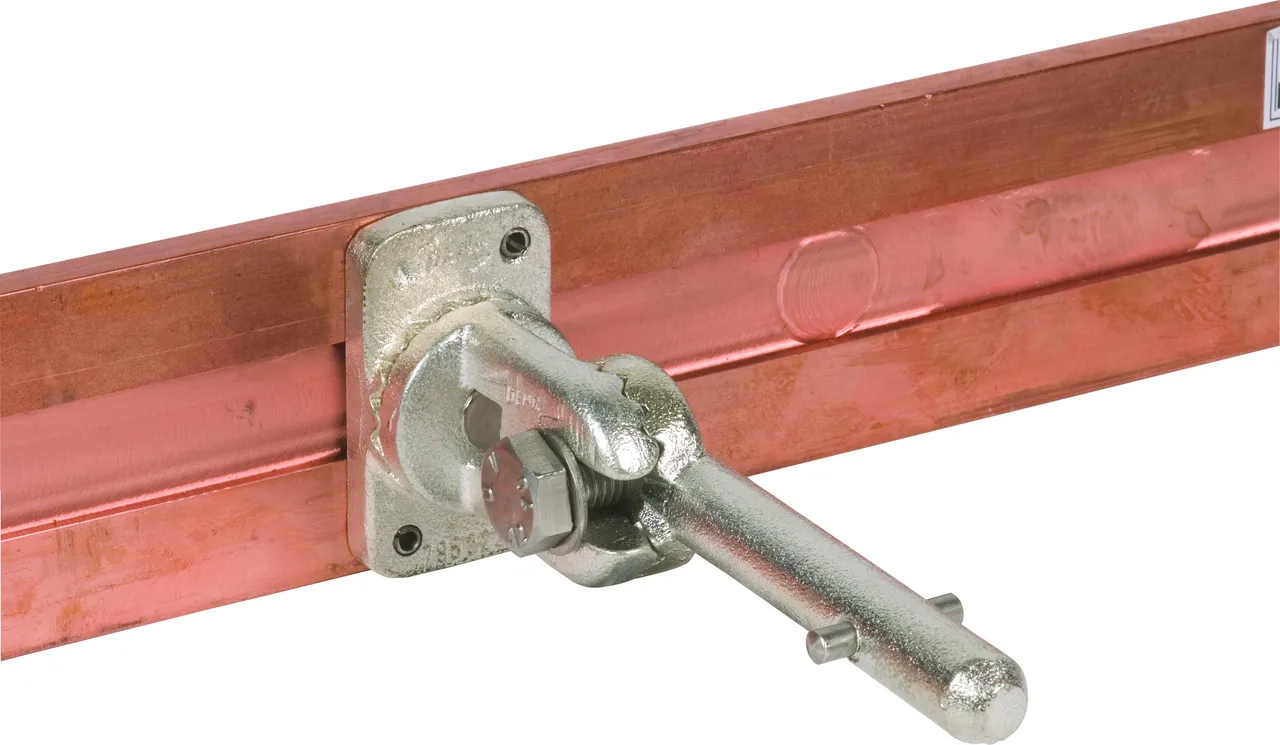

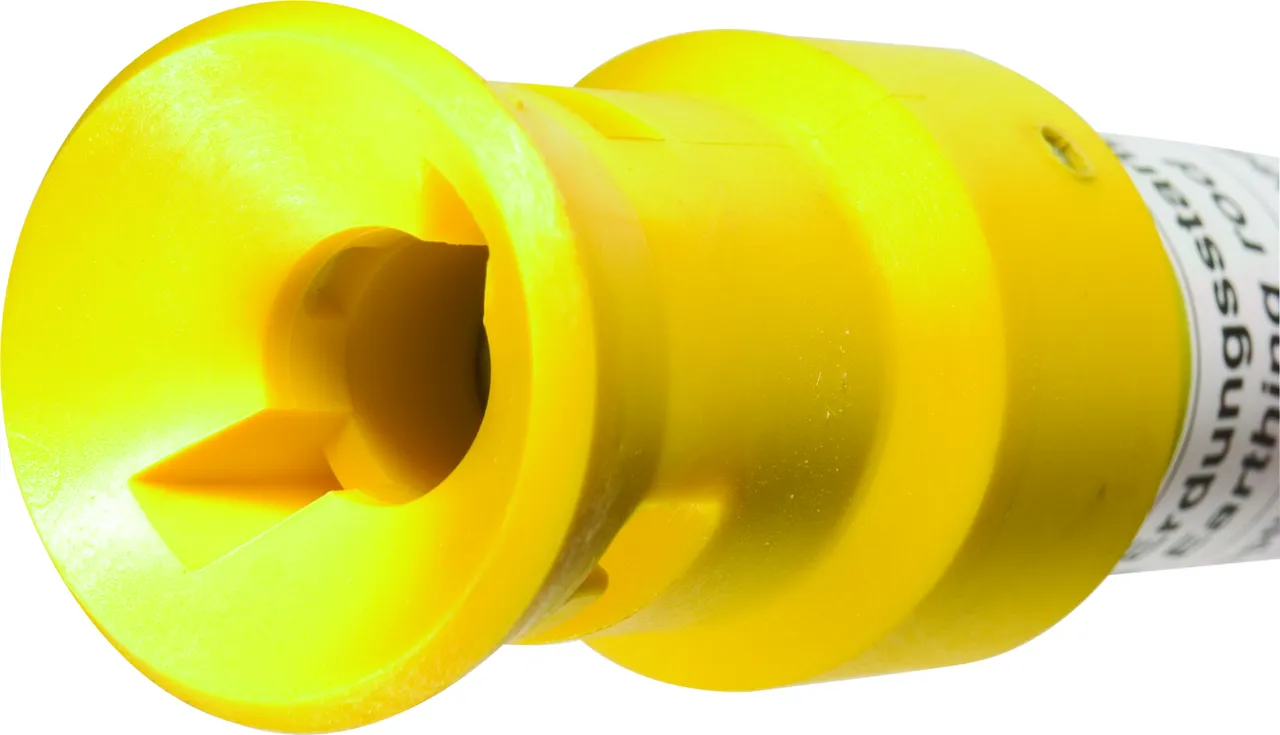

SQ: T pin shaft (bayonet locking mechanism).
lorem ipsum
lorem ipsum

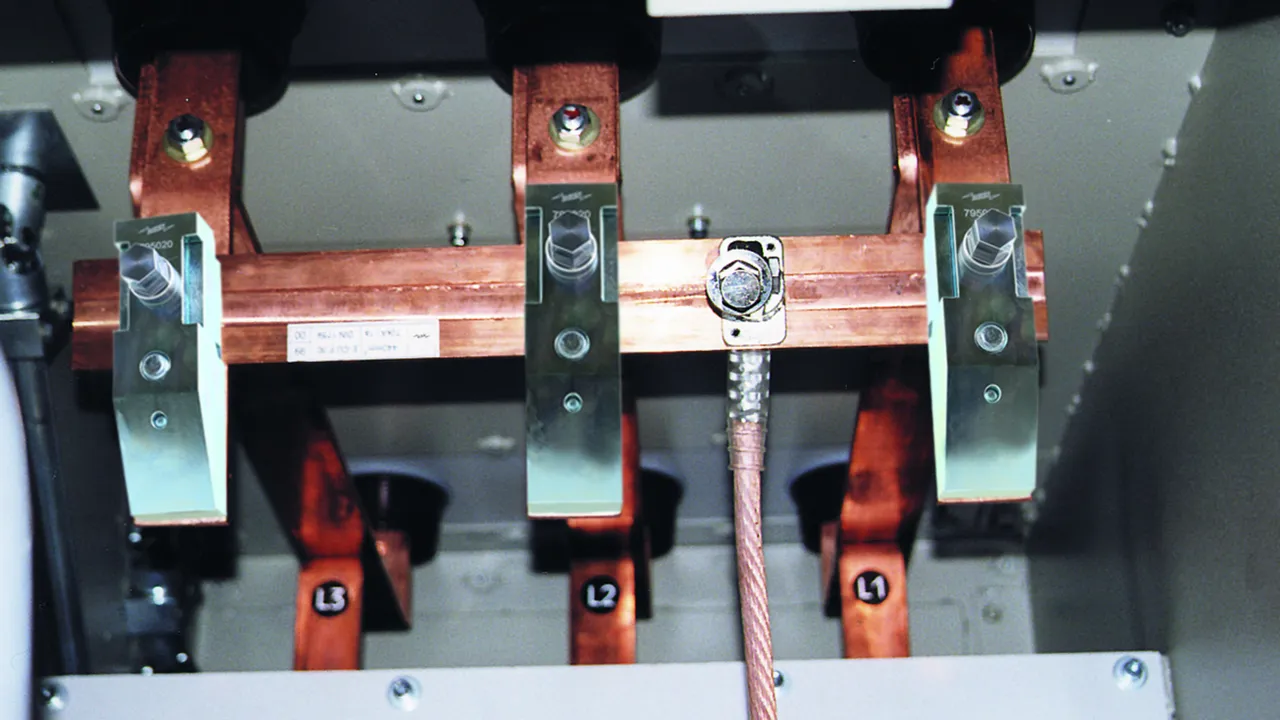

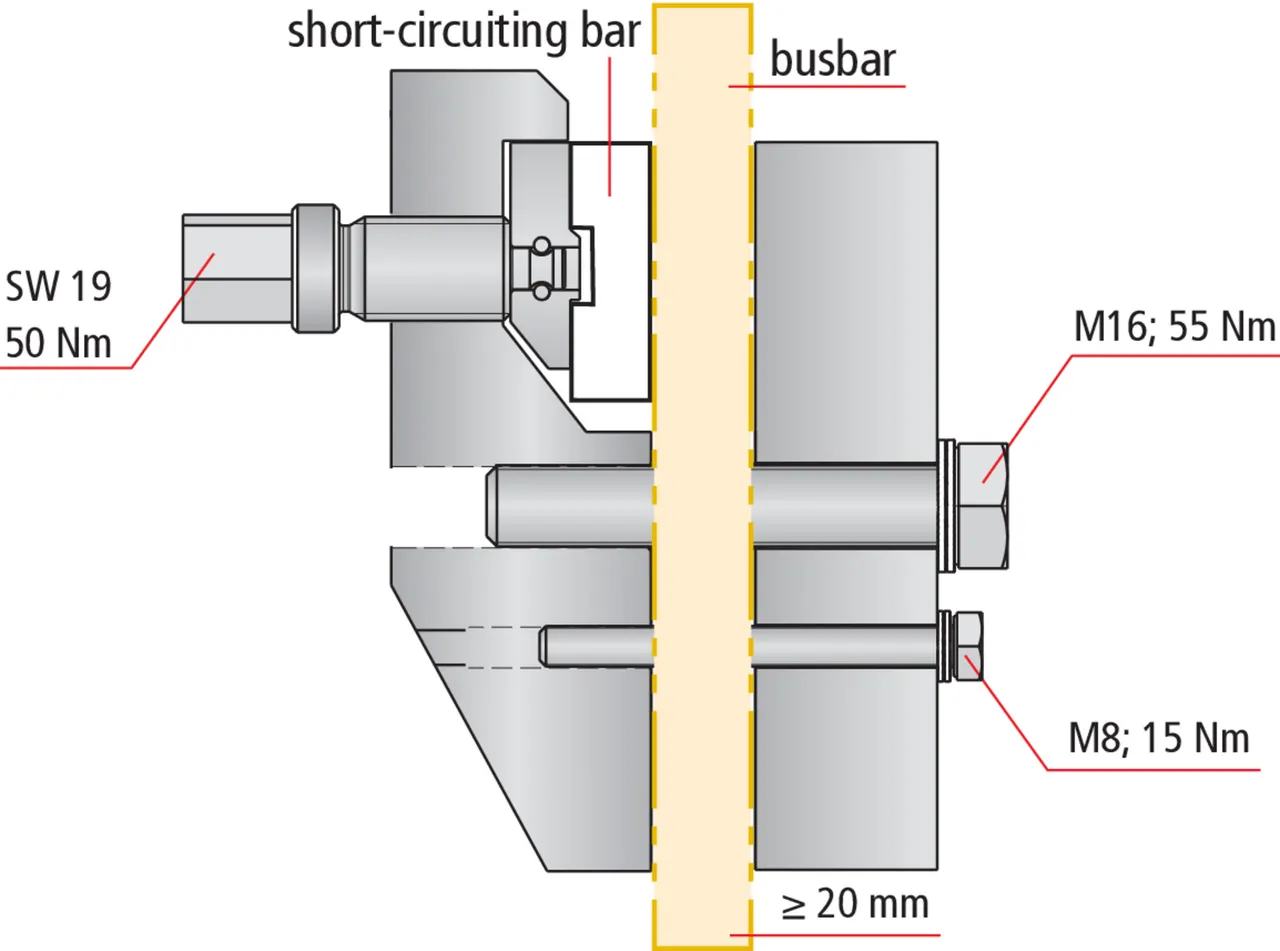

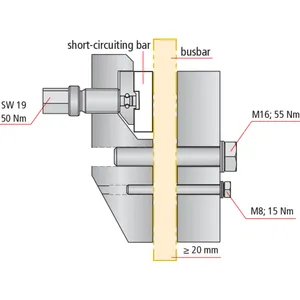

Fixed clamping point mounted on busbar and inserted short-circuiting bar
lorem ipsum

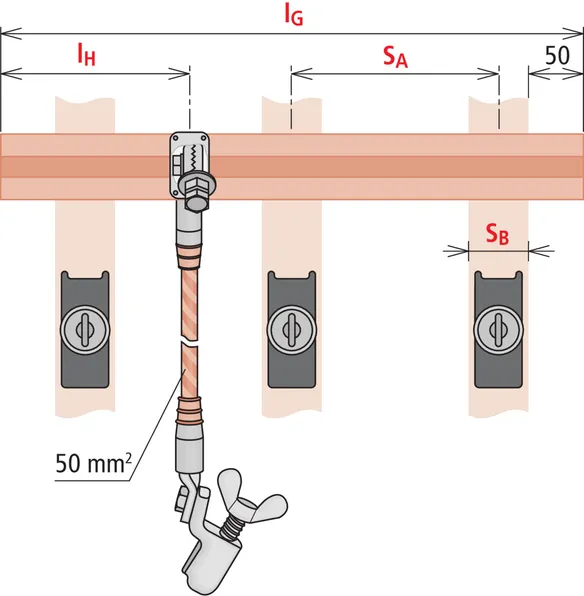

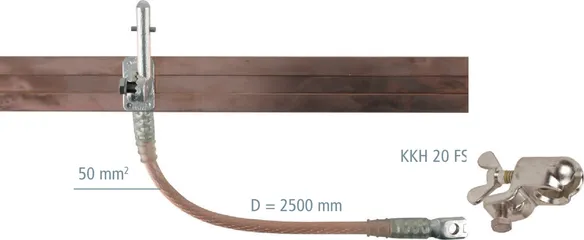

Short-Circuiting Bar made of Copper

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Products

Part No. VL2FG28 KS SQ C NS VL2FG28

GTIN 4013364450820, Customs tariff No. (EU): 85359000, Gross weight: 6.18 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application LV
Coupling mechanism SQ
Position of the coupling mechanism (IH ) 175 mm
Total length (lG ) 500 mm
Bar spacing (SA ) 150 mm
Max. short-circuit current Ik 0.5 s 130 kA
Max. short-circuit current Ik 1 s 90 kA
Note: When ordering please specify the relevant Variant No.

Product VL2FG28 was added to Notepad.

Go to Notepad

Product VL2FG28 was added to the cart.

Go to Web-Shop

Part No. VHNEFQE KS SK C NS VHNEFQE

GTIN 4013364450837, Customs tariff No. (EU): 85359000, Gross weight: 6.14 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application LV
Coupling mechanism SK
Position of the coupling mechanism (IH ) 175 mm
Total length (lG ) 500 mm
Bar spacing (SA ) 150 mm
Max. short-circuit current Ik 0.5 s 130 kA
Max. short-circuit current Ik 1 s 90 kA
Note: When ordering please specify the relevant Variant No.

Product VHNEFQE was added to Notepad.

Go to Notepad

Product VHNEFQE was added to the cart.

Go to Web-Shop

Part No. VV7M6CQ KSX SQ C MS VV7M6CQ

GTIN 4013364461963, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application MV
Coupling mechanism SQ
Position of the coupling mechanism (IH ) 525 mm
Total length (lG ) 1500 mm
Bar spacing (SA ) 450 mm
Max. short-circuit current Ik 0.5 s 80 kA
Max. short-circuit current Ik 1 s 80 kA
Note: When ordering please specify the relevant Variant No.

Product VV7M6CQ was added to Notepad.

Go to Notepad

Product VV7M6CQ was added to the cart.

Go to Web-Shop

Part No. V5DHK24 KSX SK C MS V5DHK24

GTIN 4013364461970, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application MV
Coupling mechanism SK
Position of the coupling mechanism (IH ) 525 mm
Total length (lG ) 1500 mm
Bar spacing (SA ) 450 mm
Max. short-circuit current Ik 0.5 s 80 kA
Max. short-circuit current Ik 1 s 80 kA
Note: When ordering please specify the relevant Variant No.

Product V5DHK24 was added to Notepad.

Go to Notepad

Product V5DHK24 was added to the cart.

Go to Web-Shop

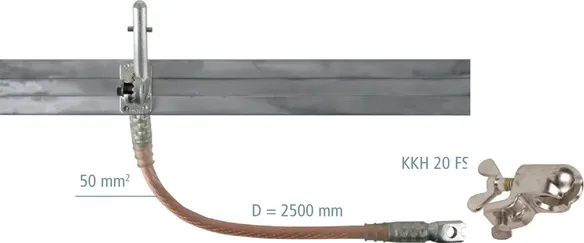

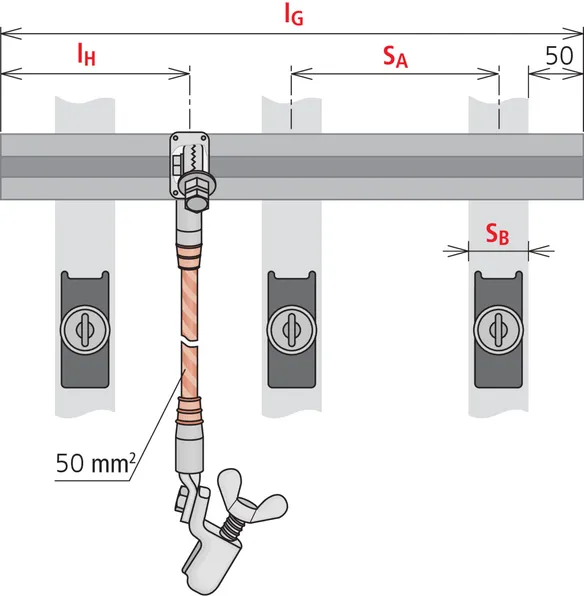

Short-Circuiting Bar made of Aluminium

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Products

Part No. VNRLBXU KS SQ A NS VNRLBXU

GTIN 4013364450868, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application LV
Coupling mechanism SQ
Position of the coupling mechanism (IH ) 175 mm
Total length (lG ) 500 mm
Bar spacing (SA ) 150 mm
Max. short-circuit current Ik 0.5 s 90 kA
Max. short-circuit current Ik 1 s 64 kA
Important: Please state the unique Variant No. when ordering.
Note: Other types can be configured online via the earthing and short-circuiting configurator

Product VNRLBXU was added to Notepad.

Go to Notepad

Product VNRLBXU was added to the cart.

Go to Web-Shop

Part No. VP33XYL KS SK A NS VP33XYL

GTIN 4013364450875, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application LV
Coupling mechanism SK
Position of the coupling mechanism (IH ) 175 mm
Total length (lG ) 500 mm
Bar spacing (SA ) 150 mm
Max. short-circuit current Ik 0.5 s 90 kA
Max. short-circuit current Ik 1 s 64 kA
Important: Please state the unique Variant No. when ordering.
Note: Other types can be configured online via the earthing and short-circuiting configurator

Product VP33XYL was added to Notepad.

Go to Notepad

Product VP33XYL was added to the cart.

Go to Web-Shop

Part No. VSJ3Y6N KSX SQ A MS VSJ3Y6N

GTIN 4013364461994, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application MV
Coupling mechanism SQ
Position of the coupling mechanism (IH ) 675 mm
Total length (lG ) 1500 mm
Bar spacing (SA ) 450 mm
Max. short-circuit current Ik 0.5 s 60 kA
Max. short-circuit current Ik 1 s 60 kA
Important: Please state the unique Variant No. when ordering.
Note: Other types can be configured online via the earthing and short-circuiting configurator

Product VSJ3Y6N was added to Notepad.

Go to Notepad

Product VSJ3Y6N was added to the cart.

Go to Web-Shop

Part No. VANH53Y KSX SK A MS VANH53Y

GTIN 4013364461987, Customs tariff No. (EU): 85359000, Gross weight: 10.00 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Application MV
Coupling mechanism SK
Position of the coupling mechanism (IH ) 675 mm
Total length (lG ) 1500 mm
Bar spacing (SA ) 450 mm
Max. short-circuit current Ik 0.5 s 60 kA
Max. short-circuit current Ik 1 s 60 kA
Important: Please state the unique Variant No. when ordering.
Note: Other types can be configured online via the earthing and short-circuiting configurator

Product VANH53Y was added to Notepad.

Go to Notepad

Product VANH53Y was added to the cart.

Go to Web-Shop
